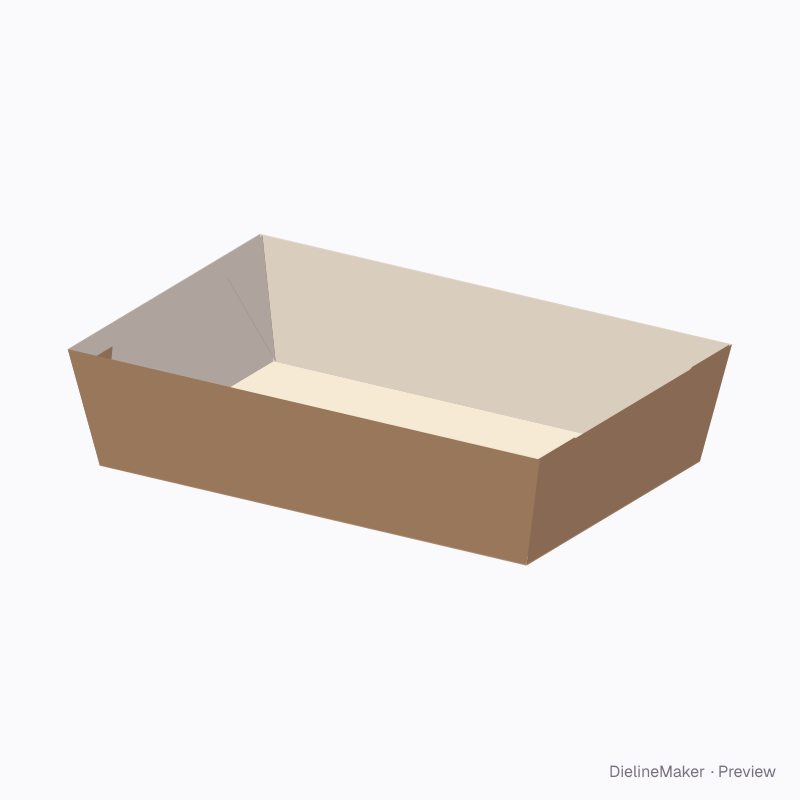

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA D20.20.21.00Trays & lids
ECMA D20.20.21.00 · Flared glued-web tray dieline
A flared paperboard tray whose glued corner webs have rounded free toes and recessed shoulders. A ready-sized preset of the flared tray with relieved corner webs — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 130 × 45 mm
Outside201 × 131 × 45.5 mm
Flat blank274.7 × 210.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA D20.20.21.00
- Inside size
- Length 200 · Width 130 · Height 45 mm
- Size range
- Length 60–280 · Width 40–200 · Height 25–90 mm
- Manufacturing
- 200.5 × 130.5 × 45.3 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.056 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- Food SBS PEFood kraft PESBS 350Kraft 350SBS 300SBS 18 pt
- Good for

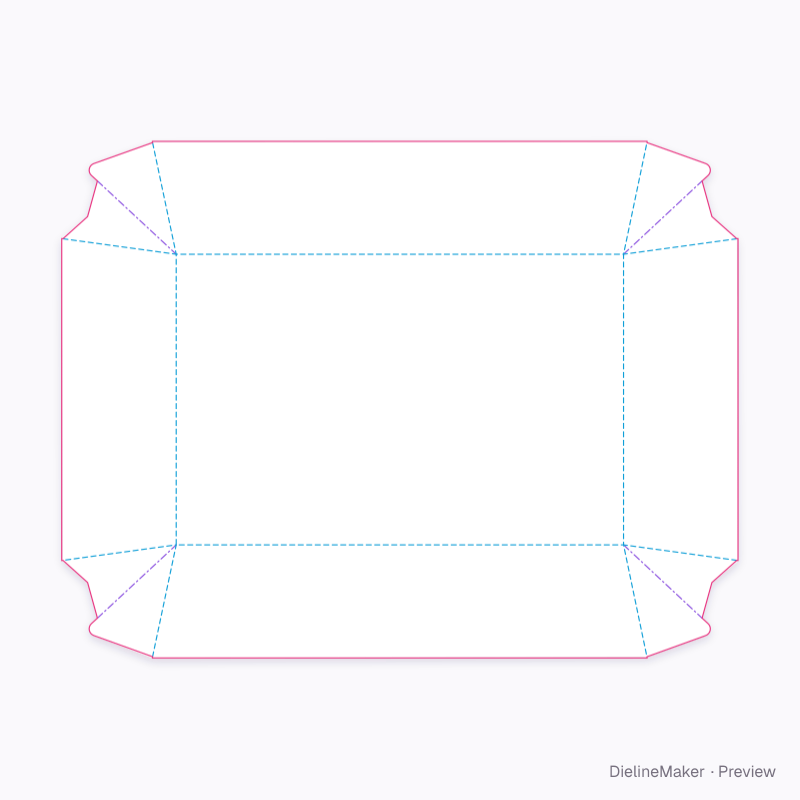

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- End rake°
- Side flare°
The flared tray with relieved corner webs family
The same structure with sizes, boards and options set for a use.
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this ecma d20.20.21.00 · flared glued-web tray yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
