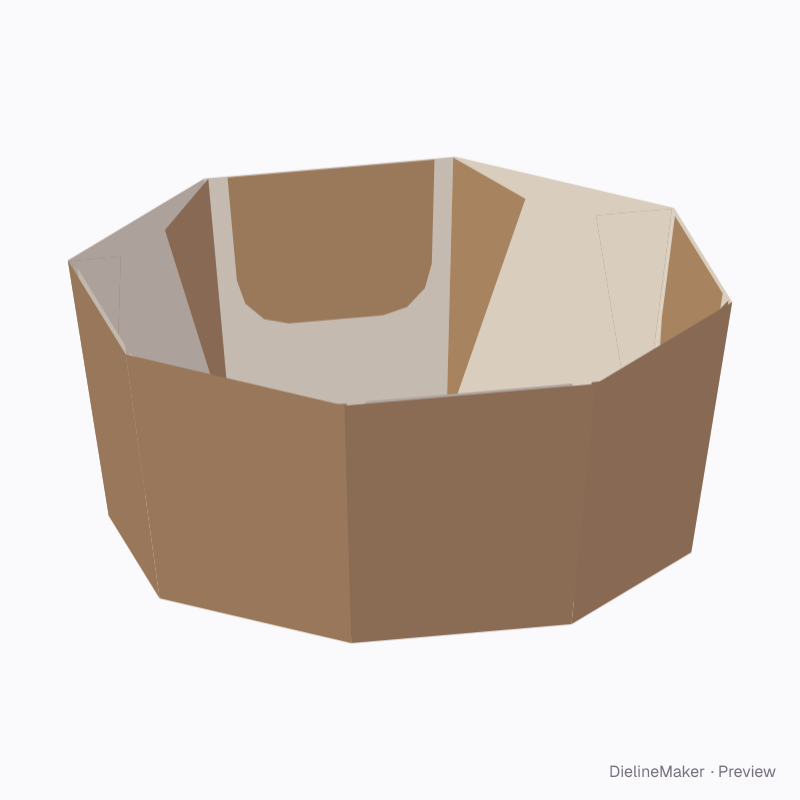

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F40.62.00.00Trays & lids
Octagonal beaker tray dieline
A flared eight-sided beaker with glued webbed corners and lock flaps on the corner walls. A ready-sized preset of the polygonal tray (bevelled / webbed) — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 120 × 60 mm
Outside136.9 × 136.9 × 60.1 mm
Flat blank241.2 × 241.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F40.62.00.00
- Inside size
- Length (A) 120 · Depth (B) 120 · Height 60 mm
- Size range
- Length (A) 40–500 · Depth (B) 40–500 · Height 10–200 mm
- Manufacturing
- 120 × 120 × 60 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.053 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350Food SBS PEFood kraft PEE-flute WSBS 18 pt
- Good for

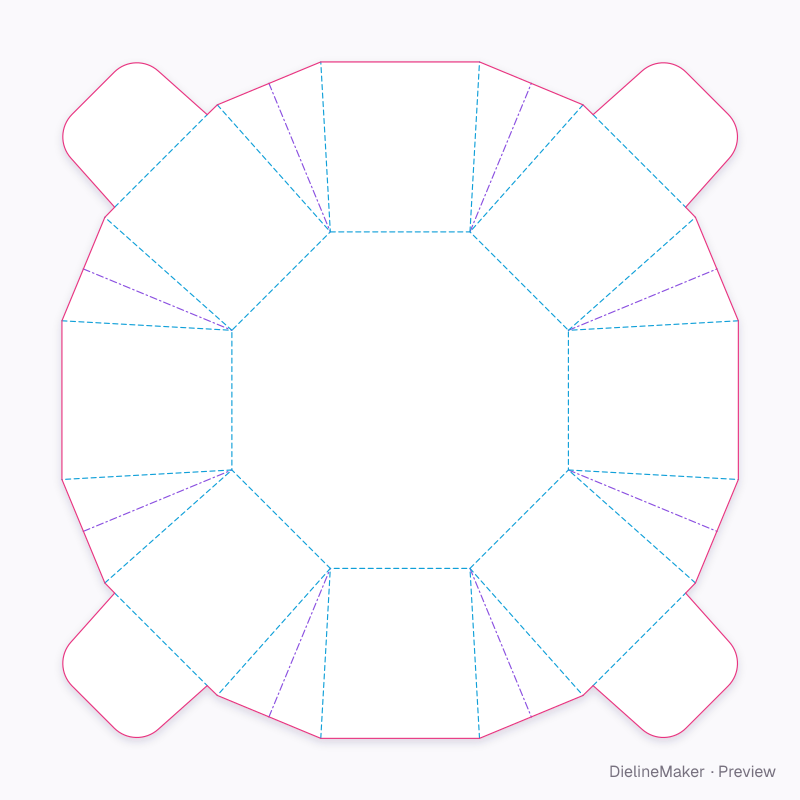

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Construction4 options
- Corner bevelmm
The polygonal tray (bevelled / webbed) family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this octagonal beaker tray yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
