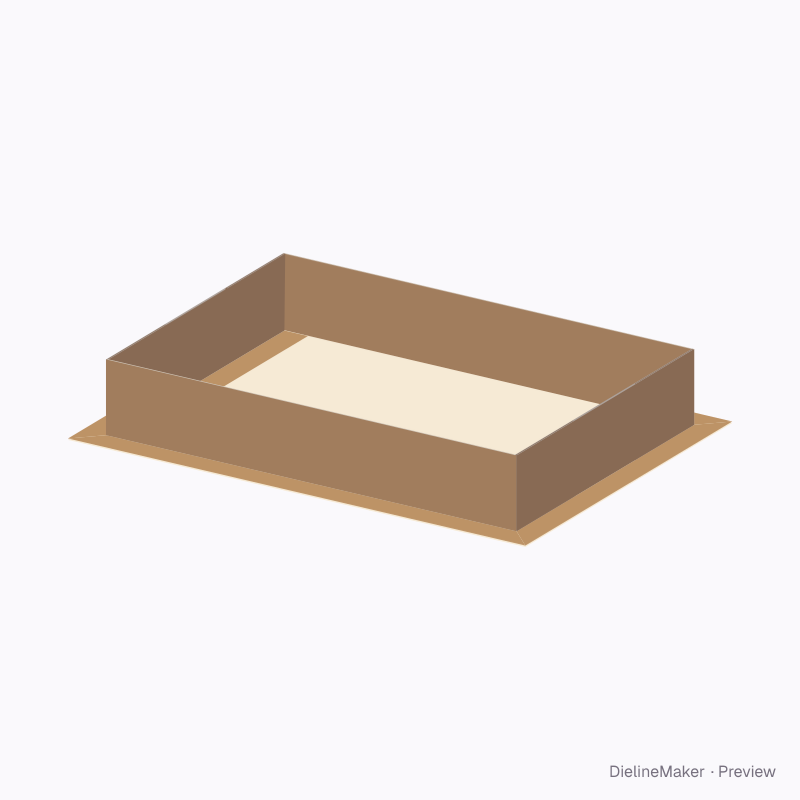

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA B32.02.00.00Trays & lids
Tray with integrated flanged base dieline
An oversized floor folds back at all four edges to create a projecting base beneath four double walls. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside260 × 180 × 45 mm
Outside292.9 × 212.1 × 45.4 mm
Flat blank531.3 × 452.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA B32.02.00.00
- Inside size
- Inside length 260 · Inside width 180 · Inside height 45 mm
- Size range
- Inside length 80–700 · Inside width 60–550 · Inside height 15–180 mm
- Manufacturing
- 262.9 × 182.1 × 44.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.191 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 300SBS 350FBB 400Kraft 350F-fluteSBS 18 pt
- Good for

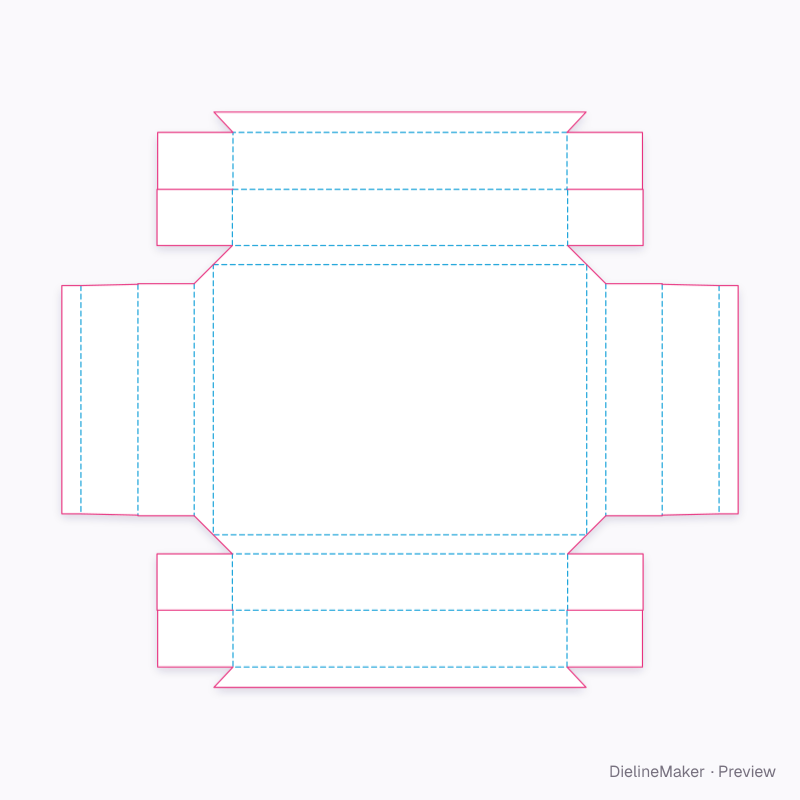

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA B32.02.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Oversized tray floor | 292.9 × 212.1 | – |
| Folded-back base border ×2 | 292.9 × 15 | – |
| Outer tray wall ×2 | 262.9 × 44.4 | – × H − 1.5T |
| Inner return wall ×2 | 262.1 × 44.8 | – × H − T/2 |
| Outward trapped base foot ×2 | 262.1 × 15.8 | – |
| Square trapped corner flap ×4 | 59.4 × 44.4 | – × H − 1.5T |
| Square trapped corner flap ×4 | 59.4 × 44.8 | – × H − T/2 |
| Folded-back base border ×2 | 15 × 212.1 | – |
| Outer tray wall ×2 | 44.4 × 182.1 | H − 1.5T × – |
| Inner return wall ×2 | 44.8 × 181.3 | H − T/2 × – |
| Inward floor seat ×2 | 15 × 179.6 | – × W − T |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Projecting base flangemm
Ready-sized tray with integrated flanged base presets
The same structure with sizes, boards and options set for a use.
- Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this tray with integrated flanged base yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
