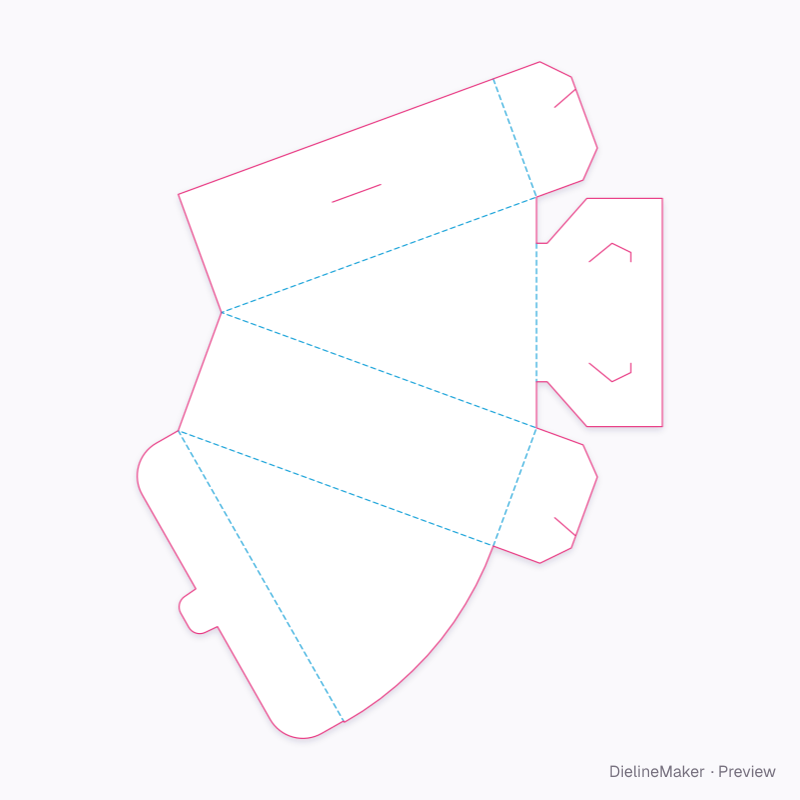

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F40.03.00.00Food
Cake-slice carton, rounded back dieline
Pie-slice carton whose back follows the cake’s rim, with glued corners. A ready-sized preset of the three-cornered hinged-lid carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside110 × 160 × 60 mm
Outside110.9 × 160.9 × 60.9 mm
Flat blank250.4 × 322.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F40.03.00.00
- Inside size
- Back width (A) 110 · Depth (B) 160 · Height 60 mm
- Size range
- Back width (A) 40–400 · Depth (B) 40–400 · Height 15–150 mm
- Manufacturing
- 110 × 160 × 60 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.051 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Food SBS, PE-coated 300 g · 0.45 mm caliper
- Board options
- SBS 350FBB 400Food SBS PEKraft 350GD2 350E-flute WSBS 18 pt
- Good for

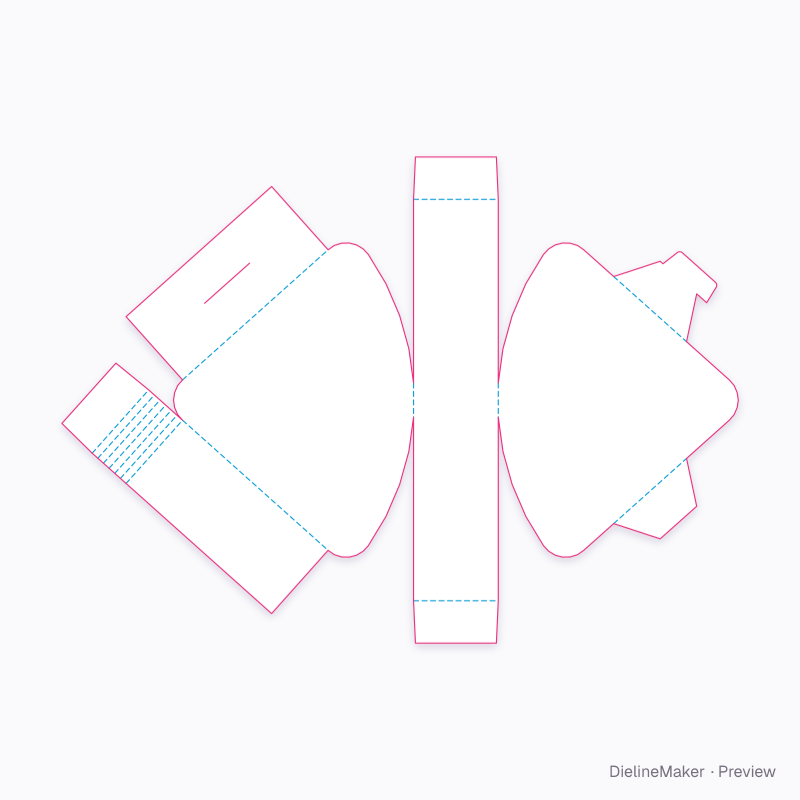

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F40.03.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.45 mm for Food SBS, PE-coated 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 150.2 × 110 | – × L |
| Side wall ×2 | 160 × 60 | W × H |
| Corner flap ×2 | 35.2 × 60 | – × H |
| Back panel | 60 × 66 | H × – |
| Lid | 160 × 103.3 | W × – |
| Lid flap | 42 × 159.2 | – |
