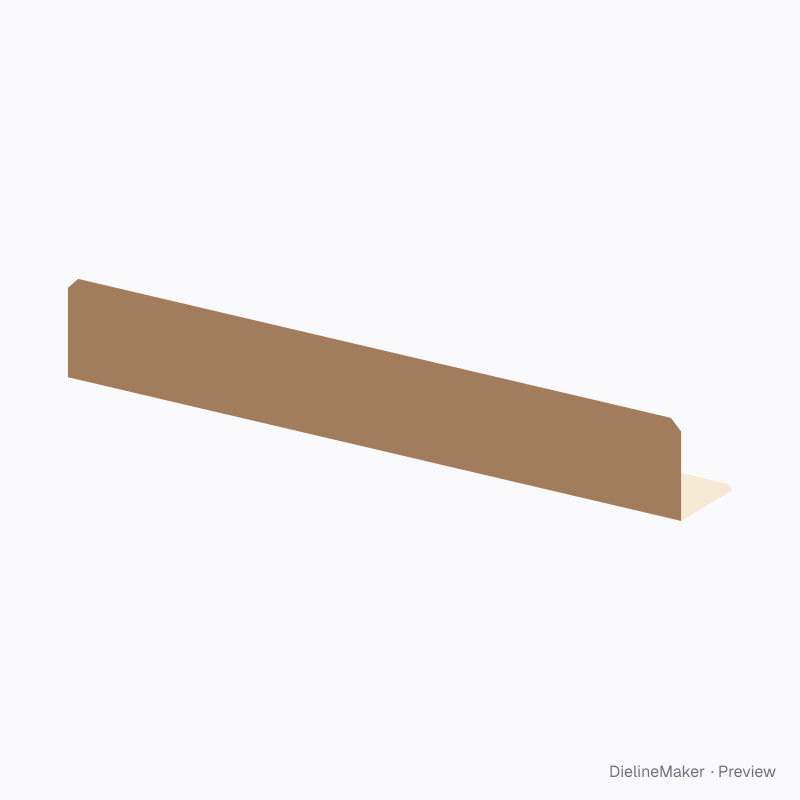

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-EDGE-GUARD-01Shipping
Folded edge protector dieline
A one-piece, right-angle guard with independently sized wings. Choose mixed corners for an upright divider with a continuous folded foot. A parametric template — change the length and two wing spans to redraw both panels and their shared crease.
Length / wing spans300 × 45 × 45 mm
Flat blank300 × 90 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-EDGE-GUARD-01
- Length / wing spans
- Length 300 · First wing 45 · Second wing 45 mm
- Size basis
- Flat length and nominal score-to-cut wings. Stock and fold determine the assembled envelope.
- Size range
- Length 60–1800 · First wing 20–200 · Second wing 20–200 mm
- Parts
- One blank
- Board area
- 0.027 m² · about 20 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KB-fluteE-flute W
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-EDGE-GUARD-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| First wing | 300 × 45 | L × – |
| Second wing | 300 × 45 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Free corners2 options
- End chamfermm

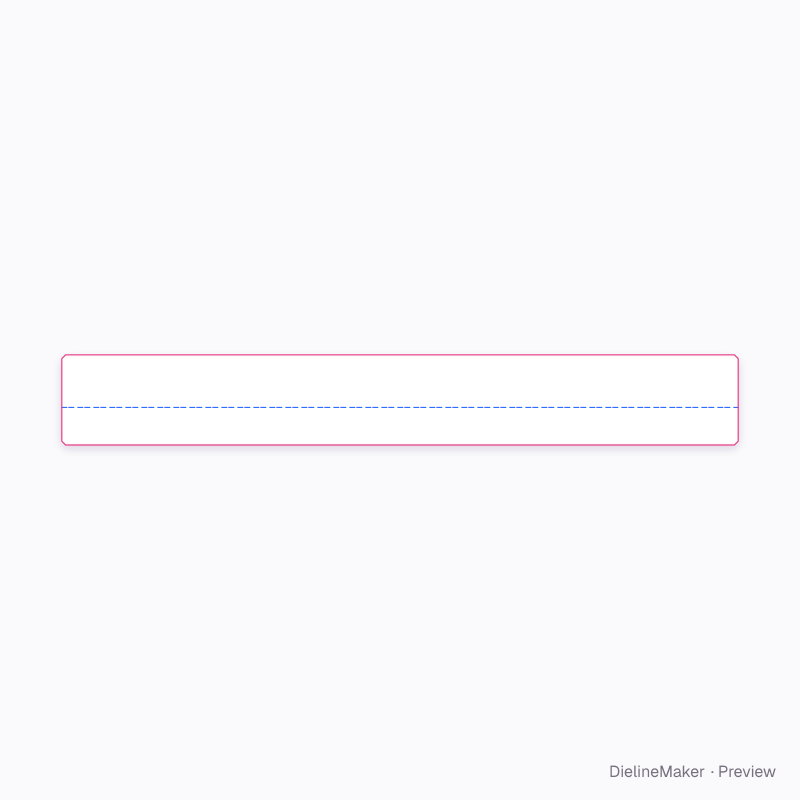

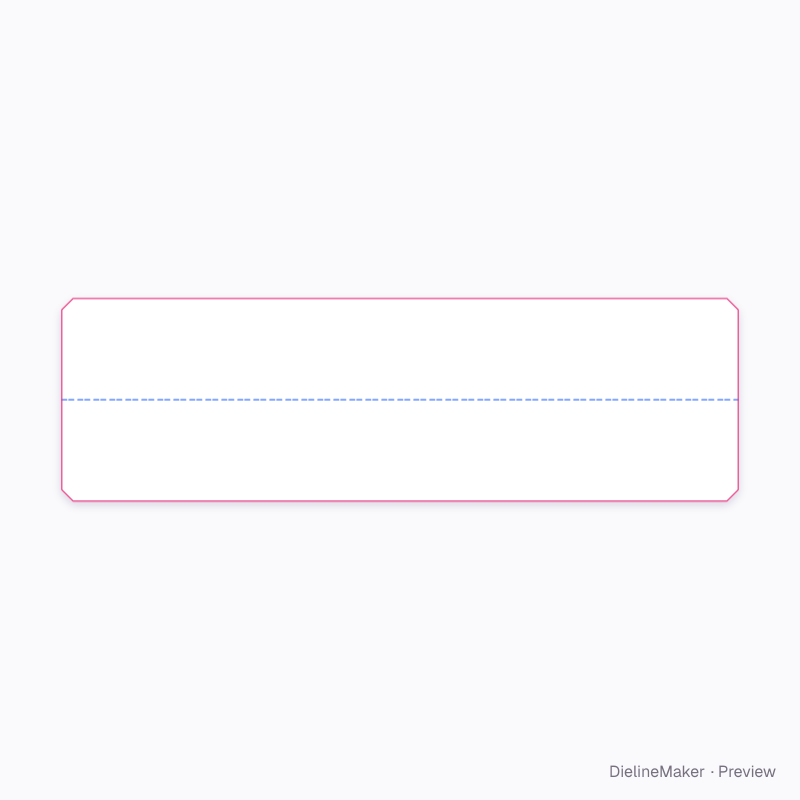

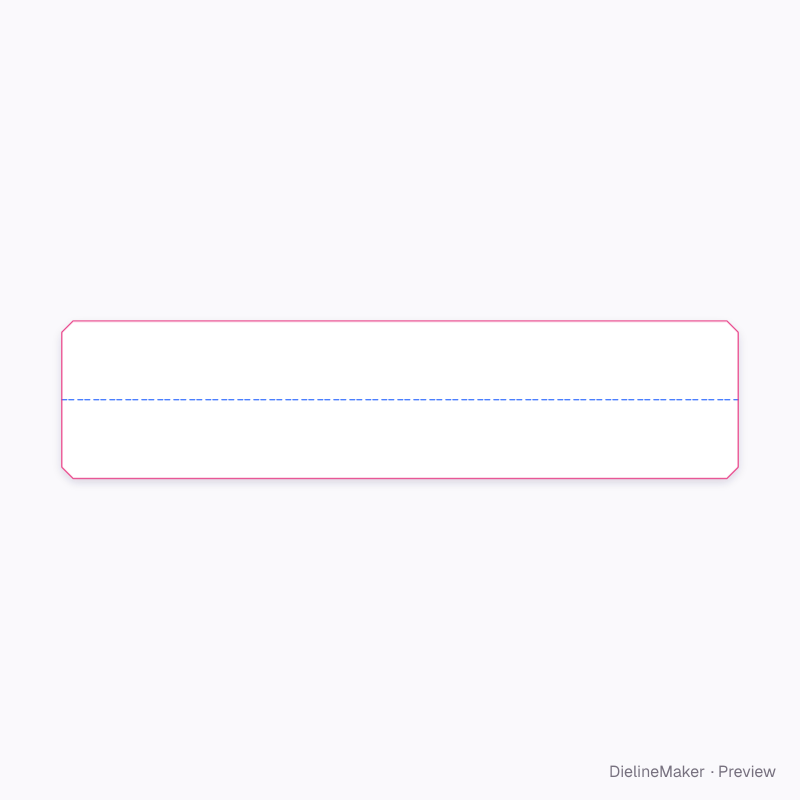

Ready-sized folded edge protector presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset

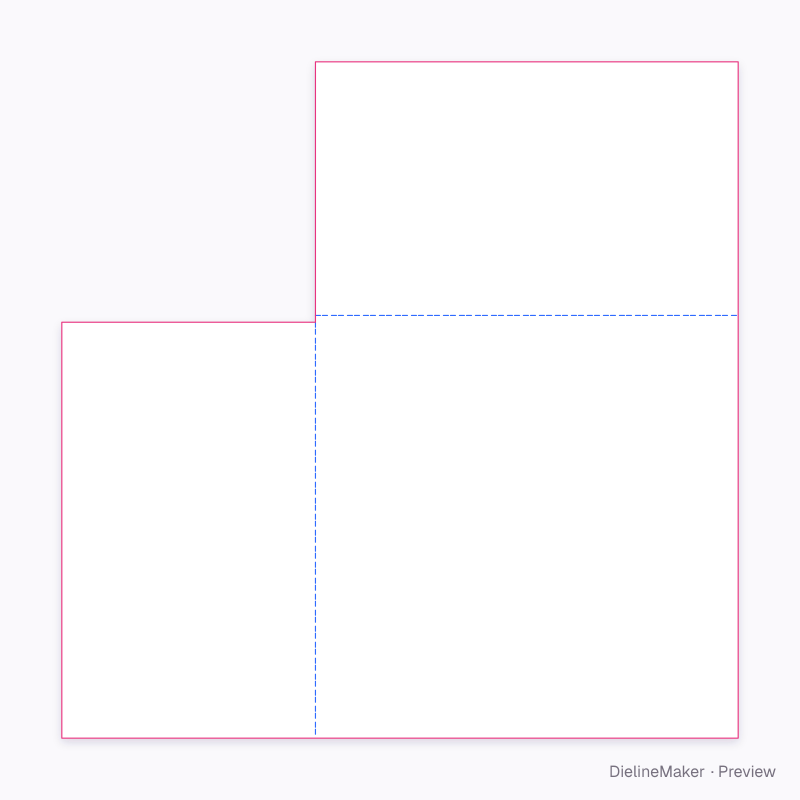

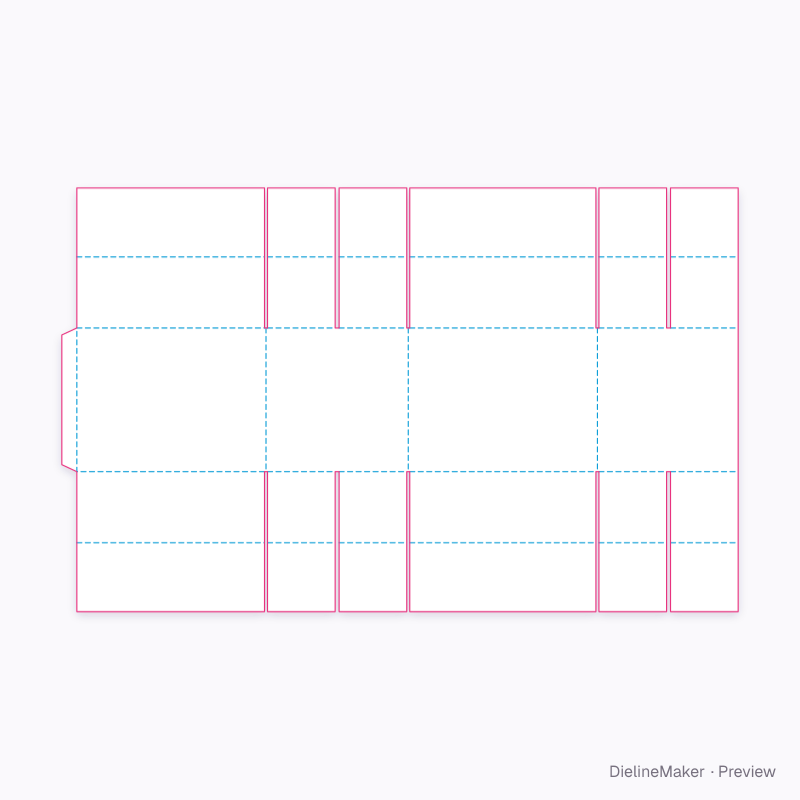

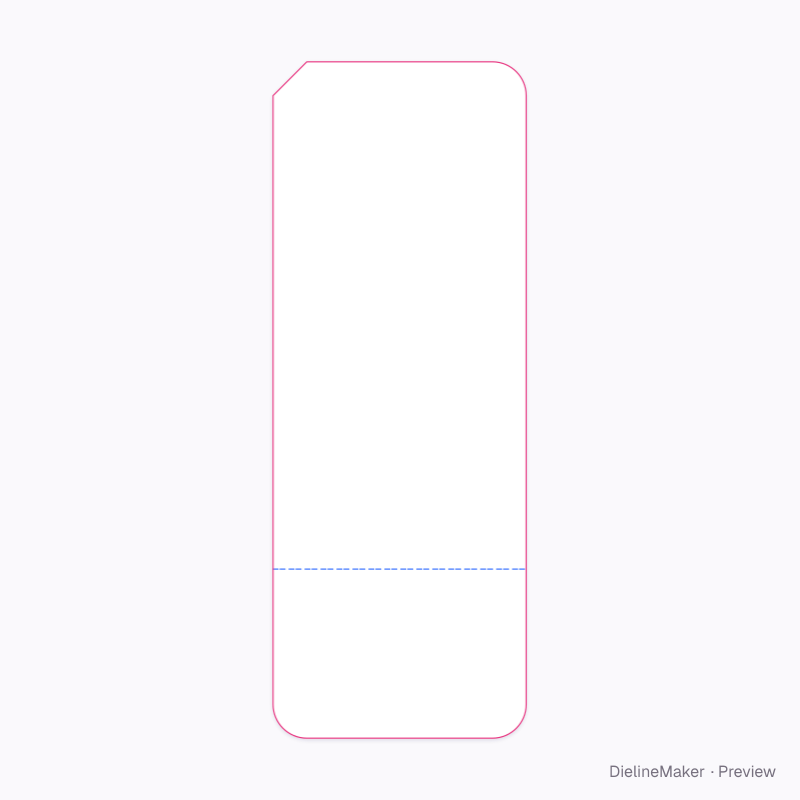

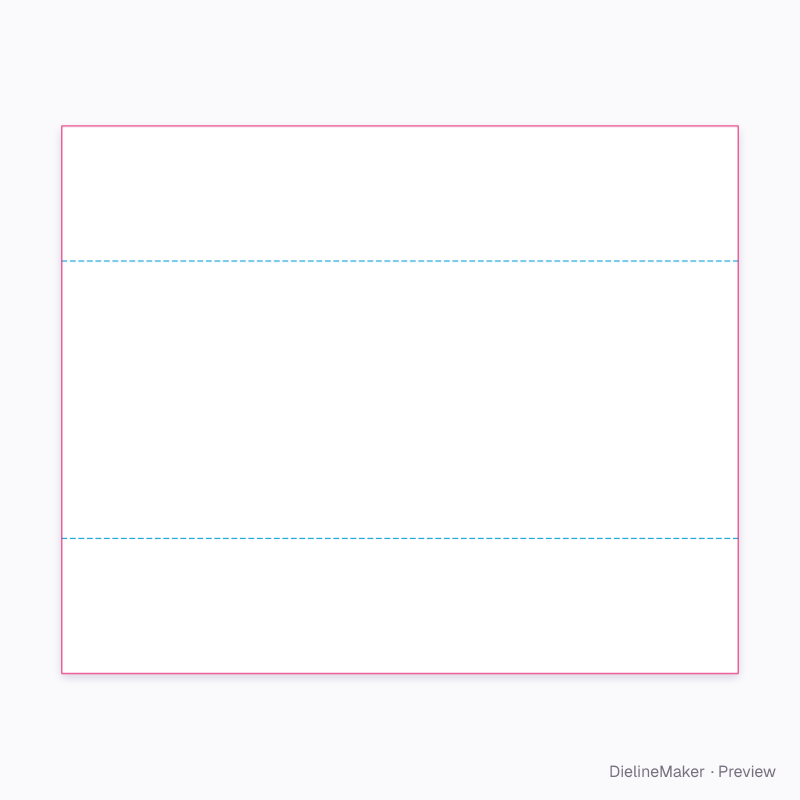

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this folded edge protector yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
