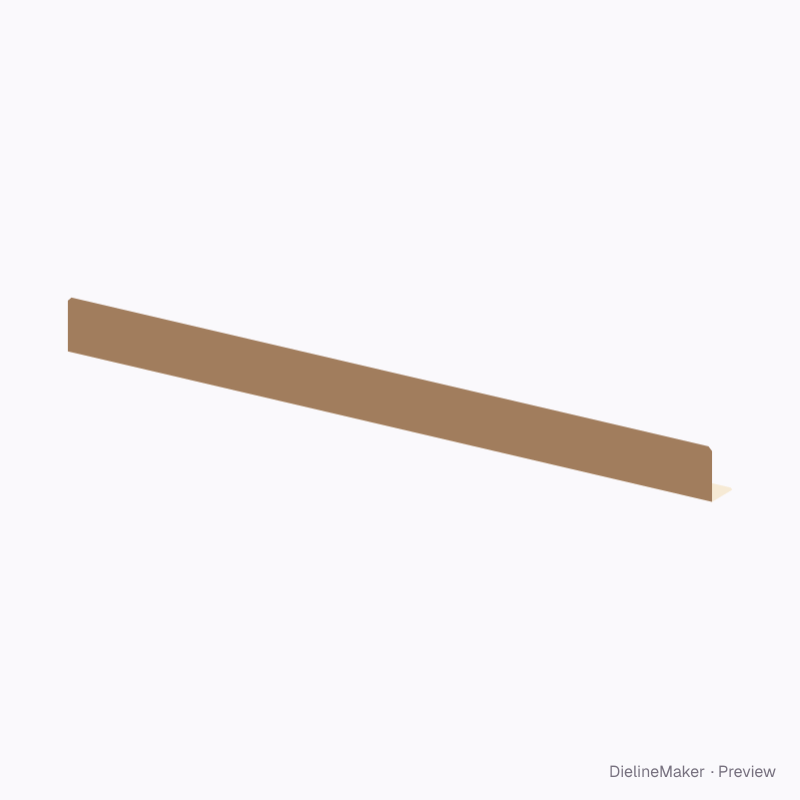

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-EDGE-GUARD-01Shipping
Furniture panel edge guard dieline
A long corrugated guard for a desk top or flat furniture panel. A ready-sized preset of the folded edge protector — change the length and two wing spans to redraw both panels and their shared crease.
Length / wing spans900 × 70 × 50 mm
Flat blank900 × 120 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-EDGE-GUARD-01
- Length / wing spans
- Length 900 · First wing 70 · Second wing 50 mm
- Size basis
- Flat length and nominal score-to-cut wings. Stock and fold determine the assembled envelope.
- Size range
- Length 60–1800 · First wing 20–200 · Second wing 20–200 mm
- Parts
- One blank
- Board area
- 0.108 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- E-flute KB-fluteE-flute W
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-EDGE-GUARD-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| First wing | 900 × 70 | L × W |
| Second wing | 900 × 50 | L × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Free corners2 options
- End chamfermm
The folded edge protector family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
