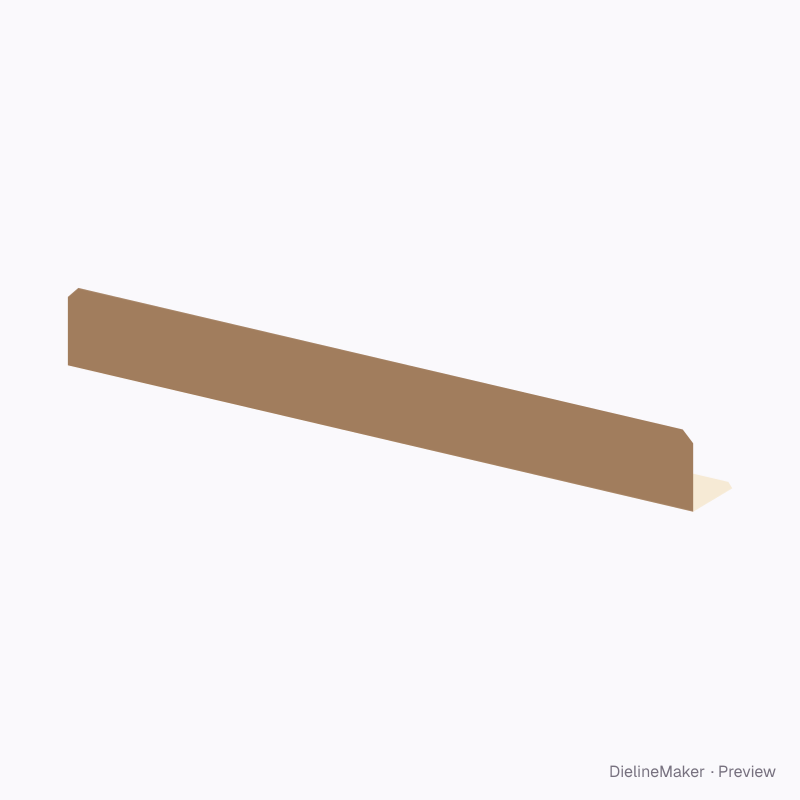

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-EDGE-GUARD-01Shipping
Picture-frame edge guard dieline
A 300 mm guard with equal 35 mm wings. A ready-sized preset of the folded edge protector — change the length and two wing spans to redraw both panels and their shared crease.
Length / wing spans300 × 35 × 35 mm
Flat blank300 × 70 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-EDGE-GUARD-01
- Length / wing spans
- Length 300 · First wing 35 · Second wing 35 mm
- Size basis
- Flat length and nominal score-to-cut wings. Stock and fold determine the assembled envelope.
- Size range
- Length 60–1800 · First wing 20–200 · Second wing 20–200 mm
- Parts
- One blank
- Board area
- 0.021 m² · about 26 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KB-fluteE-flute W
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-EDGE-GUARD-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| First wing | 300 × 35 | L × – |
| Second wing | 300 × 35 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Free corners2 options
- End chamfermm
The folded edge protector family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this picture-frame edge guard yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
