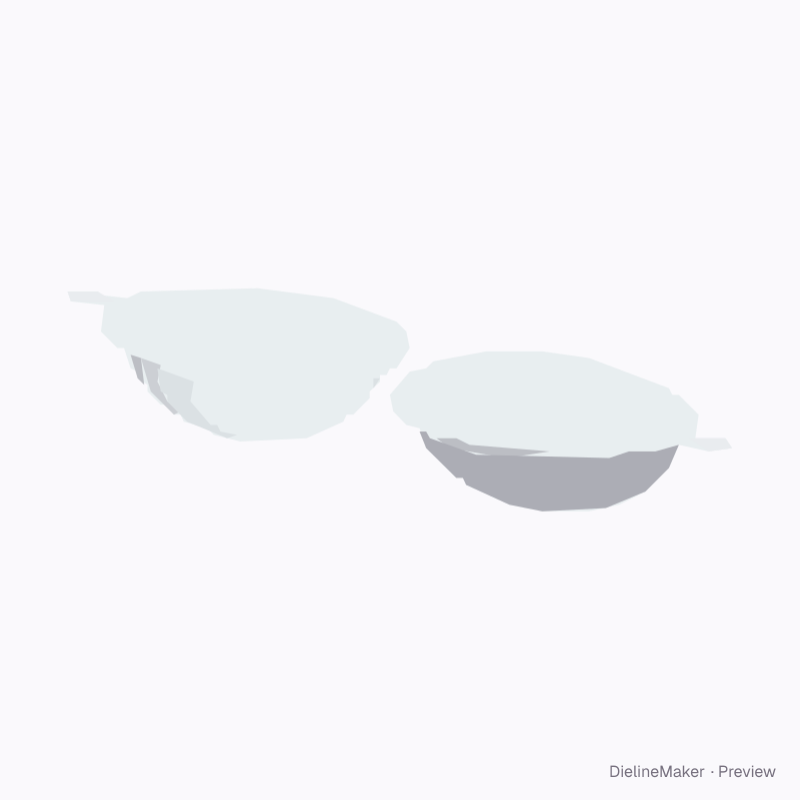

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-EGGPACK-01Labels
Twin egg pack (two cavities) dieline
A thermoformed egg-shaped cup with a flange and a peel-off lidding film with pull tab, single or twin. Print the lidding film to the egg outline. A ready-sized preset of the egg-shaped peel-seal pack — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside70 × 50 × 25 mm
Outside70 × 50 × 25 mm
Flat blank80 × 60.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-EGGPACK-01
- Inside size
- Egg length 70 · Egg width 50 · Cavity depth 25 mm
- Size range
- Egg length 40–160 · Egg width 30–120 · Cavity depth 10–80 mm
- Manufacturing
- 70 × 50 × 25 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Left lidding film, Right lidding film
- Board area
- 0.008 m² · about 132 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Cavities2 options
- Cup5 options
The egg-shaped peel-seal pack family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this twin egg pack (two cavities) yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
