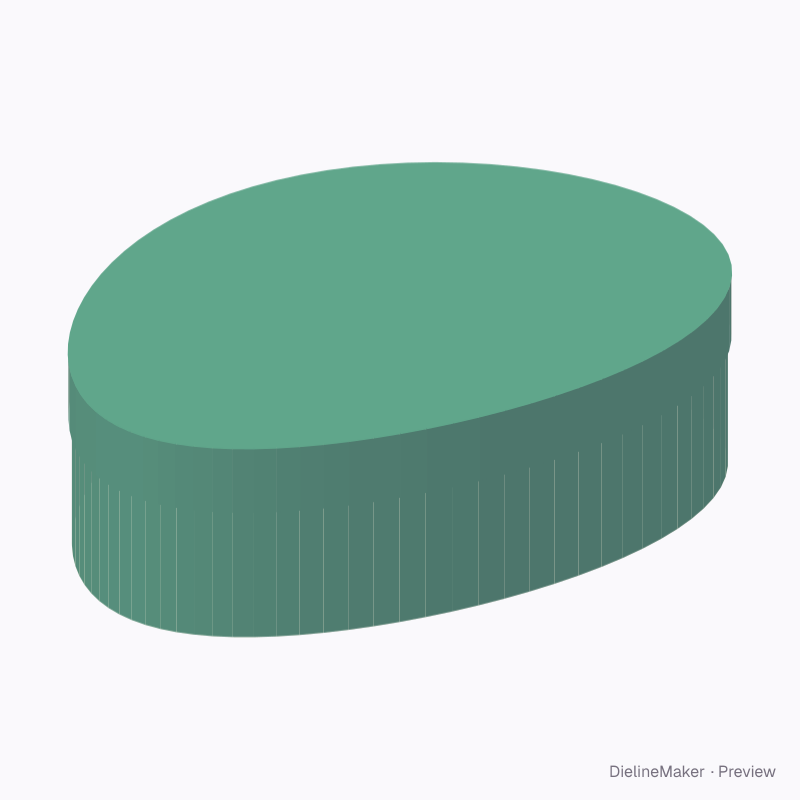

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Large egg keepsake dieline
An asymmetrical egg-shaped base and fitted lid, with rolled paperboard walls and tab-bonded cap pieces. The broad lower curve and narrower crown form an egg silhouette rather than a symmetric oval. A ready-sized preset of the egg-outline gift box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside190 × 260 × 65 mm
Outside191 × 261 × 66 mm
Flat blank714.7 × 72.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 190 · Length 260 · Height 65 mm
- Size range
- Width 80–350 · Length 80–350 · Height 20–100 mm
- Manufacturing
- 190.5 × 260.5 × 65.5 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Lid cap, Base wall strip, Base cap, Lid wall strip
- Board area
- 0.149 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for

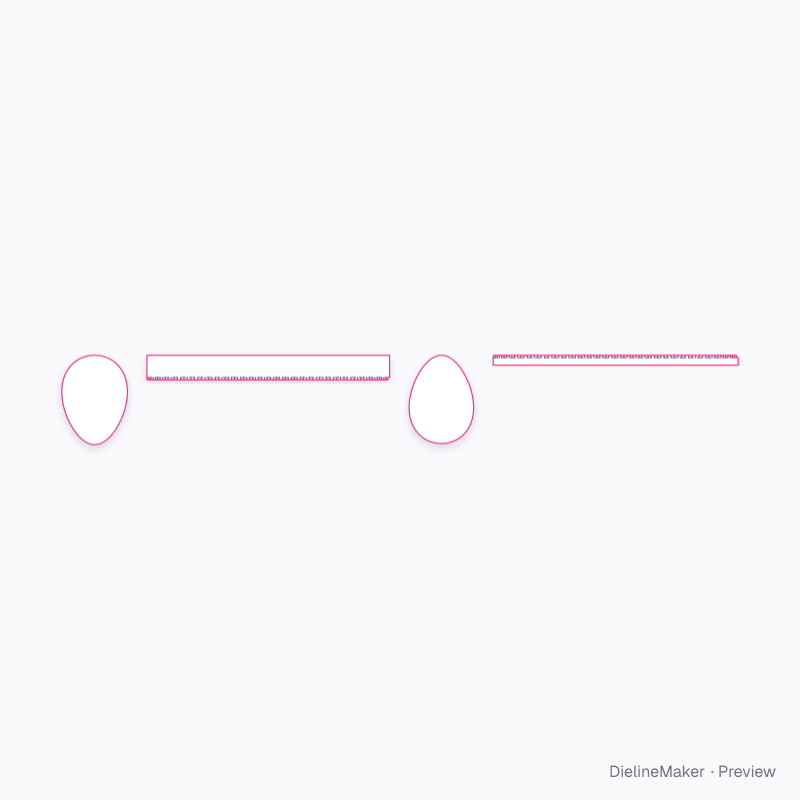

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Gift box lidLid cap | 100 × 302.8 | – |
| Pose rigLid cap | 100 × 40 | – |
| Base wall ×2Base wall strip | 5.9 × 65.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 5.9 × 7 | – |
| Base wall ×2Base wall strip | 6 × 65.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 6 × 7 | – |
| Base wall ×2Base wall strip | 6.2 × 65.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 6.2 × 7 | – |
| Base wall ×2Base wall strip | 6.5 × 65.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 6.5 × 7 | – |
| Base wall ×2Base wall strip | 6.8 × 65.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 6.8 × 7 | – |
| Base wall ×2Base wall strip | 7.1 × 65.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 7.1 × 7 | – |
| Base wall ×2Base wall strip | 7.5 × 65.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 7.5 × 7 | – |
131 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Lid depthmm
- Egg sharpness%
- Inner and outer cap sheetson / off
