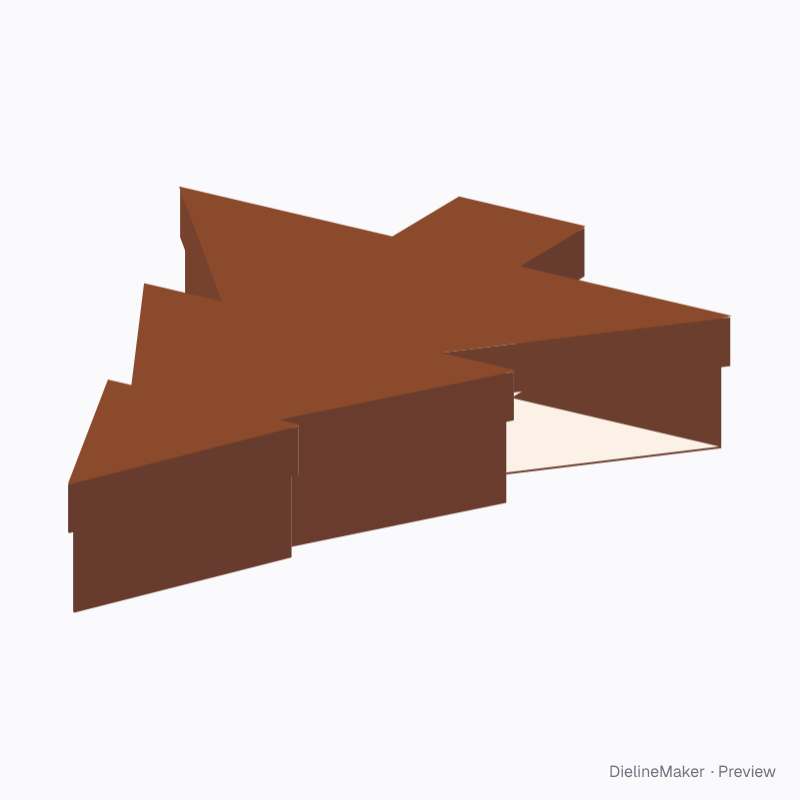

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-TREE-GIFT-BOX-01Shapes
Tree-shaped gift box dieline
A Christmas-tree tray and matching lift-off lid: a simple triangle or one to four stepped branch tiers above a trunk, with scored walls following every step. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 240 × 40 mm
Outside181 × 241 × 41 mm
Flat blank817.2 × 47.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TREE-GIFT-BOX-01
- Inside size
- Width 180 · Height of the tree 240 · Depth 40 mm
- Size range
- Width 60–400 · Height of the tree 80–500 · Depth 15–120 mm
- Manufacturing
- 180.5 × 240.5 × 40.5 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Lid cap, Base wall strip, Base cap, Lid wall strip
- Board area
- 0.092 m² · about 13 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline

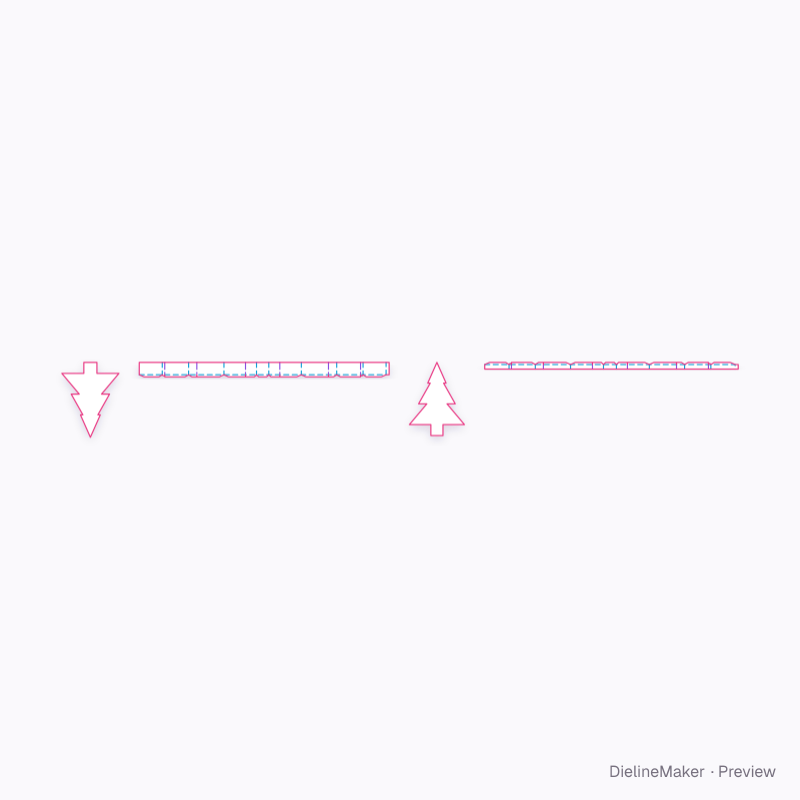

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-TREE-GIFT-BOX-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Gift box lidLid cap | 205.1 × 100 | – |
| Pose rigLid cap | 35 × 100 | – |
| Base wall ×2Base wall strip | 75.3 × 40.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 75.3 × 7 | – |
| Base wall ×2Base wall strip | 8.2 × 40.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 8.2 × 3.7 | – |
| Base wall ×2Base wall strip | 78 × 40.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 78 × 7 | – |
| Base wall ×2Base wall strip | 26.9 × 40.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 26.9 × 7 | – |
| Base wall ×2Base wall strip | 88.7 × 40.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 88.7 × 7 | – |
| Base wall ×2Base wall strip | 70.5 × 40.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 70.5 × 7 | – |
| Base wall ×2Base wall strip | 36 × 40.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 36 × 7 | – |
22 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Outline2 options
- Branch tierscount
- Tier step%
- Trunk widthmm
- Trunk heightmm
- Layerscount
- Upper tray depthmm
- Lid depthmm

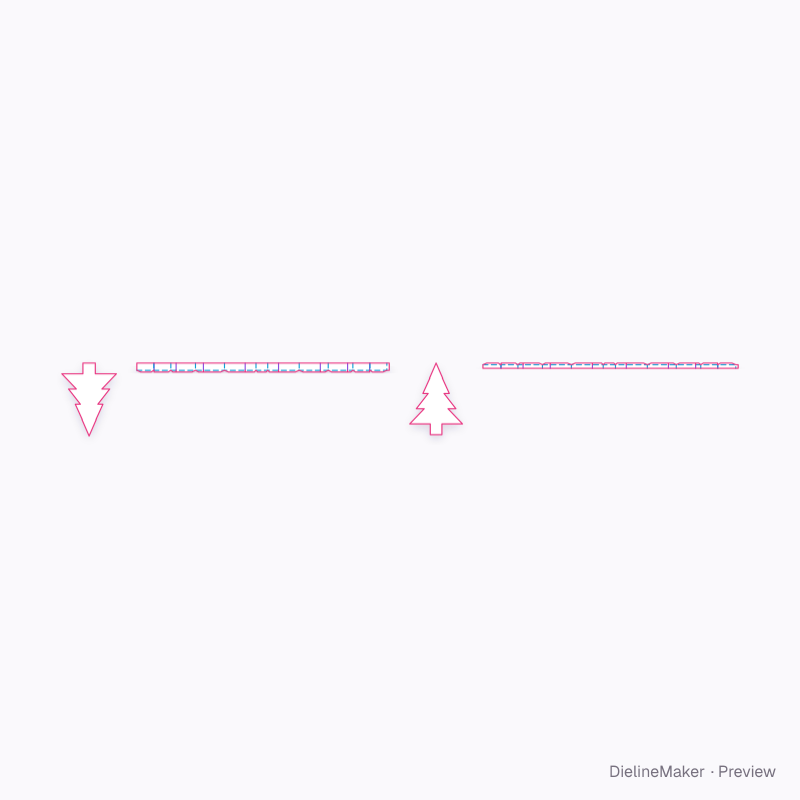

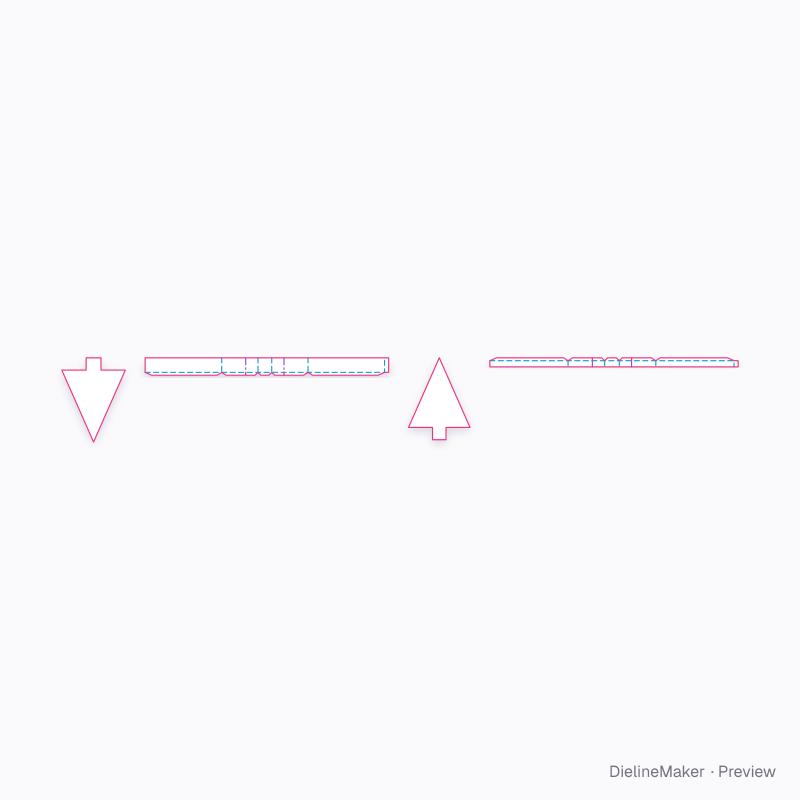

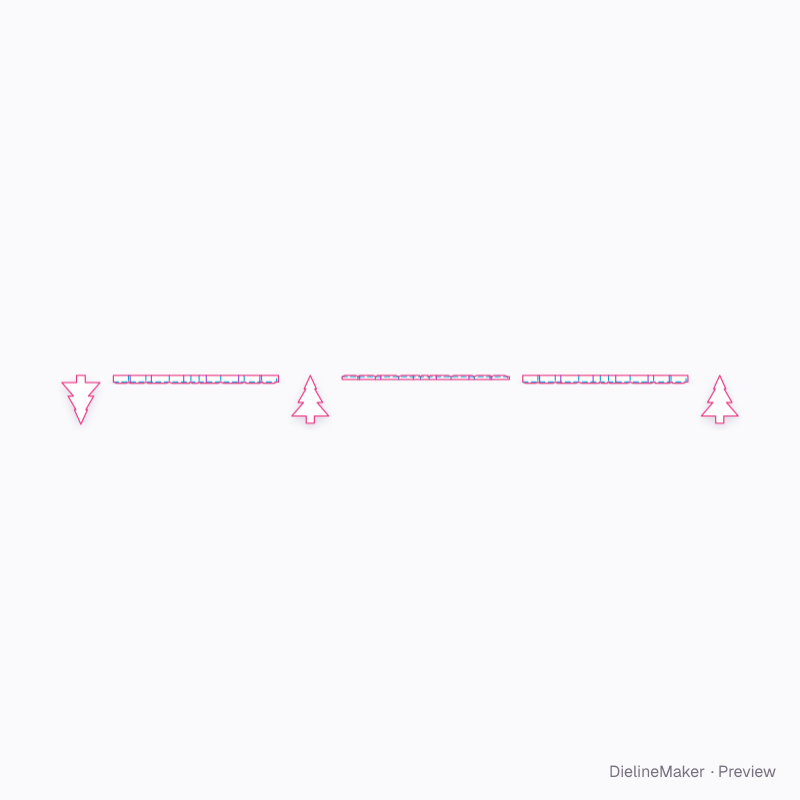

Ready-sized tree-shaped gift box presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this tree-shaped gift box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
