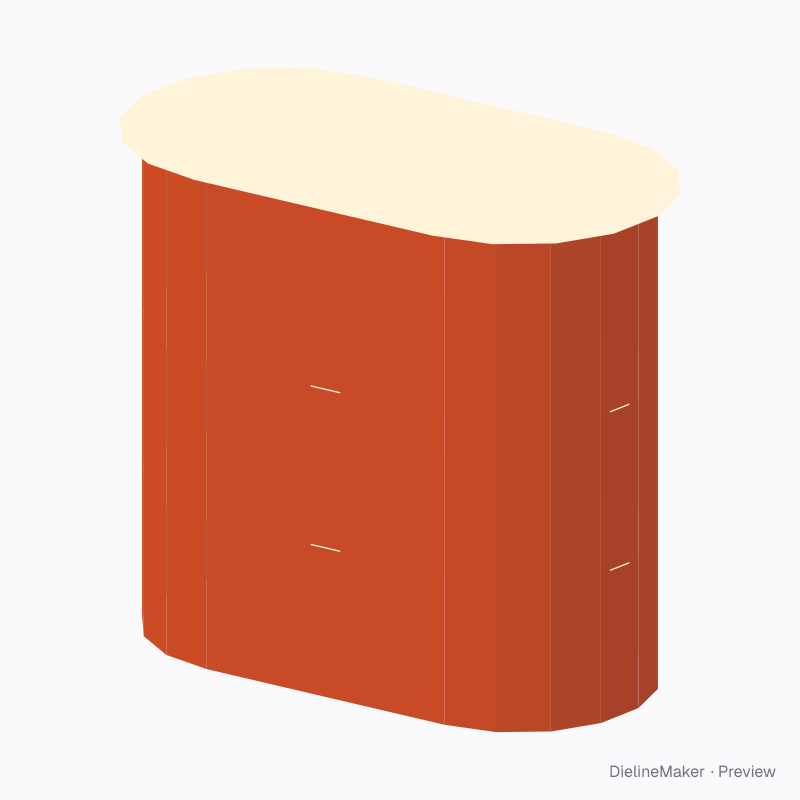

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-OVALCOUNTER-01Display
Capsule promo counter with two shelves dieline
A counter-height oval display wrap with internal oval braces and a separate overhanging oval worktop. Print the full wrap and the worktop; confirm rolling direction and board with your converter. A ready-sized preset of the elliptical promotional counter — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside1000 × 500 × 950 mm
Outside1000 × 500 × 950 mm
Flat blank2060.7 × 950 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-OVALCOUNTER-01
- Inside size
- Body width 1000 · Body depth 500 · Counter height 950 mm
- Size range
- Body width 500–2000 · Body depth 250–900 · Counter height 700–1150 mm
- Manufacturing
- 1000 × 500 × 950 mm score to score · inside vs outside sizes
- Parts
- 5 parts — Capsule U wrap, Capsule top brace, Lower capsule shelf, Upper capsule shelf, Capsule worktop
- Board area
- 3.822 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-OVALCOUNTER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Curved side band ×16Capsule U wrap | 97.5 × 950 | – × H |
| Counter frontCapsule U wrap | 500 × 950 | – × H |
| Capsule top braceCapsule top brace | 1009.4 × 508.4 | – |
| Lower capsule shelfLower capsule shelf | 1009.4 × 508.4 | – |
| Upper capsule shelfUpper capsule shelf | 1009.4 × 508.4 | – |
| Capsule worktopCapsule worktop | 1080 × 580 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Worktop overhangmm
- Counter shape2 options
- Shelvescount
- Lower shelf heightmm
- Upper shelf heightmm
The elliptical promotional counter family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this capsule promo counter with two shelves yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
