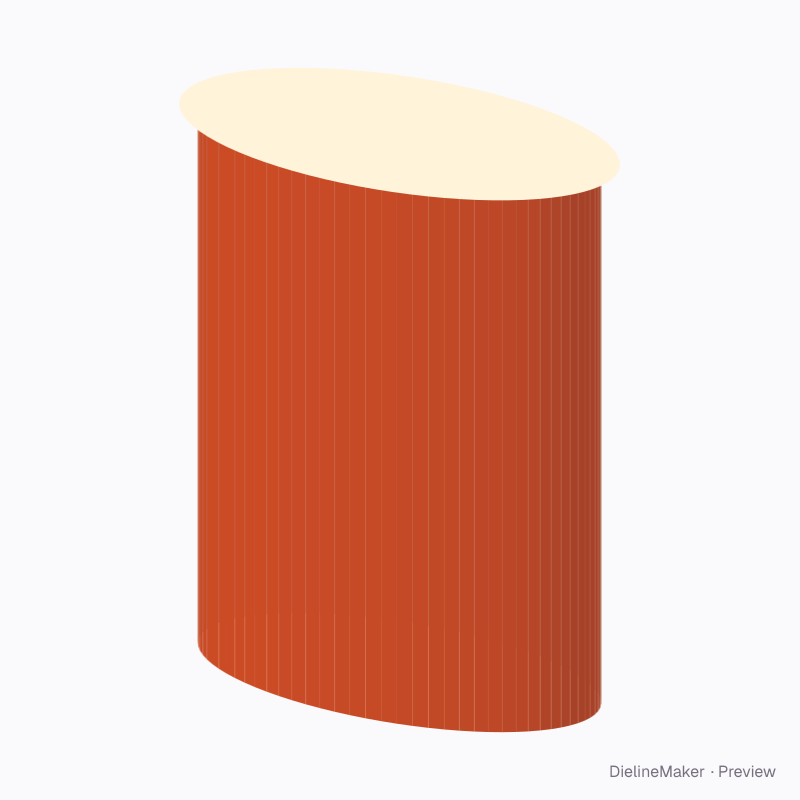

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-OVALCOUNTER-01Display
Compact oval sampling counter dieline
A counter-height oval display wrap with internal oval braces and a separate overhanging oval worktop. Print the full wrap and the worktop; confirm rolling direction and board with your converter. A ready-sized preset of the elliptical promotional counter — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside700 × 380 × 900 mm
Outside700 × 380 × 900 mm
Flat blank1743.5 × 918 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-OVALCOUNTER-01
- Inside size
- Body width 700 · Body depth 380 · Counter height 900 mm
- Size range
- Body width 500–2000 · Body depth 250–900 · Counter height 700–1150 mm
- Manufacturing
- 700 × 380 × 900 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Oval counter wrap, Oval lower brace, Oval upper brace, Oval worktop
- Board area
- 2.273 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute K
- Good for

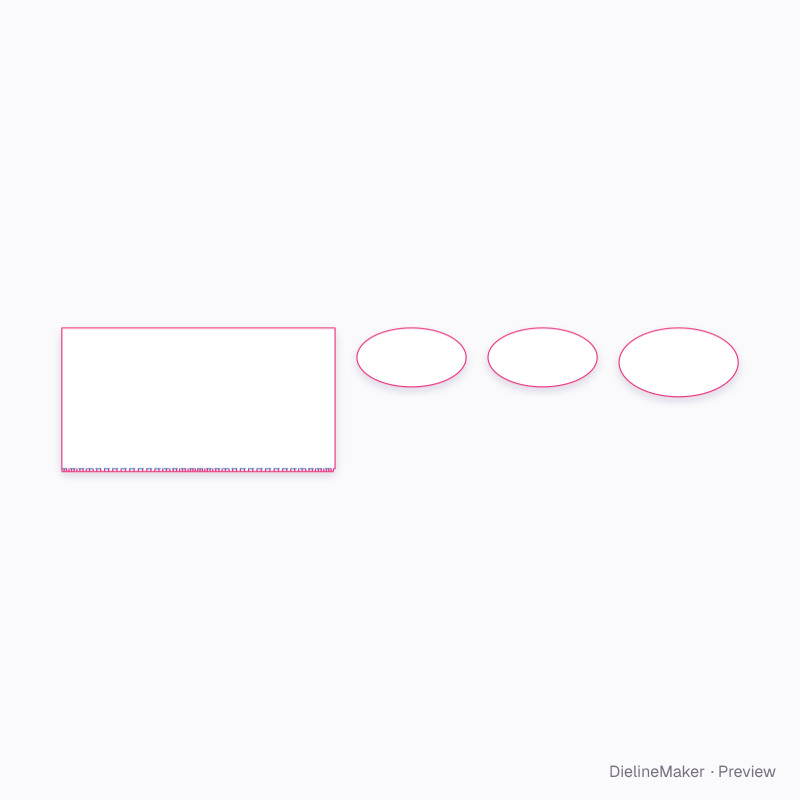

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-OVALCOUNTER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Curved counter face ×4Oval counter wrap | 14.9 × 900 | – × H |
| Cap bonding tab ×4Oval counter wrap | 14.9 × 18 | – |
| Curved counter face ×4Oval counter wrap | 15.2 × 900 | – × H |
| Cap bonding tab ×4Oval counter wrap | 15.2 × 18 | – |
| Curved counter face ×4Oval counter wrap | 15.6 × 900 | – × H |
| Cap bonding tab ×4Oval counter wrap | 15.6 × 18 | – |
| Curved counter face ×4Oval counter wrap | 16.2 × 900 | – × H |
| Cap bonding tab ×4Oval counter wrap | 16.2 × 18 | – |
| Curved counter face ×4Oval counter wrap | 16.9 × 900 | – × H |
| Cap bonding tab ×4Oval counter wrap | 16.9 × 18 | – |
| Curved counter face ×4Oval counter wrap | 17.8 × 900 | – × H |
| Cap bonding tab ×4Oval counter wrap | 17.8 × 18 | – |
| Curved counter face ×4Oval counter wrap | 18.7 × 900 | – × H |
| Cap bonding tab ×4Oval counter wrap | 18.7 × 18 | – |
| Curved counter face ×4Oval counter wrap | 19.7 × 900 | – × H |
| Cap bonding tab ×4Oval counter wrap | 19.7 × 18 | – |
28 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Worktop overhangmm
- Counter shape2 options

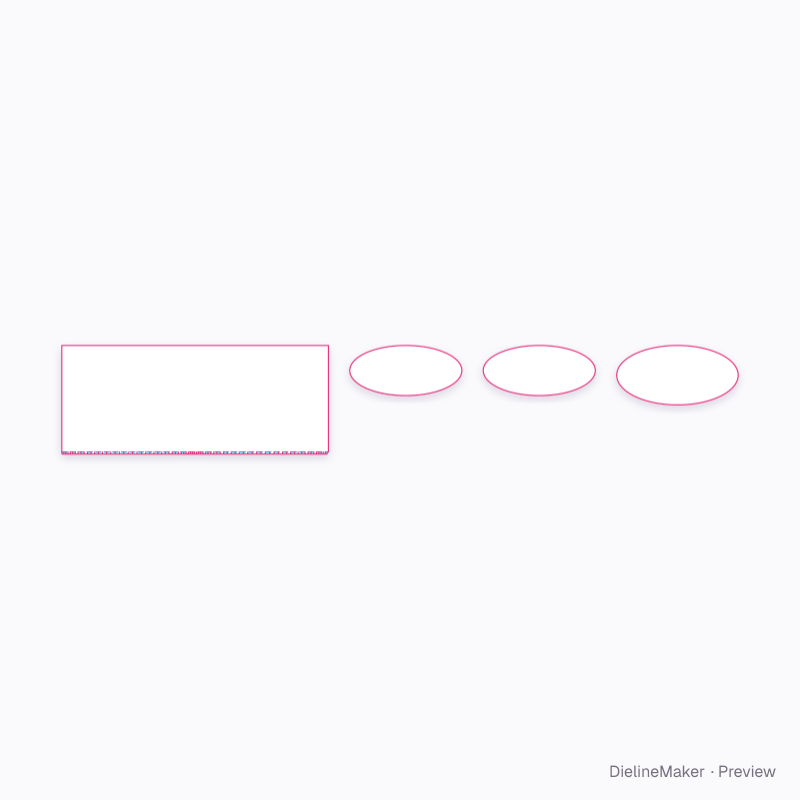

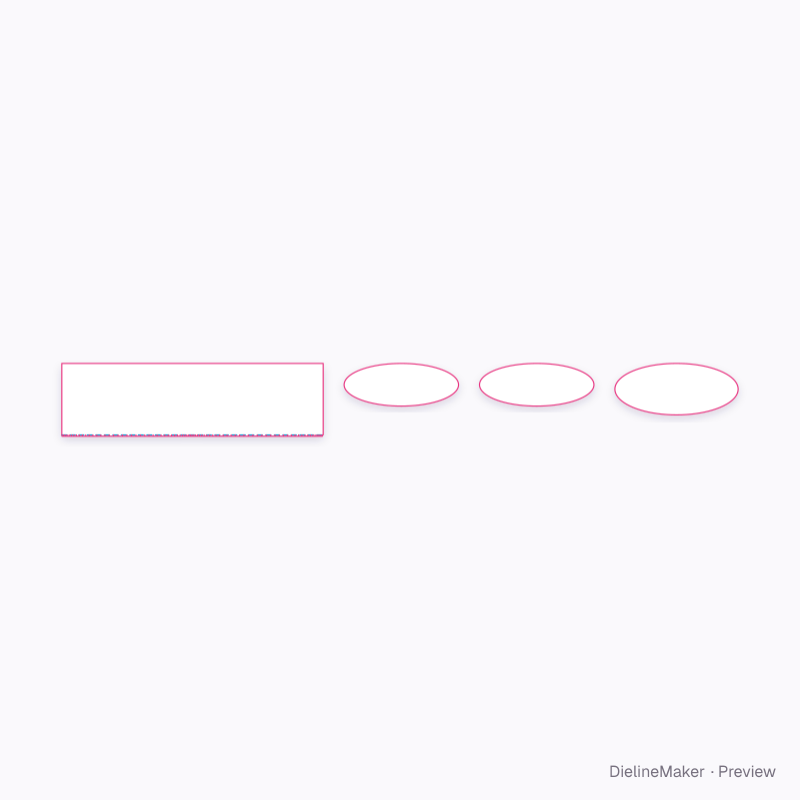

The elliptical promotional counter family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset

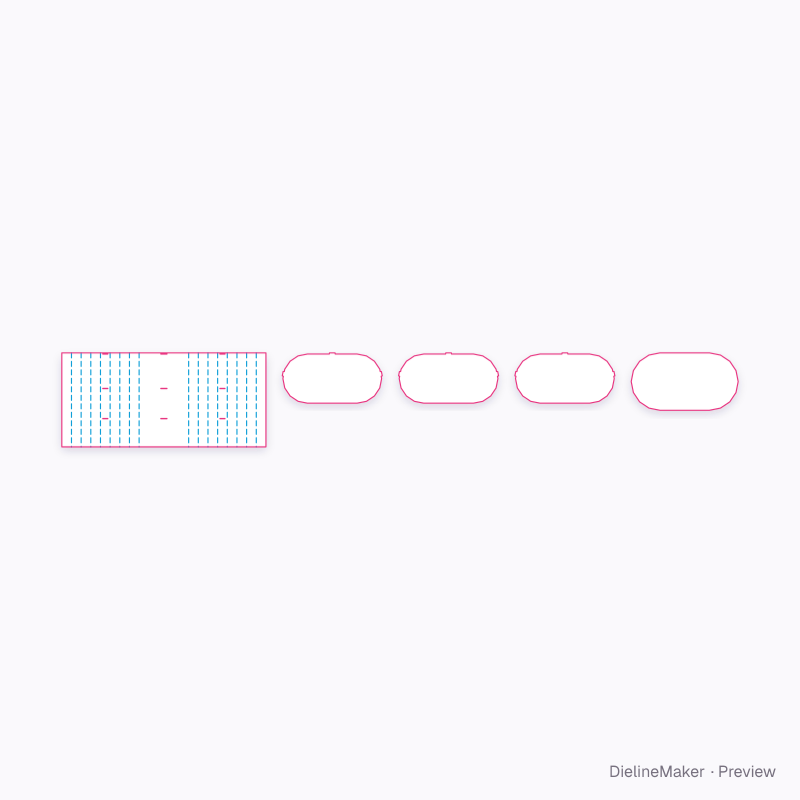

Similar structures
