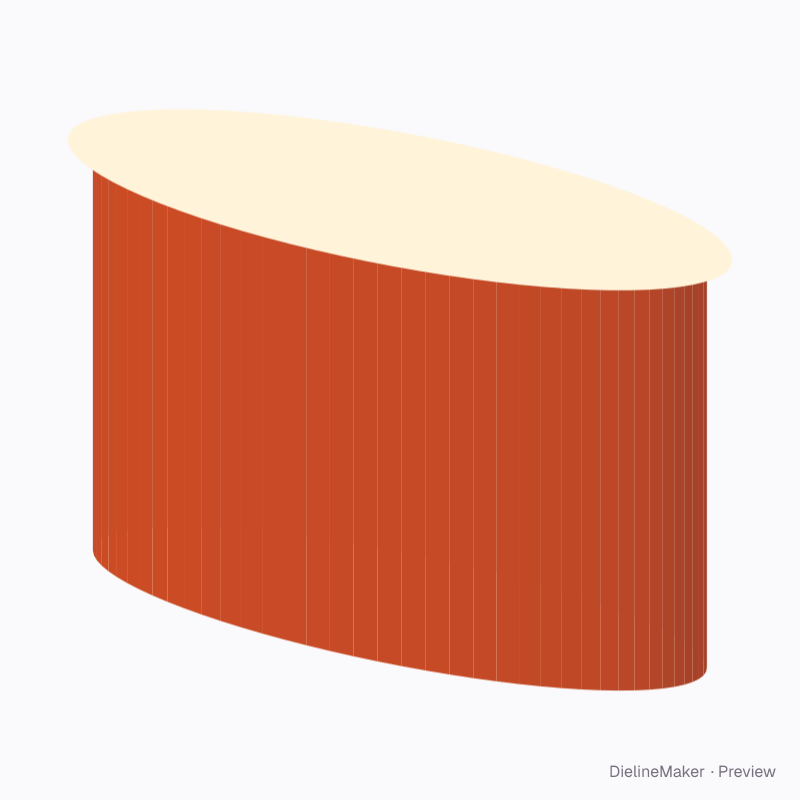

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-OVALCOUNTER-01Display
Wide oval exhibition counter dieline
A counter-height oval display wrap with internal oval braces and a separate overhanging oval worktop. Print the full wrap and the worktop; confirm rolling direction and board with your converter. A ready-sized preset of the elliptical promotional counter — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside1600 × 600 × 1000 mm
Outside1600 × 600 × 1000 mm
Flat blank3645.8 × 1018 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-OVALCOUNTER-01
- Inside size
- Body width 1600 · Body depth 600 · Counter height 1000 mm
- Size range
- Body width 500–2000 · Body depth 250–900 · Counter height 700–1150 mm
- Manufacturing
- 1600 × 600 × 1000 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Oval counter wrap, Oval lower brace, Oval upper brace, Oval worktop
- Board area
- 6.177 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-OVALCOUNTER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Curved counter face ×4Oval counter wrap | 23.7 × 1000 | – × H |
| Cap bonding tab ×4Oval counter wrap | 23.7 × 18 | – |
| Curved counter face ×4Oval counter wrap | 24.5 × 1000 | – × H |
| Cap bonding tab ×4Oval counter wrap | 24.5 × 18 | – |
| Curved counter face ×4Oval counter wrap | 26.2 × 1000 | – × H |
| Cap bonding tab ×4Oval counter wrap | 26.2 × 18 | – |
| Curved counter face ×4Oval counter wrap | 28.4 × 1000 | – × H |
| Cap bonding tab ×4Oval counter wrap | 28.4 × 18 | – |
| Curved counter face ×4Oval counter wrap | 31 × 1000 | – × H |
| Cap bonding tab ×4Oval counter wrap | 31 × 18 | – |
| Curved counter face ×4Oval counter wrap | 33.9 × 1000 | – × H |
| Cap bonding tab ×4Oval counter wrap | 33.9 × 18 | – |
| Curved counter face ×4Oval counter wrap | 36.9 × 1000 | – × H |
| Cap bonding tab ×4Oval counter wrap | 36.9 × 18 | – |
| Curved counter face ×4Oval counter wrap | 40 × 1000 | – × H |
| Cap bonding tab ×4Oval counter wrap | 40 × 18 | – |
28 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Worktop overhangmm
- Counter shape2 options
The elliptical promotional counter family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this wide oval exhibition counter yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
