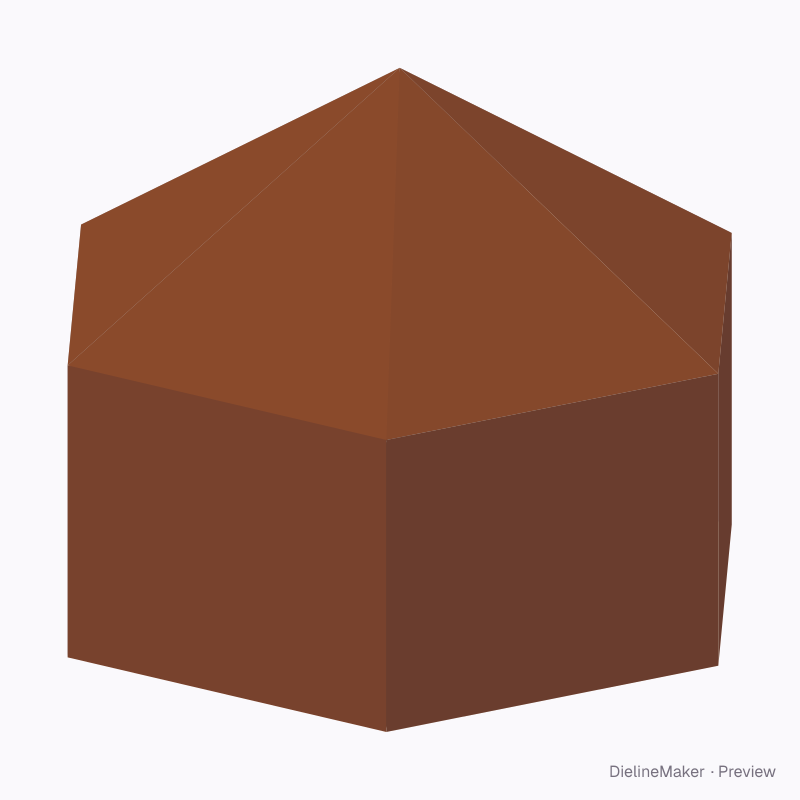

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FACETED-DOME-LID-01Shapes
Hexagon box with faceted lid dieline
A three to eight-sided tray with a hinged lid of triangular facets rising to a peak. The back facet hinges on the back wall; tucks on the front facets drop inside the walls. A ready-sized preset of the faceted pyramid-lid box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 104 × 50 mm
Outside121 × 105 × 50.5 mm
Flat blank328.6 × 259.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FACETED-DOME-LID-01
- Inside size
- Width 120 · Depth 104 · Wall height 50 mm
- Size range
- Width 40–400 · Depth 40–400 · Wall height 15–300 mm
- Manufacturing
- 120.5 × 104.5 × 90.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.042 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for

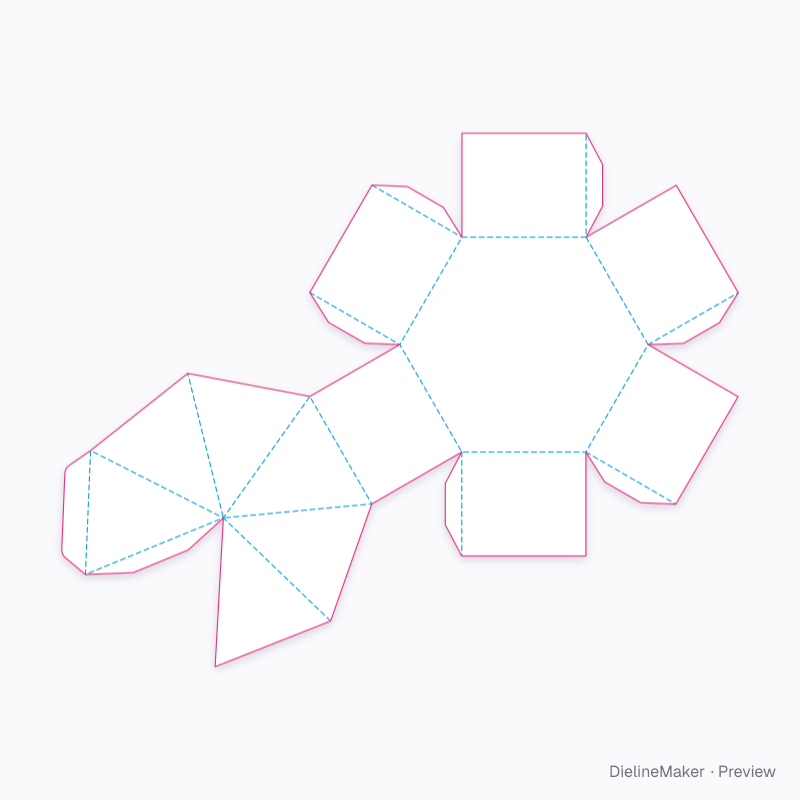

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-FACETED-DOME-LID-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floor | 120.6 × 104.4 | – |
| Wall ×2 | 50.5 × 60.3 | H + T × – |
| Wall ×2 | 60.3 × 50.5 | – × H + T |
| Wall | 50.5 × 60.3 | H + T × – |
| Back wall | 50.5 × 60.3 | H + T × – |
| Lid facet | 54.8 × 72.4 | – |
| Lid facet | 54.8 × 72.3 | – |
| Lid facet | 72.4 × 54.8 | – |
| Lid facet | 72.3 × 54.8 | – |
| Lid facet | 72.4 × 54.8 | – |
| Hinged back facet | 65.8 × 60.3 | – |
| Hand-glue seam ×4 | 50.5 × 8 | H + T × – |
| Hand-glue seam ×2 | 8 × 50.5 | – × H + T |
| Hand-glue seam | 72.4 × 8 | – |
| Front tuck | 12 × 60.3 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Sidescount
- Lid peak heightmm
- Front tuck depthmm
- Glue tab depthmm

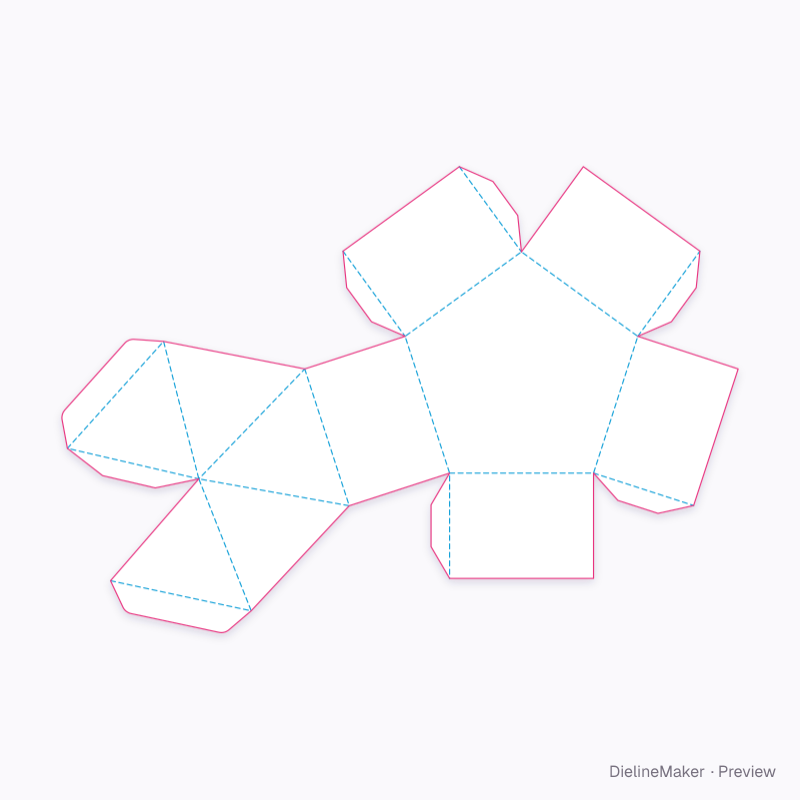

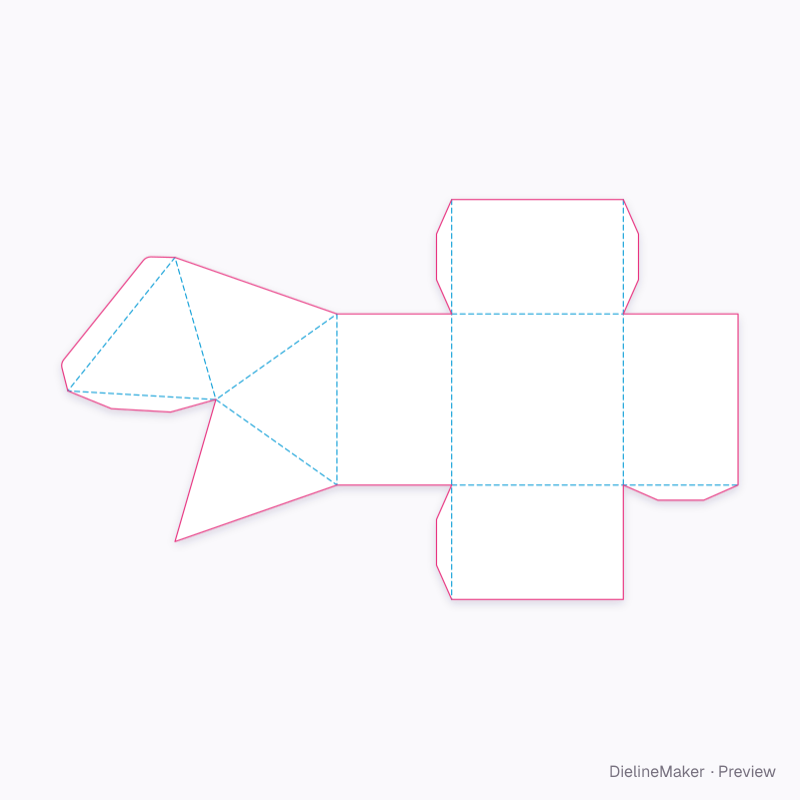

The faceted pyramid-lid box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this hexagon box with faceted lid yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
