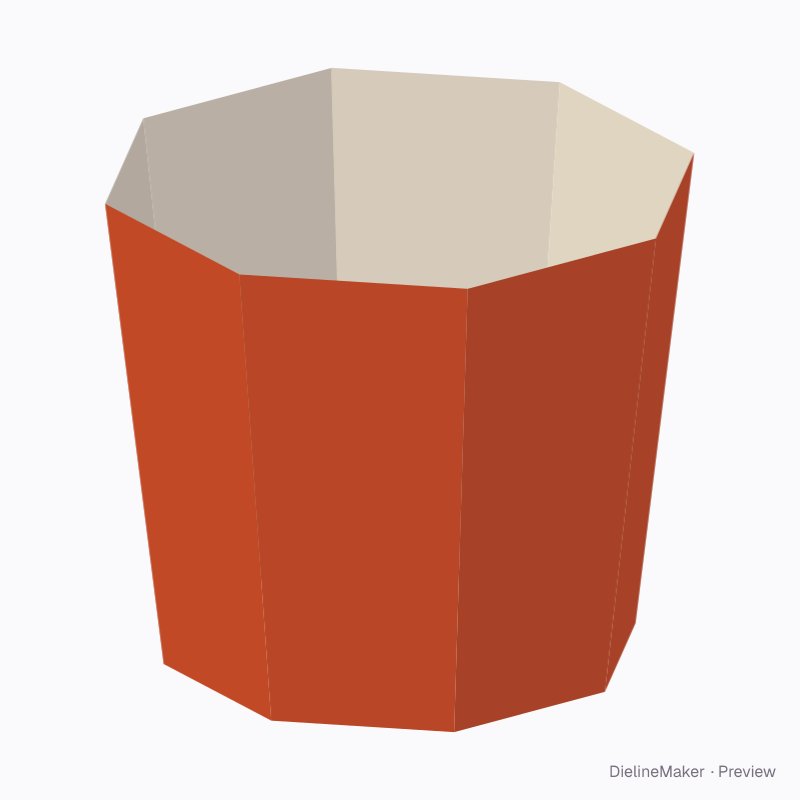

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0859Display
Octagonal floor bin dieline
A 600 mm octagonal bin, wider at the top, for loose seasonal lines. A ready-sized preset of the polygonal display bin — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside600 × 600 × 500 mm
Outside606.4 × 606.4 × 500 mm
Flat blank1831.5 × 949.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0859
- Inside size
- Top width 600 · Top depth 600 · Height 500 mm
- Size range
- Top width 250–1200 · Top depth 250–1400 · Height 200–1200 mm
- Manufacturing
- 603.2 × 603.2 × 500 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 1.017 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for

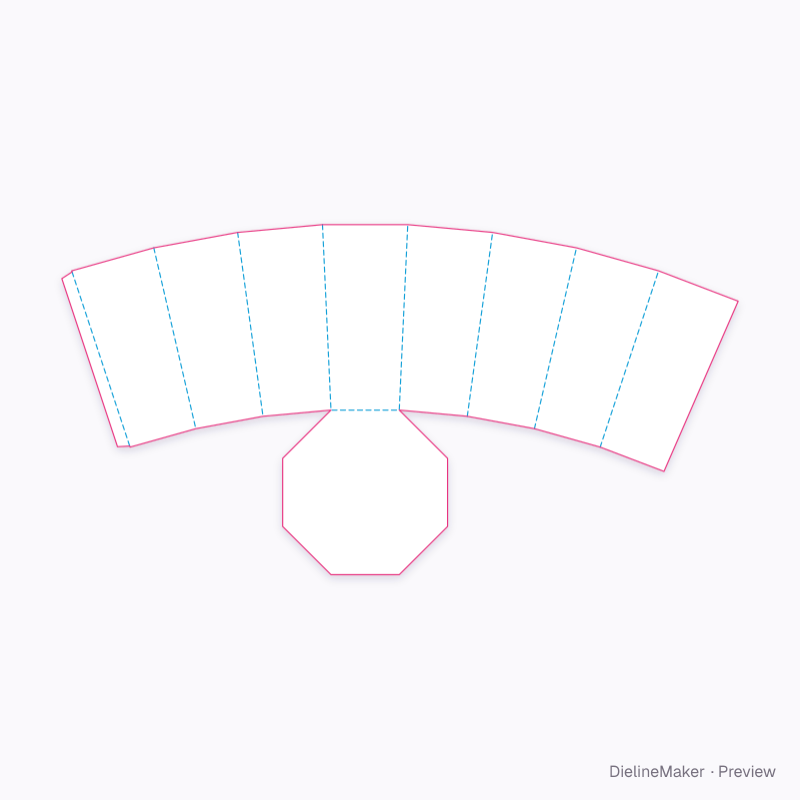

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Construction4 options
- Sidescount
- Base widthmm
- Feet3 options
- Base hole3 options
The polygonal display bin family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this octagonal floor bin yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
