The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0853Display
Display bin with inserts dieline
A glued corrugated bin with display inserts: a holed locator deck and header, a sloped compartment grid, a two-tier divider grid, or legs, a cut-away front and a slatted floor. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 600 mm
Outside406.4 × 306.4 × 600 mm
Flat blank1444.8 × 751.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0853
- Inside size
- Width 400 · Depth 300 · Height 600 mm
- Size range
- Width 200–1200 · Depth 150–1000 · Height 200–1600 mm
- Manufacturing
- 403.2 × 303.2 × 600 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Bin, Locator deck
- Board area
- 1.103 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0853 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontBin | 403.2 × 480 | L + T × – |
| Right sideBin | 303.2 × 480 | W + T × – |
| Left sideBin | 303.2 × 480 | W + T × – |
| Bottom flap ×2Bin | 396.8 × 151.1 | L − T × – |
| BackBin | 403.2 × 480 | L + T × – |
| Bottom inner flap ×2Bin | 296.8 × 150.6 | W − T × – |
| Glue flapBin | 32 × 476 | – |
| LipLocator deck | 388.4 × 36 | – |
| Locator deckLocator deck | 388.4 × 294.8 | – |
| LipLocator deck | 376.8 × 36 | – |
| Lip ×2Locator deck | 36 × 283.2 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Construction5 options
- Columnscount
- Rowscount
- Headermm
- Front heightmm
- Foot heightmm
- Cut-away depthmm

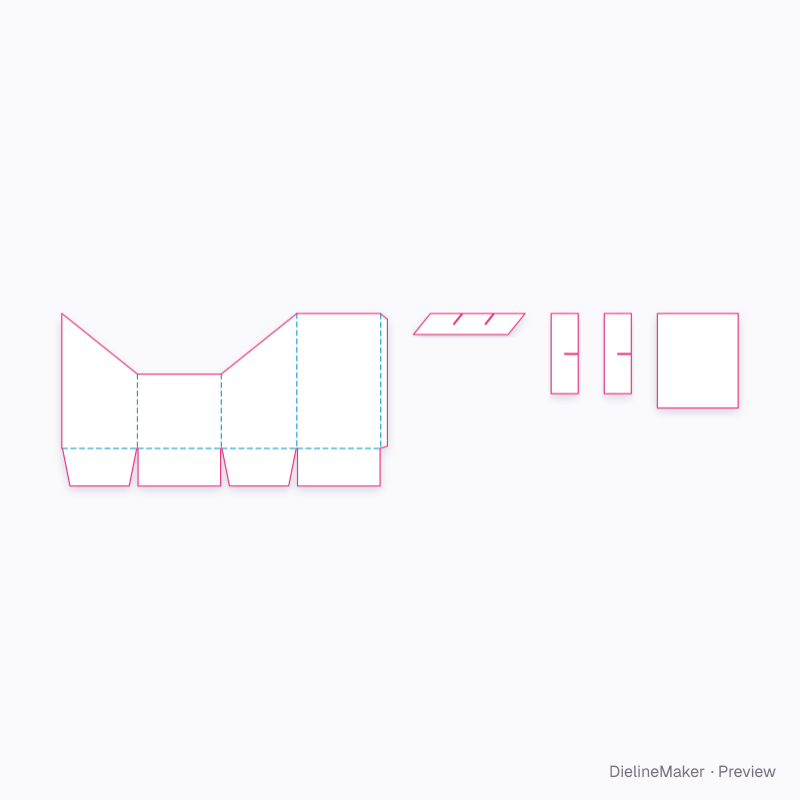

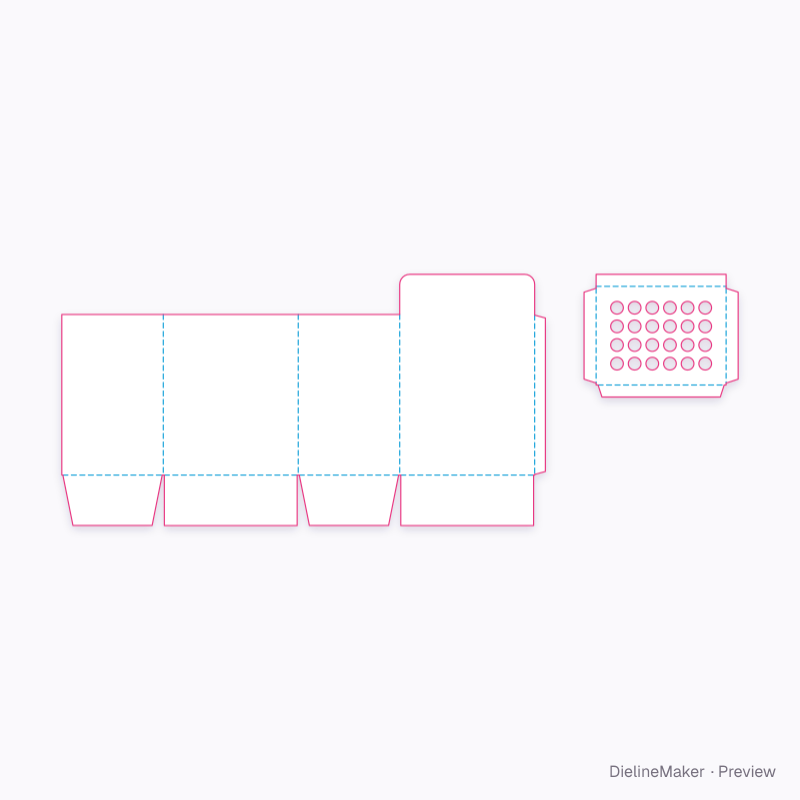

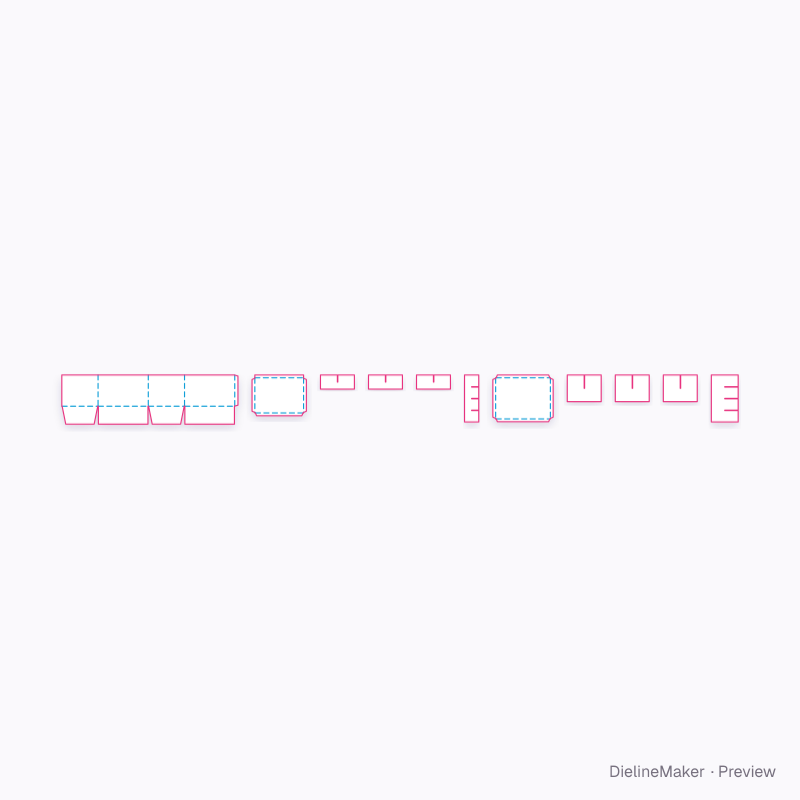

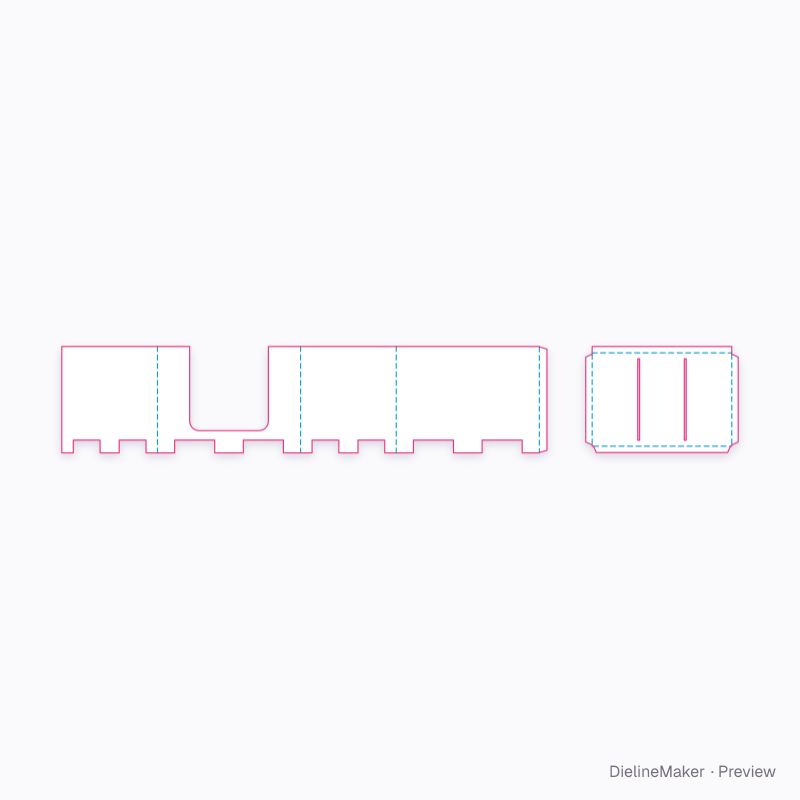

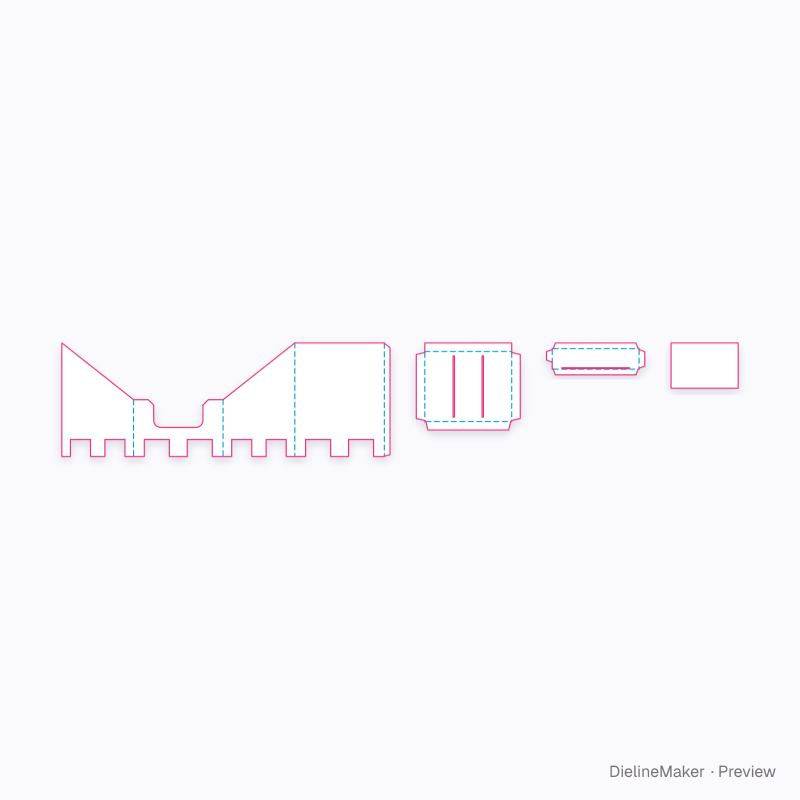

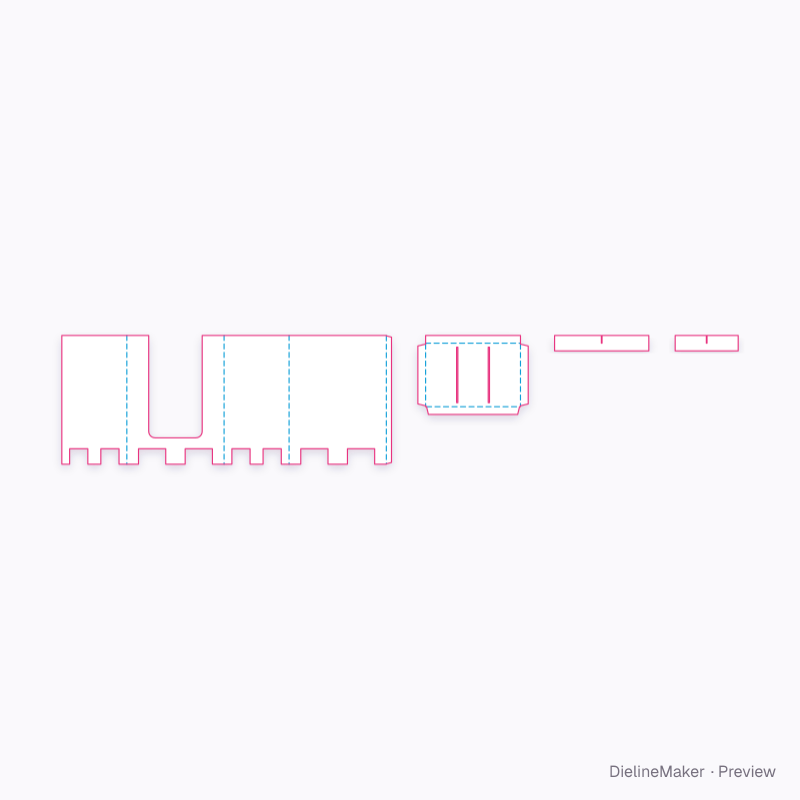

Ready-sized display bin with inserts presets
