FEFCO 0225Shipping

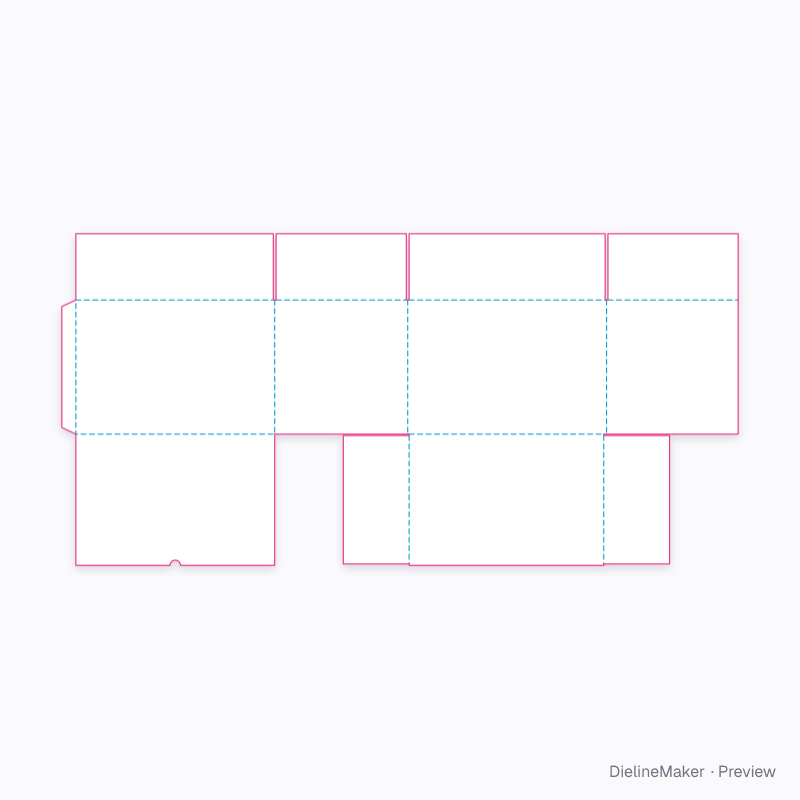

Heavy book box 330×230×250 dieline
The wings lock the floor square under a dense load of books. A ready-sized preset of the file-bottom box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside330 × 230 × 250 mm
Outside339.2 × 239.2 × 268.4 mm
Flat blank1165.8 × 606.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0225
- Inside size
- Length 330 · Width 230 · Height 250 mm
- Size range
- Length 120–800 · Width 80–600 · Height 80–800 mm
- Manufacturing
- 334.6 × 234.6 × 259.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.637 m²
- Default board
- EB double wall · 4.6 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline

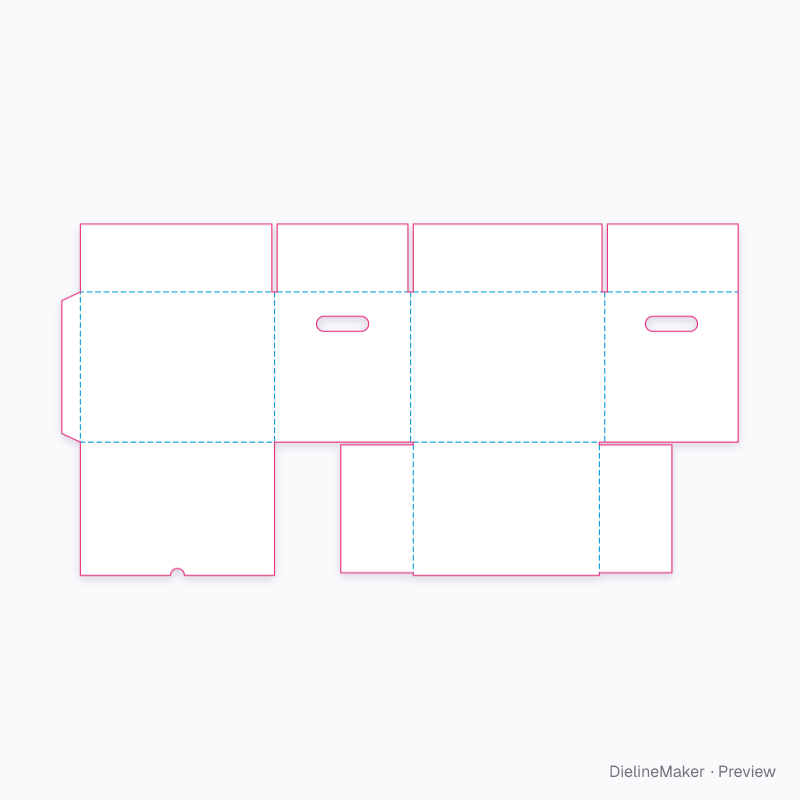

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0225 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (4.6 mm for EB double wall). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 334.6 × 259.2 | L + T × H + 2T |
| Left side | 234.6 × 259.2 | W + T × H + 2T |
| Back | 334.6 × 259.2 | L + T × H + 2T |
| Right side | 230 × 259.2 | W × H + 2T |
| Glue flap | 32 × 259.2 | – × H + 2T |
| File bottom | 320.8 × 230 | L − 2T × W |
| Bottom wing ×2 | 125 × 230 | – × W |
| Outer bottom flap | 334.6 × 230 | L + T × W |
| Top outer flap | 330 × 117.3 | L × – |
| Top inner flap ×2 | 225.4 × 117.3 | W − T × – |
| Top outer flap | 325.4 × 117.3 | L − T × – |
