DM-FISH-HANGING-CARTON-01Shapes

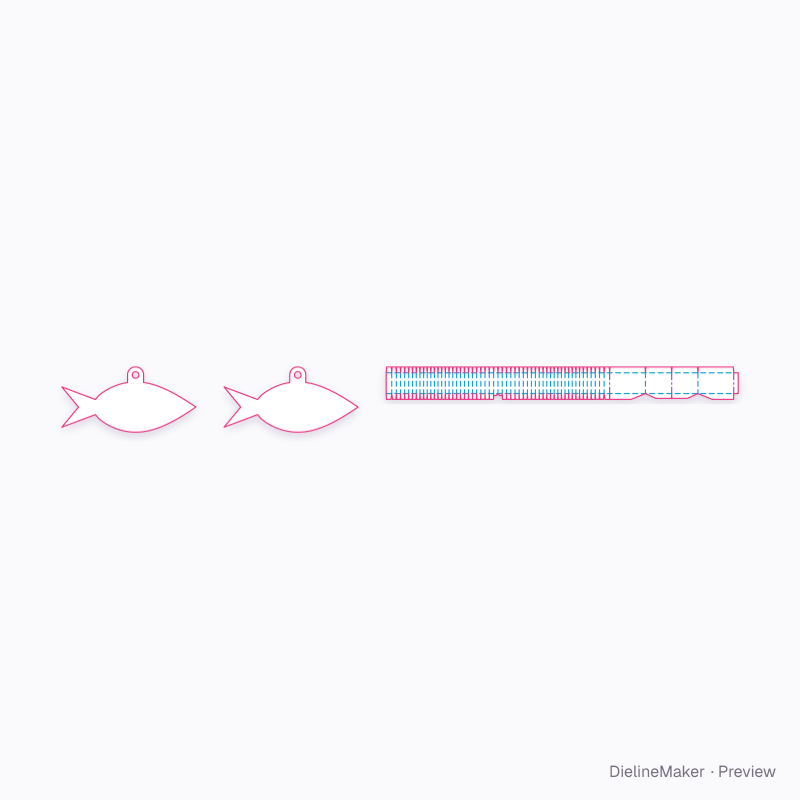

Hanging fish carton dieline
A fish-silhouette carton: two profile faces with a pointed head, deep body and forked tail, joined by a creased band. Hang tabs with aligned round holes rise from the back of both faces. A ready-sized preset of the fish-shaped hanging carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 40 × 90 mm
Outside201 × 41 × 91 mm
Flat blank544.9 × 54 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FISH-HANGING-CARTON-01
- Inside size
- Length 200 · Depth 40 · Body height 90 mm
- Size range
- Length 80–500 · Depth 15–150 · Body height 40–300 mm
- Manufacturing
- 200.5 × 40 × 90.5 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Left fish face, Right fish face, Fish profile band
- Board area
- 0.052 m² · about 16 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for

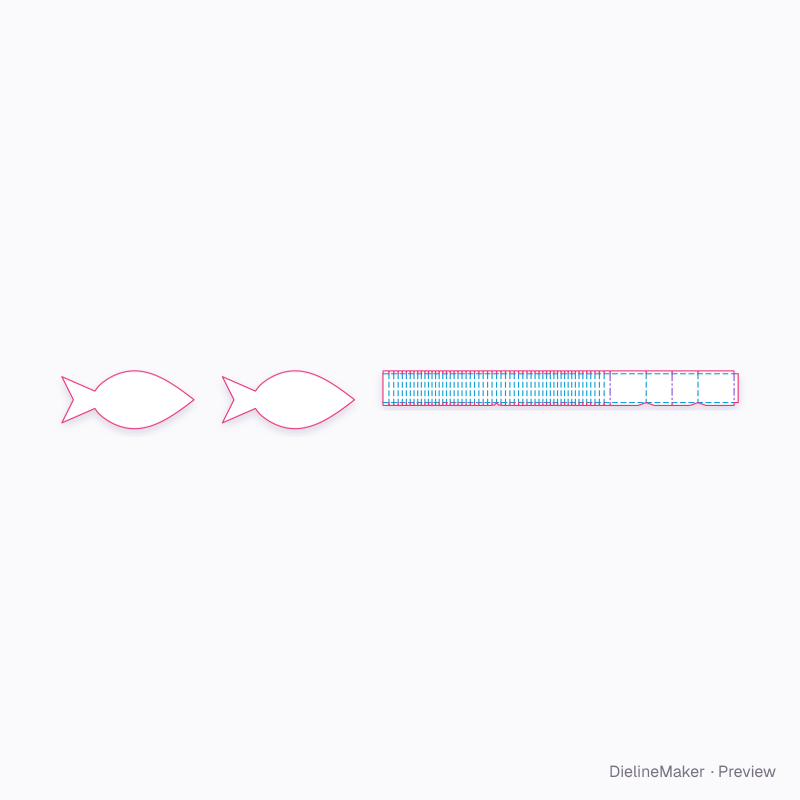

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-FISH-HANGING-CARTON-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| fish faceLeft fish face | 200.5 × 108.5 | L + T × – |
| fish faceRight fish face | 200.5 × 108.5 | L + T × – |
| Base wall ×2Fish profile band | 9.3 × 40 | – × W |
| Cap bonding tab ×2Fish profile band | 9.3 × 7 | – |
| Base wall ×2Fish profile band | 7.3 × 40 | – × W |
| Cap bonding tab ×2Fish profile band | 7.3 × 7 | – |
| Base wall ×2Fish profile band | 6.8 × 40 | – × W |
| Cap bonding tab ×2Fish profile band | 6.8 × 7 | – |
| Base wall ×2Fish profile band | 6.4 × 40 | – × W |
| Cap bonding tab ×2Fish profile band | 6.4 × 7 | – |
| Base wall ×2Fish profile band | 6.2 × 40 | – × W |
| Cap bonding tab ×2Fish profile band | 6.2 × 7 | – |
| Base wall ×2Fish profile band | 5.9 × 40 | – × W |
| Cap bonding tab ×2Fish profile band | 5.9 × 7 | – |
| Base wall ×2Fish profile band | 5.8 × 40 | – × W |
| Cap bonding tab ×2Fish profile band | 5.8 × 7 | – |
77 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Tail lengthmm
- Tail spreadmm
- Tail fork depthmm
- Tail root heightmm
- Hang tabon / off
- Hang hole diametermm
- Face bonding tabsmm
The fish-shaped hanging carton family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this hanging fish carton yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
