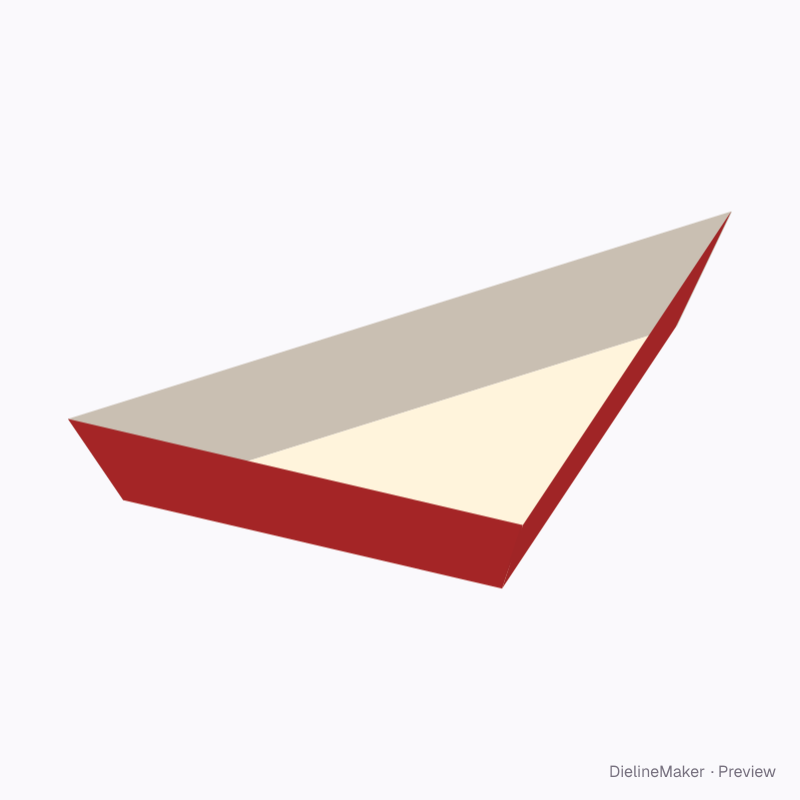

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FLARED-TRIANGLE-TRAY-01Food
Pizza slice tray dieline
An open serving tray with a triangular floor and three walls flared outward: equilateral or a pizza-slice shape, glued at the three corners. A ready-sized preset of the drafted triangular serving tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 230 × 30 mm
Outside150 × 230 × 30 mm
Flat blank322.8 × 209.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FLARED-TRIANGLE-TRAY-01
- Inside size
- Floor edge (crust) 150 · Slice length 230 · Wall height 30 mm
- Size range
- Floor edge (crust) 40–500 · Slice length 40–500 · Wall height 10–150 mm
- Manufacturing
- 150 × 230 × 30 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.040 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- Food kraft, PE-lined 320 g · 0.5 mm caliper
- Board options
- Food kraft PEKraft 350SBS 350E-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-FLARED-TRIANGLE-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for Food kraft, PE-lined 320 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floor | 241.9 × 142.6 | – |
| Back (crust) wall | 31.9 × 150 | – × L |
| Side wall ×2 | 241.9 × 31.9 | – |
| Hand-glue seam ×2 | 35.3 × 6.4 | – |
| Hand-glue seam | 46.3 × 8.3 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Floor shape2 options
- Wall flare°
- Corner glue tabmm
The drafted triangular serving tray family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this pizza slice tray yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
