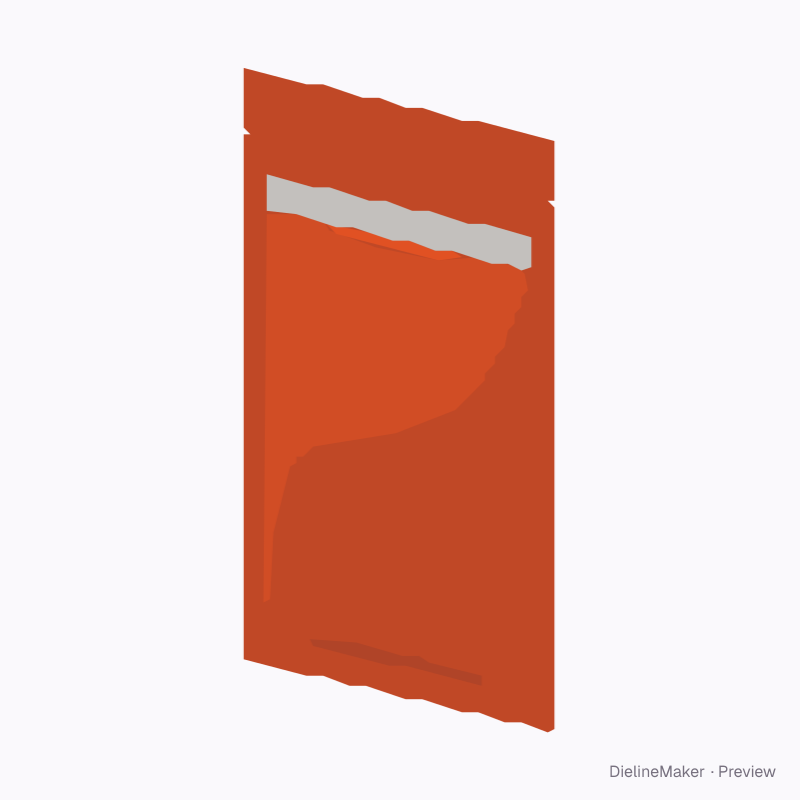

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CR-ZIP-POUCH-01Bags & pouches
Child-resistant zipper pouch 110 × 190 mm dieline
Opaque flat pouch for regulated edibles and pharmacy items: two webs, 8 mm side seals, a 10 mm tamper header and a certified child-resistant press-to-close zipper on a 12 mm attachment band set 6 mm lower than a standard zipper. A ready-sized preset of the flat reclosable zipper pouch — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside110 × 190 mm
Outside110 × 190 mm
Flat blank110 × 190 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CR-ZIP-POUCH-01
- Inside size
- Finished flat width 110 · Film height 190 mm
- Size range
- Finished flat width 65–300 · Film height 100–400 mm
- Manufacturing
- 110 × 190 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Front zipper-pouch web, Back zipper-pouch web
- Board area
- 0.042 m² · about 30 up on a 720 × 1020 mm sheet
- Default board
- Metallised PET / PE laminate · 0.09 mm caliper
- Board options
- White PET/PEMet PET/PEClear PET/PEKraft/PE
- Good for

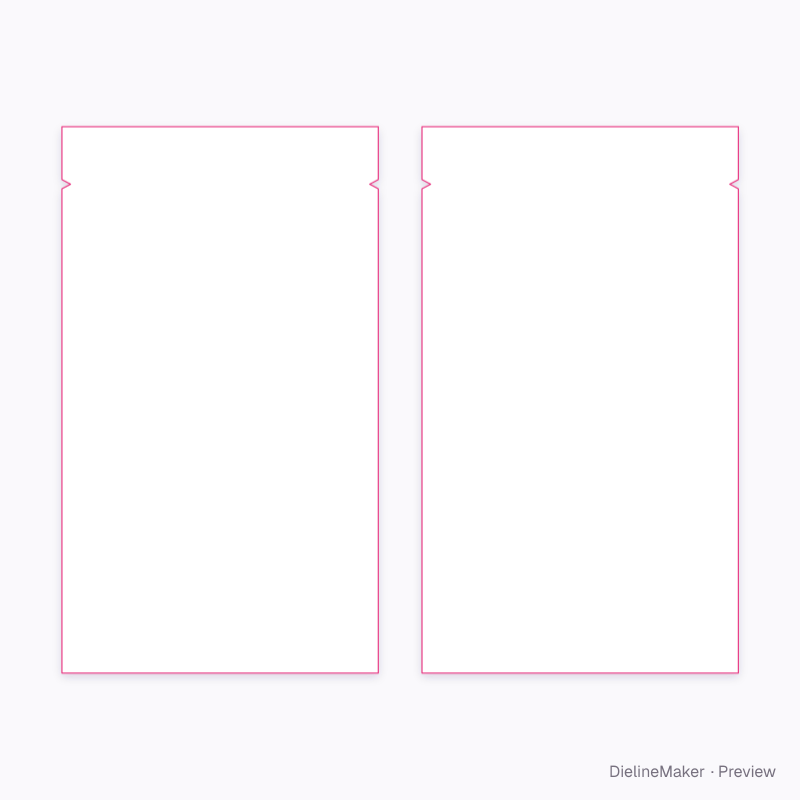

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 11 options; the template and 3D preview follow each change.
- Zipper construction2 options
- Child-resistant closureon / off
- Film construction2 options
- Side sealsmm
- Tear notcheson / off
- Hang hole6 options
- Vacuum packedon / off
- End seal widthmm
- Zipper centre from topmm
- Tear notch from topmm
- Preview fill%
The flat reclosable zipper pouch family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Before you choose this template
Size, materials, downloads and production checks.
Will the child-resistant zipper pouch 110 × 190 mm dieline fit my product?
Opaque flat pouch for regulated edibles and pharmacy items: two webs, 8 mm side seals, a 10 mm tamper header and a certified child-resistant press-to-close zipper on a 12 mm attachment band set 6 mm lower than a standard zipper. The default dimensions in inside-size mode are Finished flat width 110 mm, Film height 190 mm. Measure your product and any inserts or wrapping, then set the template size. Check a physical sample with your contents before ordering production.
Can I change the size and design?
Yes. The supported ranges are Finished flat width 65–300 mm, Film height 100–400 mm. At the default settings, the editor also exposes Zipper construction, Child-resistant closure, Film construction, Side seals, Tear notches, Hang hole and 5 more options. Add your own artwork and preview the result in 3D. The template geometry is rebuilt when its dimensions change.
Which materials can I choose?
The default is Metallised PET / PE laminate (0.09 mm caliper). This structure allows White PET / PE laminate, Metallised PET / PE laminate, Clear PET / PE laminate, Kraft paper / PE laminate. Select the stock before checking fit, and ask your converter to confirm the grade and caliper for the intended product.
Which files can I download?
The template page offers dimensioned PDF, Illustrator (.ai via script), layered SVG and DXF cutting and crease geometry. After adding artwork in the editor, you can export a print-ready PDF and review the bleed, safe areas and dieline layers with your printer.
Is this dieline free?
Browsing the previews is free, and you can customize the template after signing in with Google. Template and print-file downloads require a Pro or Business plan. The Free plan allows one eligible download every 8 hours; free mockups, renders and videos carry a watermark. See the pricing page for the current plans.
Can I send the download straight to production?
Use the file as a starting point for a printer or converter review. Confirm the finished dimensions, stock, crease and cutting setup, assembly, bleed and artwork, then approve a physical sample. The 3D preview does not test strength, transit performance or suitability for particular contents.
