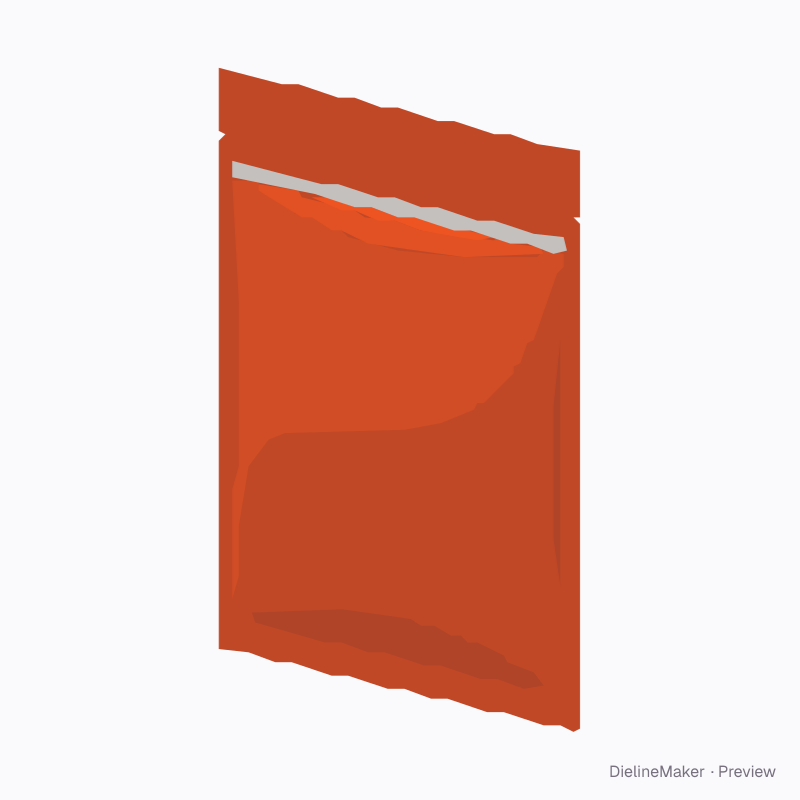

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Flat snack zipper pouch 100 g dieline
A flat pouch with a press-to-close zipper and heat-sealed tamper header. Choose two webs with four sealed edges or one web folded at the left edge with three seals. Exports show the actual film cuts, inside seal bands and zipper attachment area. This pouch has no bottom gusset; nominal contents are editable starting examples. An exposed slider option previews a separately supplied closure on two film webs. A ready-sized preset of the flat reclosable zipper pouch — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside130 × 190 mm
Outside130 × 190 mm
Flat blank130 × 190 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Finished flat width 130 · Film height 190 mm
- Size range
- Finished flat width 65–300 · Film height 100–400 mm
- Manufacturing
- 130 × 190 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Front zipper-pouch web, Back zipper-pouch web
- Board area
- 0.049 m² · about 25 up on a 720 × 1020 mm sheet
- Default board
- White PET / PE laminate · 0.09 mm caliper
- Board options
- White PET/PEMet PET/PEClear PET/PEKraft/PE
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 10 options; the template and 3D preview follow each change.
- Zipper construction2 options
- Film construction2 options
- Side sealsmm
- Tear notcheson / off
- Hang hole6 options
- Vacuum packedon / off
- End seal widthmm
- Zipper centre from topmm
- Tear notch from topmm
- Preview fill%
The flat reclosable zipper pouch family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this flat snack zipper pouch 100 g yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
