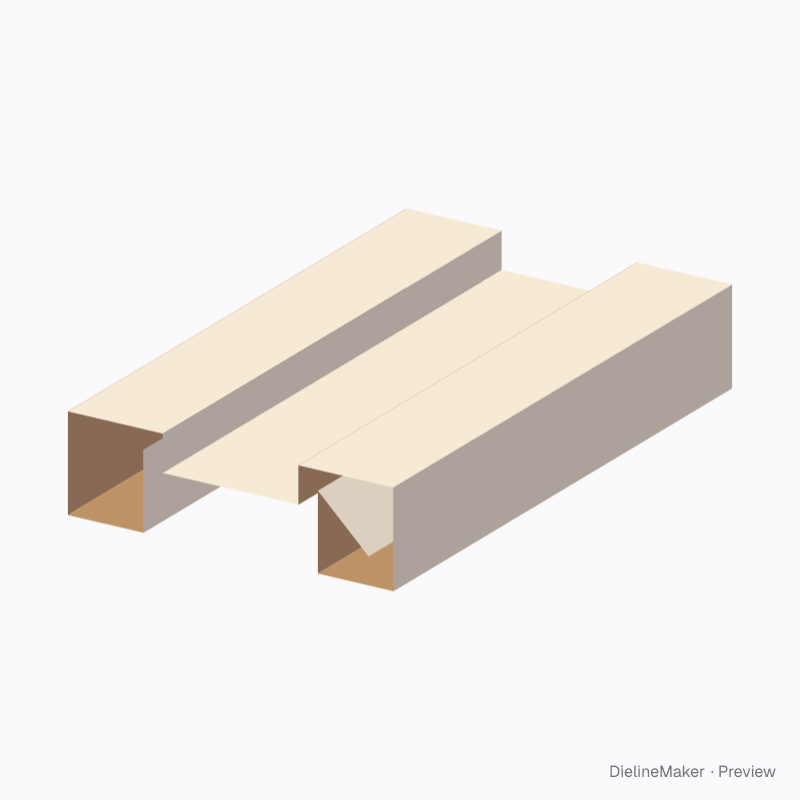

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0948Trays & lids
Braced ends with web 240×70×400 dieline
Two braced box ends joined by a web stepped down from their tops. A ready-sized preset of the folded profile insert — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside240 × 70 × 400 mm
Outside243.2 × 73.2 × 400 mm
Flat blank760.8 × 400 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0948
- Inside size
- Span 240 · Profile height 70 · Length 400 mm
- Size range
- Span 30–800 · Profile height 10–600 · Length 30–1500 mm
- Manufacturing
- 240 × 70 × 400 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.304 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KEB doubleF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0948 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Ply | 52.2 × 400 | – × H |
| Ply 2 | 56 × 400 | – × H |
| Ply 3 | 55.6 × 400 | – × H |
| Ply 4 | 70 × 400 | W × H |
| Ply 5 | 70 × 400 | W × H |
| Ply 6 | 26.6 × 400 | – × H |
| Ply 7 | 100 × 400 | – × H |
| Ply 8 | 26.6 × 400 | – × H |
| Ply 9 | 70 × 400 | W × H |
| Ply 10 | 70 × 400 | W × H |
| Ply 11 | 55.6 × 400 | – × H |
| Ply 12 | 56 × 400 | – × H |
| Ply 13 | 52.2 × 400 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Profile25 options
- Footmm
- Leg widthmm
The folded profile insert family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this braced ends with web 240×70×400 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
