The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CAPPED-AUTO-TUBE-01Tuck end
Capped bottle tube dieline
A tall crash-lock-bottom tube closed by a separate shallow folding cap, optionally carried by a separate doubled handle passing through the cap. A ready-sized preset of the auto-bottom tube with folding cap — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 90 × 320 mm
Outside91.2 × 91.2 × 321.2 mm
Flat blank373.8 × 375.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CAPPED-AUTO-TUBE-01
- Inside size
- Length 90 · Width 90 · Height 320 mm
- Size range
- Length 40–300 · Width 40–300 · Height 80–500 mm
- Manufacturing
- 90.6 × 90.6 × 320.6 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Tube, Folding cap
- Board area
- 0.156 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350FBB 400Kraft 350F-fluteE-flute WSBS 18 pt
- Good for

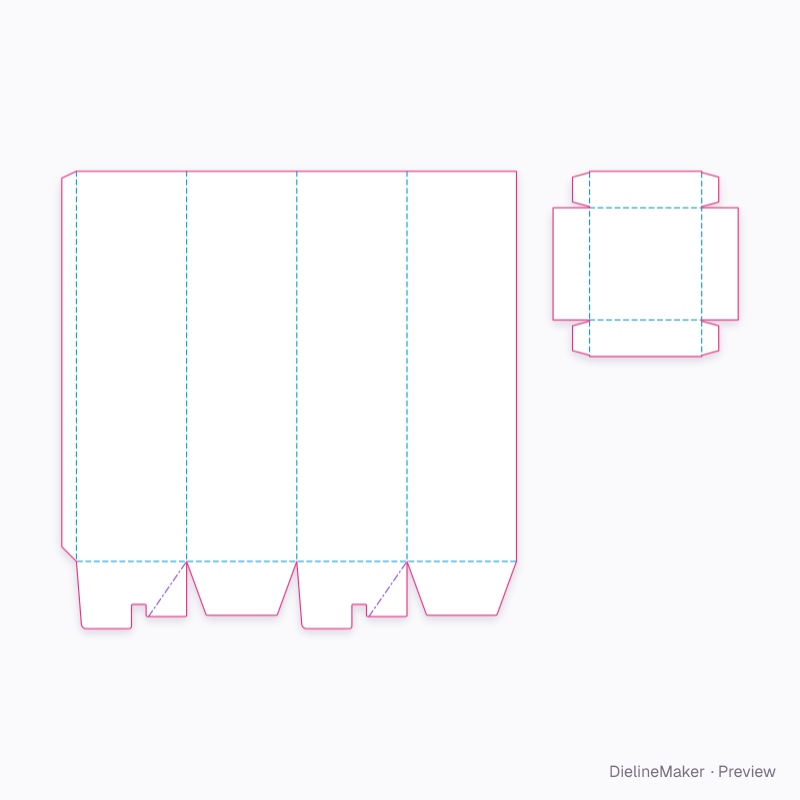

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CAPPED-AUTO-TUBE-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontTube | 90.6 × 320.6 | L + T × H + T |
| Left sideTube | 90.6 × 320.6 | W + T × H + T |
| BackTube | 90.6 × 320.6 | L + T × H + T |
| Right sideTube | 90 × 320.6 | W × H + T |
| Glue flapTube | 12 × 320.6 | – × H + T |
| Crash-lock flap (back)Tube | 90.6 × 55.3 | – |
| Glued web ×2Tube | 25.3 × 55.1 | – |
| Bottom side flapTube | 90.6 × 44.3 | – |
| Crash-lock flap (front)Tube | 90.6 × 55.3 | – |
| Bottom side flapTube | 90 × 44.3 | – |
| Cap topFolding cap | 92.2 × 92.2 | – |
| Cap skirt ×2Folding cap | 92.2 × 30 | – |
| Cap skirt ×2Folding cap | 30 × 92.2 | – |
| Glue flap ×4Folding cap | 14 × 28 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Cap depthmm
- Separate handle inserton / off
The auto-bottom tube with folding cap family
The same structure with sizes, boards and options set for a use.
