DM-SEPARATE-HANDLE-INSERT-01Tuck end
Capped tube with separate carry handle dieline
A tall crash-lock-bottom tube closed by a separate shallow folding cap, optionally carried by a separate doubled handle passing through the cap. A ready-sized preset of the auto-bottom tube with folding cap — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 100 × 300 mm
Outside101.8 × 101.8 × 301.8 mm
Flat blank422.7 × 362.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SEPARATE-HANDLE-INSERT-01
- Inside size
- Length 100 · Width 100 · Height 300 mm
- Size range
- Length 40–300 · Width 40–300 · Height 80–500 mm
- Manufacturing
- 100.9 × 100.9 × 300.9 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Tube, Folding cap, Separate handle insert
- Board area
- 0.182 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- F-flute micro corrugated · 0.9 mm caliper
- Board options
- SBS 350FBB 400Kraft 350F-fluteE-flute WSBS 18 pt
- Good for

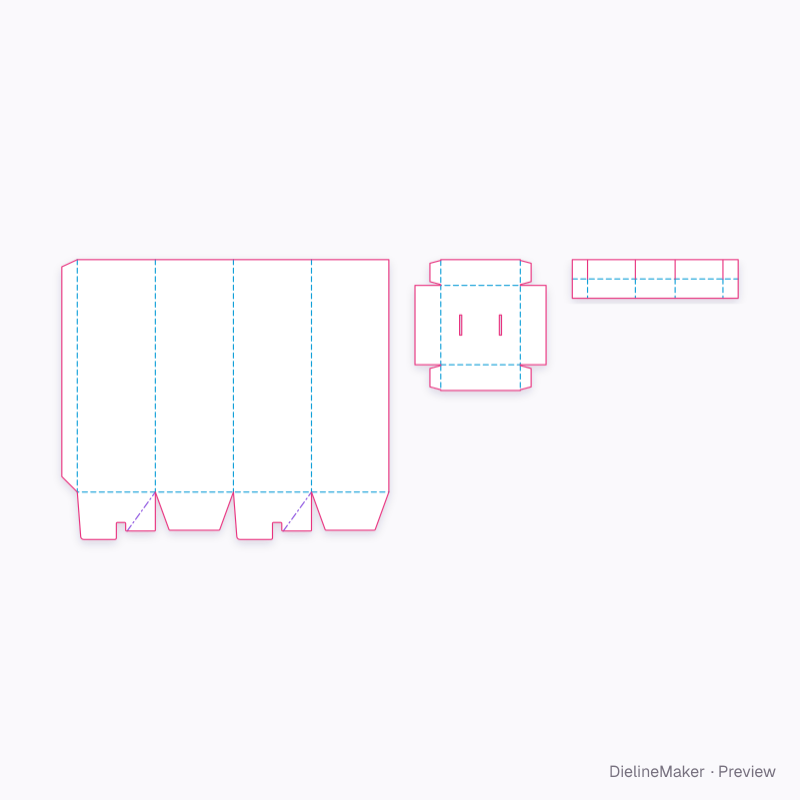

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SEPARATE-HANDLE-INSERT-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.9 mm for F-flute micro corrugated). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontTube | 100.9 × 300.9 | L + T × H + T |
| Left sideTube | 100.9 × 300.9 | W + T × H + T |
| BackTube | 100.9 × 300.9 | L + T × H + T |
| Right sideTube | 100 × 300.9 | W × H + T |
| Glue flapTube | 20 × 300.9 | – × H + T |
| Crash-lock flap (back)Tube | 100.9 × 61.4 | – |
| Glued web ×2Tube | 29.1 × 62.2 | – |
| Bottom side flapTube | 100.9 × 49.4 | – |
| Crash-lock flap (front)Tube | 100.9 × 61.4 | – |
| Bottom side flapTube | 100 × 49.4 | – |
| Cap topFolding cap | 102.8 × 102.8 | – |
| Cap skirt ×2Folding cap | 102.8 × 33.3 | – |
| Cap skirt ×2Folding cap | 33.3 × 102.8 | – |
| Glue flap ×4Folding cap | 14 × 31.3 | – |
| Handle ×2Separate handle insert | 19.7 × 25 | – |
| Handle doubling ply ×2Separate handle insert | 19.7 × 25 | – |
4 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Cap depthmm
- Separate handle inserton / off
- Handle risemm
- Handle strip widthmm
