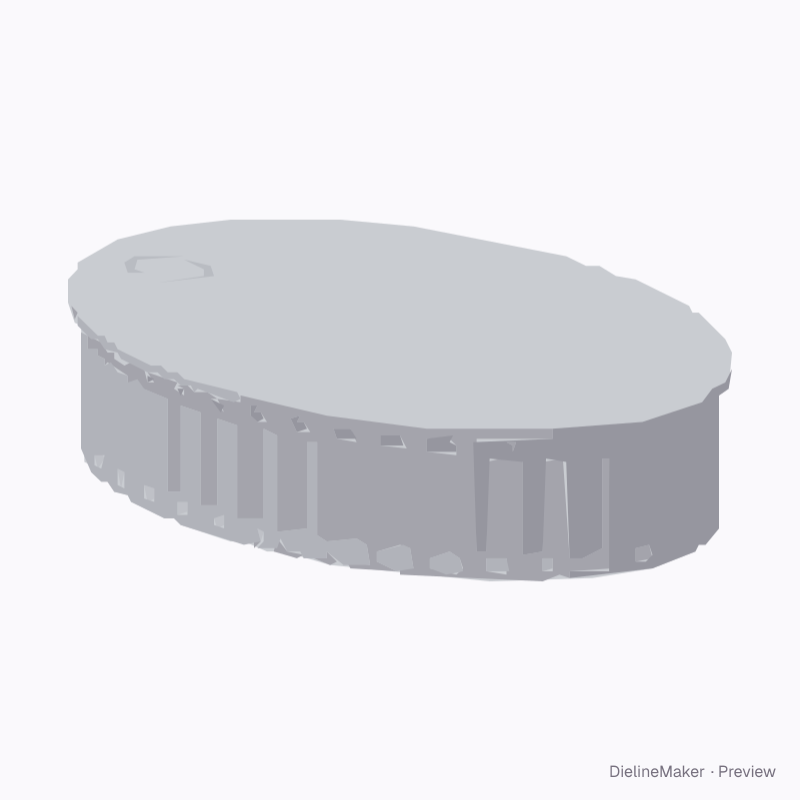

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FOODTIN-01Labels
Oval easy-open can dieline
A shallow drawn food can: rounded-rectangle, stadium, oval or round, with optional wall flutes and a ring-pull lid. A ready-sized preset of the formed food tin — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside150 × 100 × 35 mm
Outside150 × 100 × 35 mm
Flat blank145 × 95 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FOODTIN-01
- Inside size
- Length 150 · Width 100 · Height 35 mm
- Size range
- Length 40–220 · Width 30–160 · Height 12–90 mm
- Manufacturing
- 150 × 100 × 35 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.011 m² · about 45 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Footprint4 options
- Wall flutescount
- Lid3 options
- Print wall bandon / off
- Metal3 options
The formed food tin family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this oval easy-open can yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
