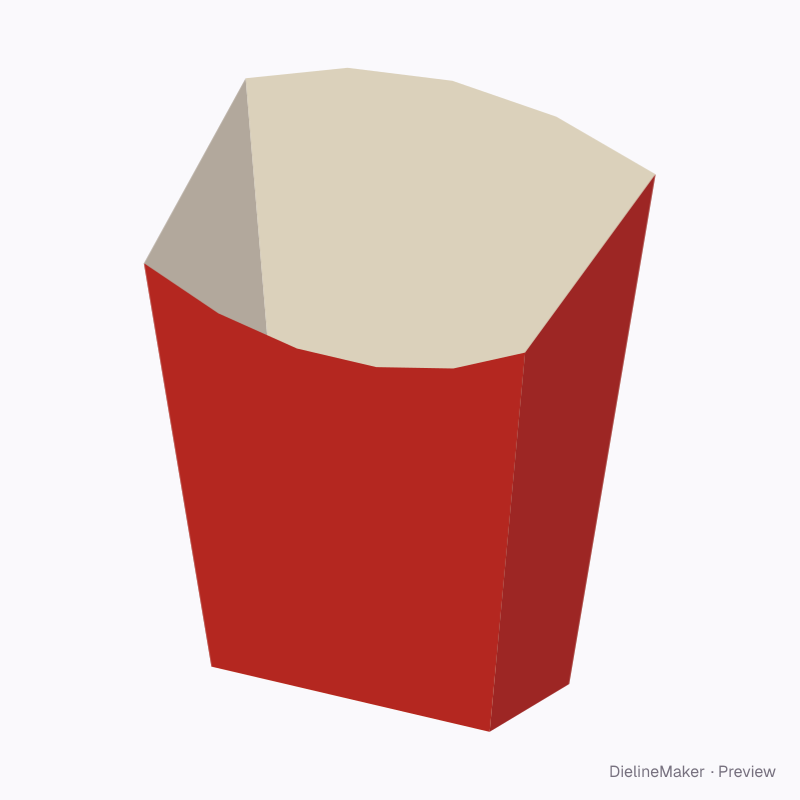

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureFood
Fries scoop, medium dieline
The everyday fries scoop with a crowned back. A ready-sized preset of the fries scoop — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside88 × 40 × 110 mm
Outside88.9 × 40.9 × 110.5 mm
Flat blank257.3 × 139 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 88 · Depth 40 · Height 110 mm
- Size range
- Width 50–180 · Depth 25–160 · Height 50–260 mm
- Manufacturing
- 88.5 × 40.5 × 110.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.023 m² · about 15 up on a 720 × 1020 mm sheet
- Default board
- Food SBS, PE-coated 300 g · 0.45 mm caliper
- Board options
- Food SBS PESBS 350Food kraft PEKraft 350SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Top edge3 options
- Wall taper°
- Front/back taper°
- Front heightmm
- Back crownmm
- Scoop cutmm
- Bottom2 options
The fries scoop family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this fries scoop, medium yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
