Preview image

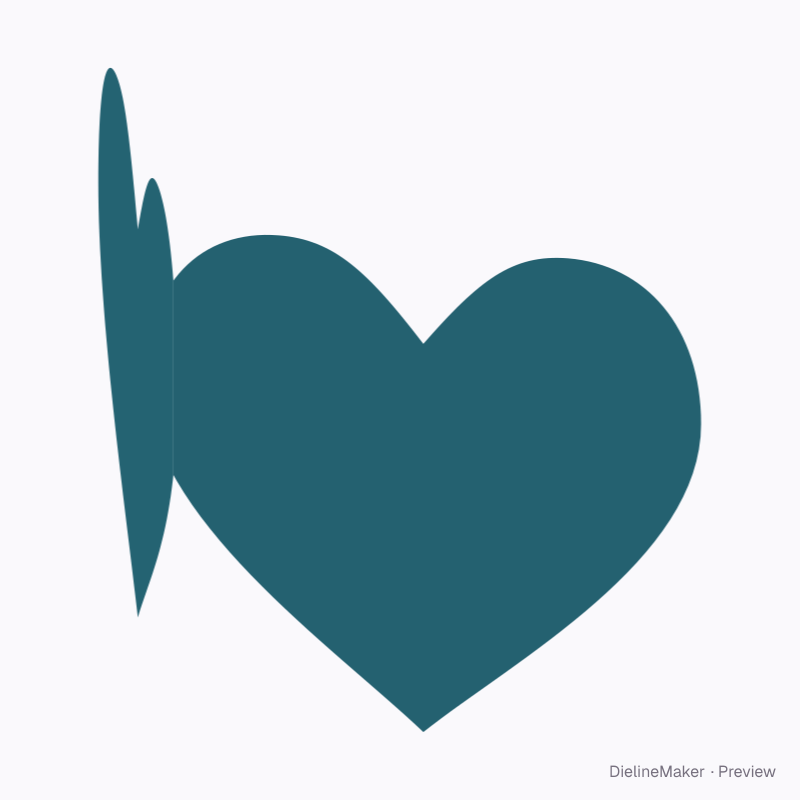

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Folded heart card dieline
130 × 120 mm heart card folded along one side lobe. A ready-sized preset of the greeting card — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside130 × 120 mm
Outside130 × 120 mm
Flat blank247 × 120 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 130 · Height 120 mm
- Size range
- Width 50–300 · Height 40–300 mm
- Manufacturing
- 130 × 120 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.021 m² · about 18 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400SBS 300Kraft 350Black 350Paper 170SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Cover | 123.5 × 120 | – × H |
| Back | 123.5 × 48 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Fold2 options
- Corner radiusmm
- Card shape4 options
- Fold length%
