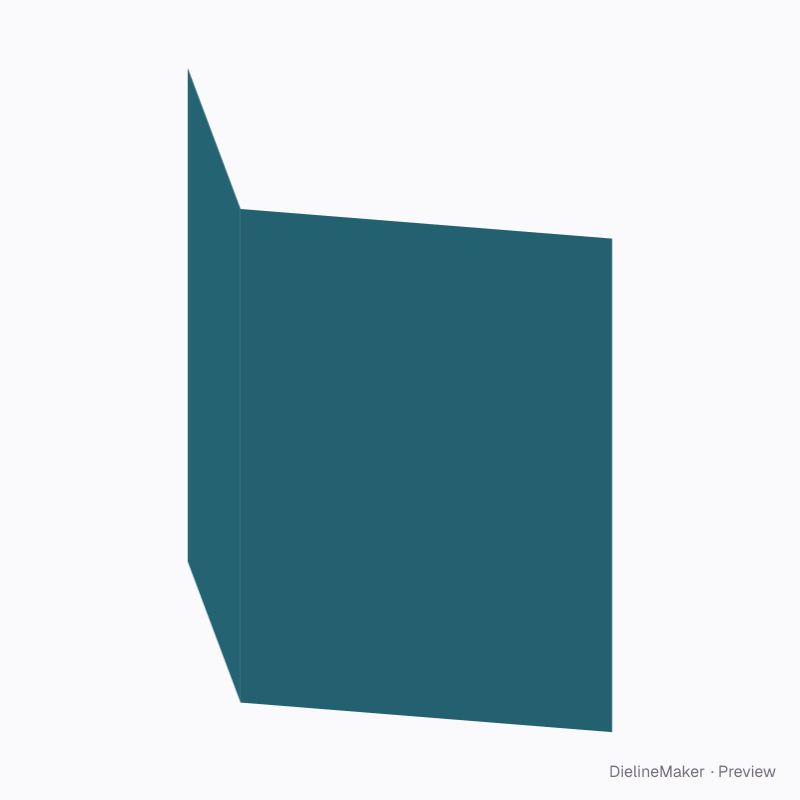

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
5 × 7 in card dieline
US invitation and greeting size. A ready-sized preset of the greeting card — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside127 × 177.8 mm
Outside127 × 177.8 mm
Flat blank254 × 177.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 127 · Height 177.8 mm
- Size range
- Width 50–300 · Height 40–300 mm
- Manufacturing
- 127 × 177.8 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.045 m² · about 10 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350FBB 400SBS 300Kraft 350Black 350Paper 170SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Cover | 127 × 177.8 | W × H |
| Back | 127 × 177.8 | W × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Fold2 options
- Corner radiusmm
- Card shape4 options
The greeting card family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 5 × 7 in card yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
