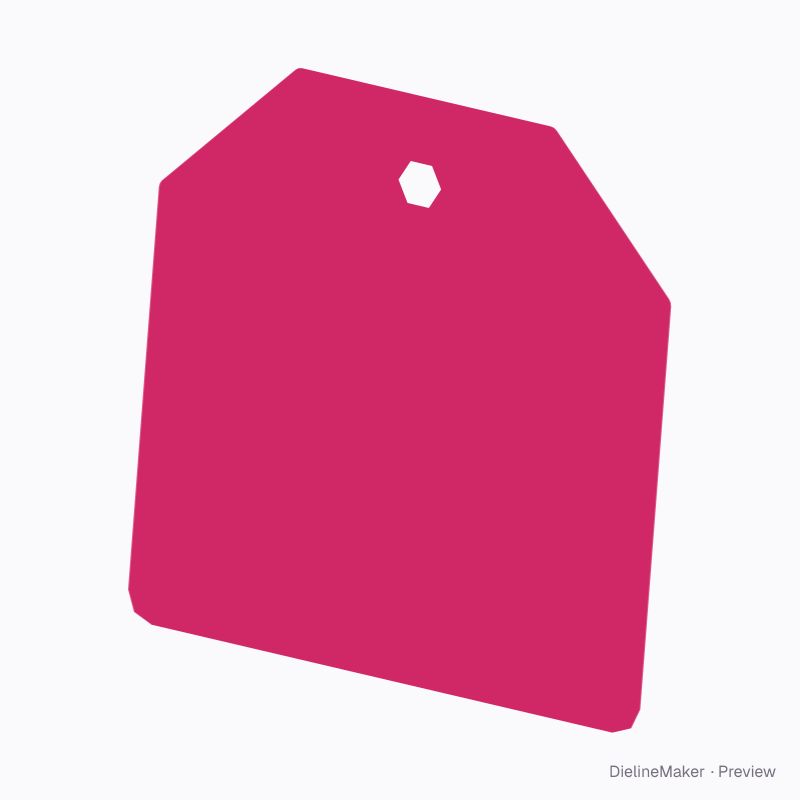

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
60 mm square tag dieline
60 × 60 mm finished format with editable dimensions and artwork. A ready-sized preset of the hang tag — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside60 × 60 mm
Outside60 × 60 mm
Flat blank60 × 60 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 60 · Height 60 mm
- Size range
- Width 20–150 · Height 30–250 mm
- Manufacturing
- 60 × 60 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.003 m² · about 150 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 300GD2 350PET 0.3SBS 18 pt
- Good for

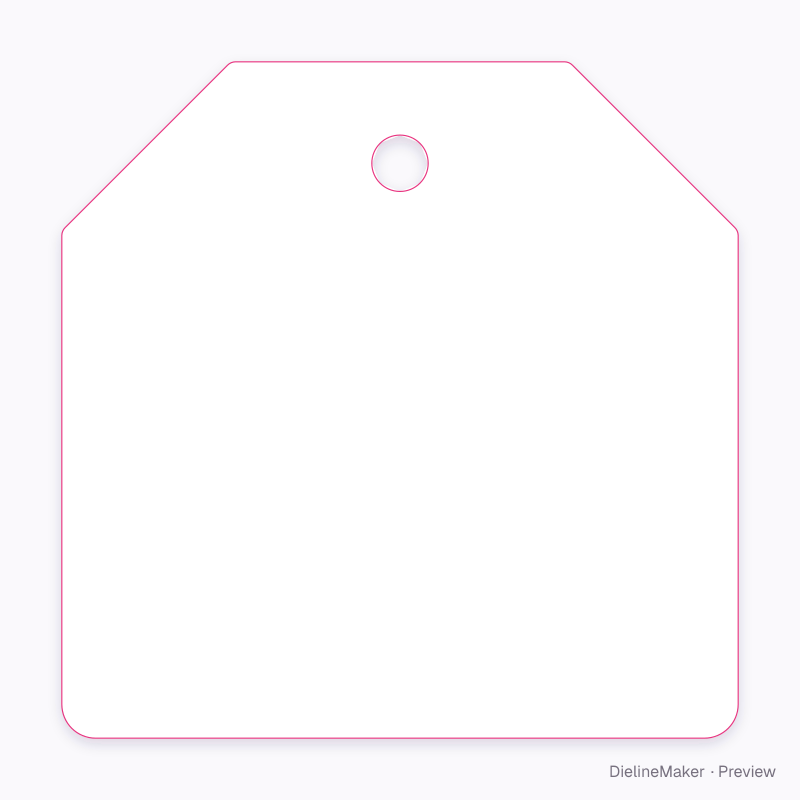

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 10 options; the template and 3D preview follow each change.
- Shape3 options
- Corner radiusmm
- Corner clipmm
- String holeon / off
- Hole sizemm
- Hole from leftmm
- Clipped corners3 options
- Hole from topmm
- Hanging aperture3 options
- Layers3 options
The hang tag family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 60 mm square tag yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
