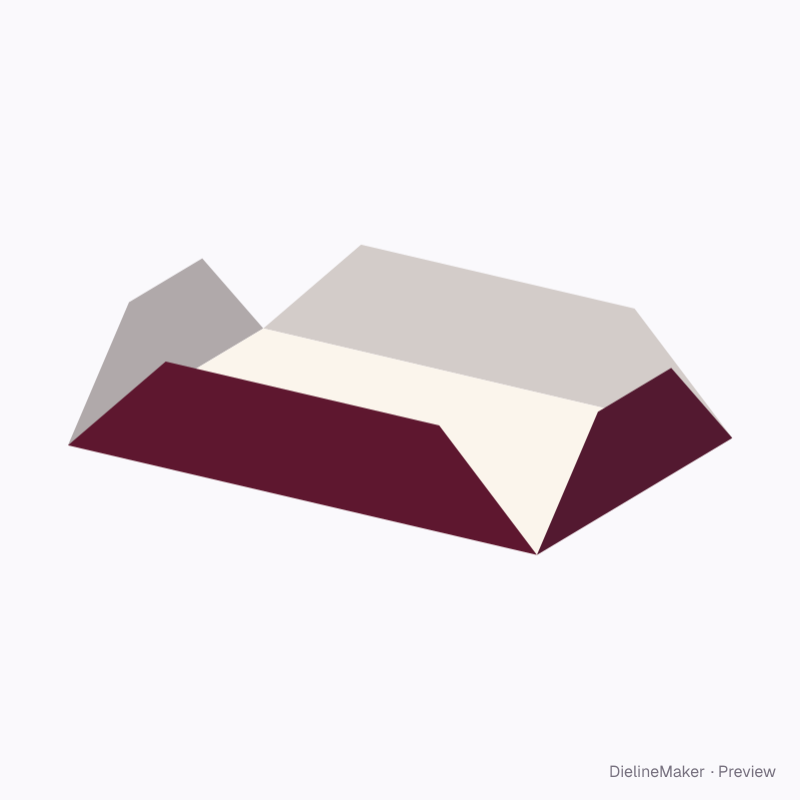

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-HARDBOARD-JOINT-01Rigid
V-cut greyboard tray dieline

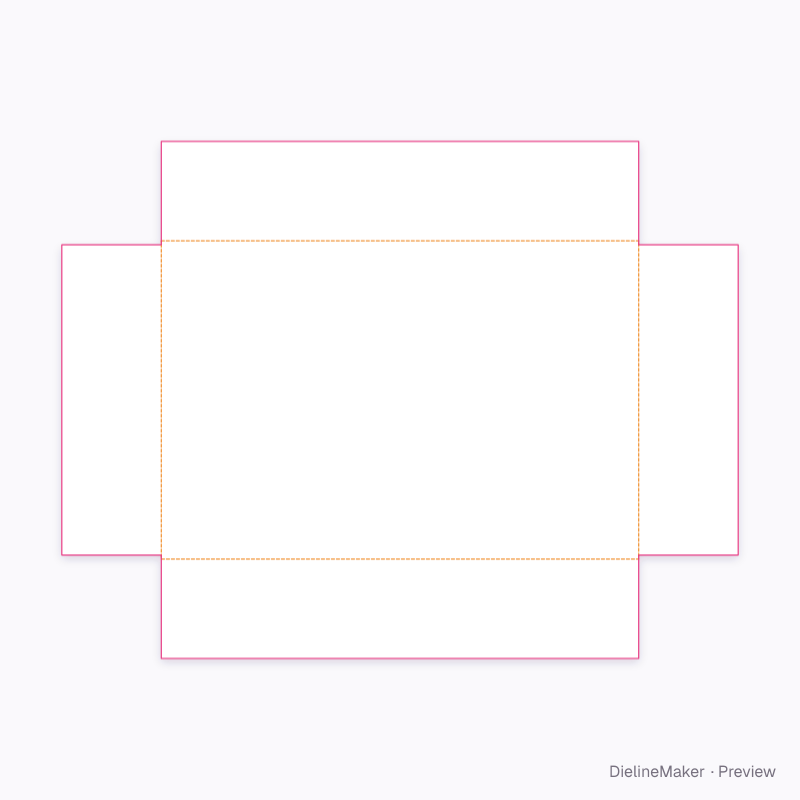

A one-piece greyboard tray blank whose walls fold on half-cuts or routed V-grooves. A ready-sized preset of the hardboard tray (half-cut or v-cut) — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside240 × 160 × 50 mm
Outside244 × 164 × 54 mm
Flat blank340 × 260 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-HARDBOARD-JOINT-01
- Inside size
- Length 240 · Width 160 · Height 50 mm
- Size range
- Length 40–600 · Width 40–500 · Height 10–200 mm
- Manufacturing
- 242 × 162 × 52 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.068 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5Chipboard 2Chipboard 1.2
- Good for
The flat dieline

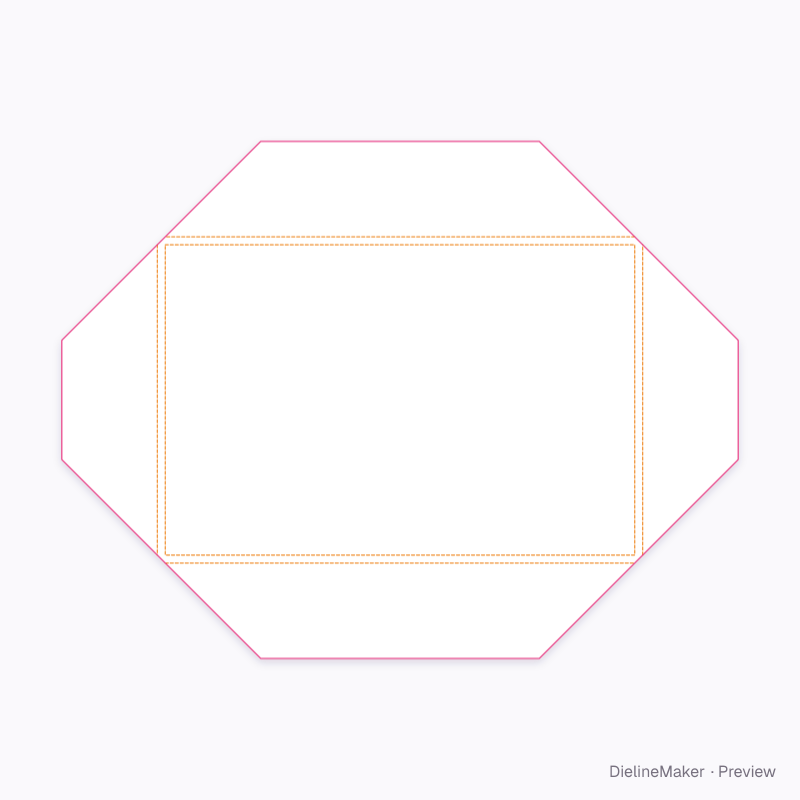

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Kiss cut
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-HARDBOARD-JOINT-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Board centre | 240 × 160 | L × W |
| Front wall | 240 × 50 | L × H |
| Back wall | 240 × 50 | L × H |
| Left wall | 50 × 160 | H × W |
| Right wall | 50 × 160 | H × W |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Fold joint2 options
The hardboard tray (half-cut or v-cut) family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this v-cut greyboard tray yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
