A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementCards & tags
Royal 156 × 234 mm page-format hardcover book case and page template
162 × 240 mm cover with an editable 26 mm spine. Confirm bound thickness with your printer. A ready-sized preset of the hardcover book — adjust the object dimensions and decoration area to preview your artwork at size.
Object size162 × 26 × 240 mm
Artwork area400 × 276 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Cover board width 162 · Finished spine 26 · Cover board height 240 mm
- Size range
- Cover board width 85–350 · Finished spine 8–70 · Cover board height 110–400 mm
- Parts
- 6 parts — Outer case wrap with turn-ins, Inner paper liner, back board · cut reference, spine board · cut reference, front board · cut reference, Page-block trim reference
- Artwork area
- 0.315 m²
- Good for

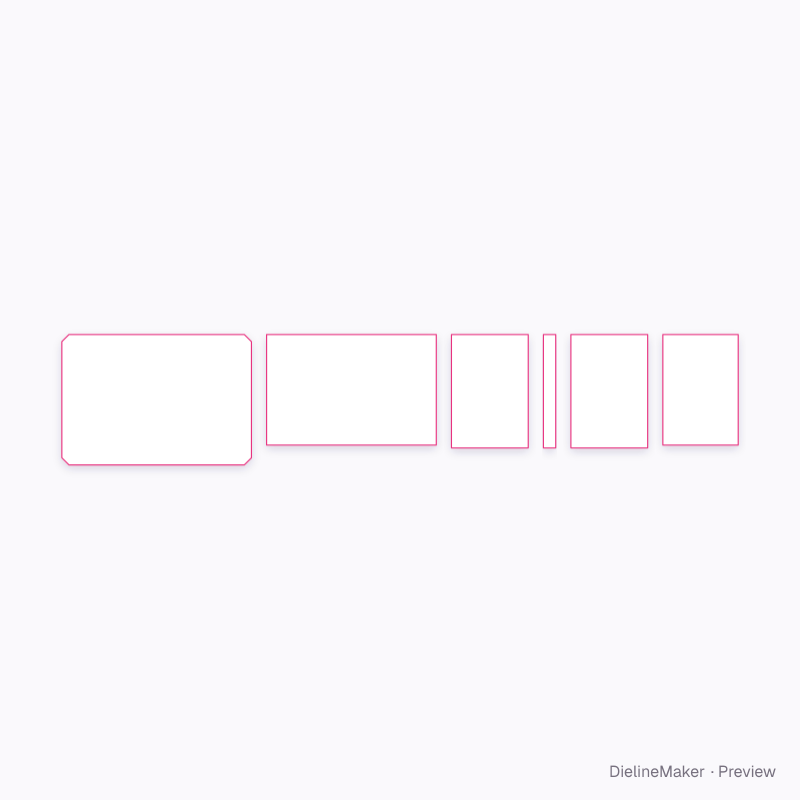

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 10 options; the template and 3D preview follow each change.
- Cover opening°
- Wrap turn-inmm
- Board hinge gapmm
- Editable bound interior spreadon / off
- Page-block insetmm
- Dust jacketon / off
- Leaves2 options
- Swiss binding (exposed spine)on / off
- Rounded spineon / off
- Clear shrink wrapon / off
The hardcover book family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this royal 156 × 234 mm page-format hardcover book yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
