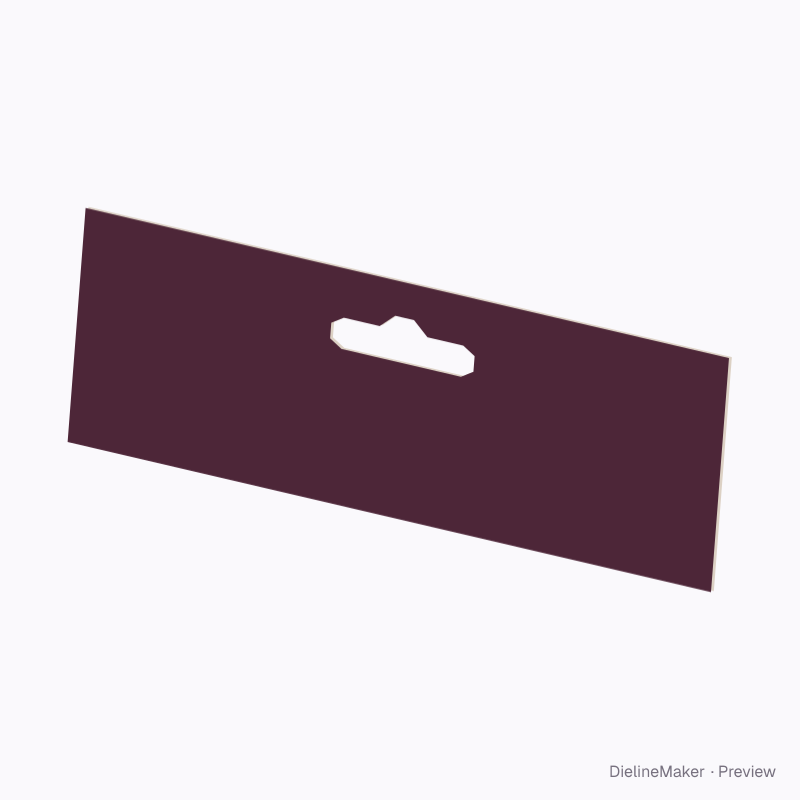

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureDisplay
Candy bag header card dieline
Peg-hung header for a bag of sweets or gummy bears. A ready-sized preset of the header card — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside140 × 45 mm
Outside140 × 45 mm
Flat blank140 × 90 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 140 · Folded height 45 mm
- Size range
- Width 40–300 · Folded height 20–150 mm
- Manufacturing
- 140 × 45 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.013 m² · about 42 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350Black 350GD2 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front ply | 140 × 45 | W × H |
| Back ply | 140 × 45 | W × Back ply |
