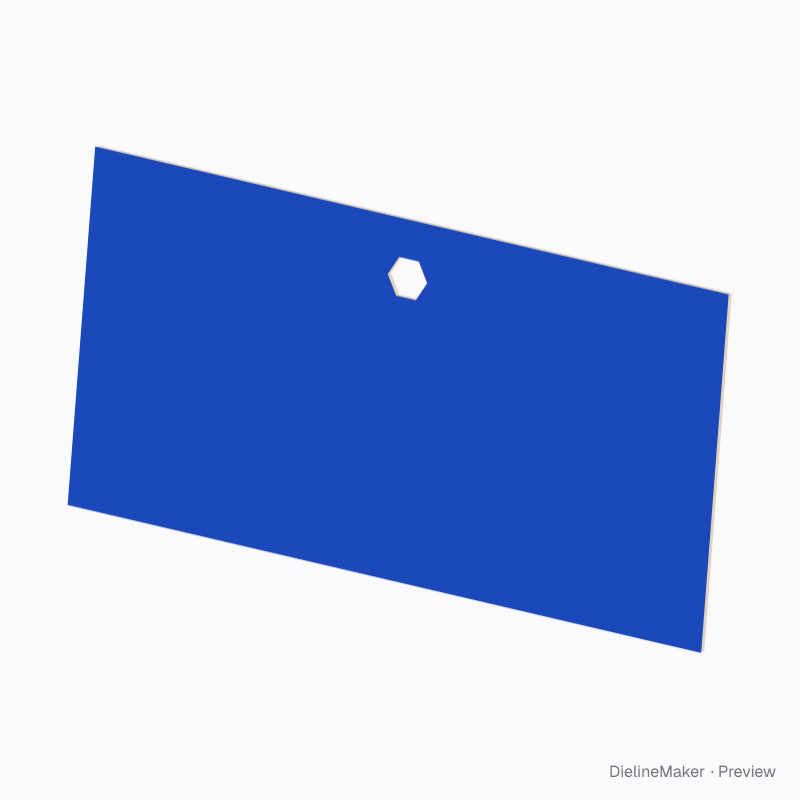

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureDisplay
Bag topper 5 × 2.5 in dieline
Folded topper for 5 in snack, coffee and spice bags. A ready-sized preset of the header card — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside127 × 63.5 mm
Outside127 × 63.5 mm
Flat blank127 × 127 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 127 · Folded height 63.5 mm
- Size range
- Width 40–300 · Folded height 20–150 mm
- Manufacturing
- 127 × 63.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.016 m² · about 35 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350Black 350GD2 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front ply | 127 × 63.5 | W × H |
| Back ply | 127 × 63.5 | W × Back ply |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Hang hole3 options
- Hole sizemm
- Back plymm
- Corner radiusmm
