The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA C10.40.20.20Shapes
Mini polygon favour carton — Hexagon box dieline
Editable 55 × 45 mm starting point using hexagon box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the hexagon box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 55 × 45 mm
OutsideØ 56 × 46 mm
Flat blank207.8 × 184 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA C10.40.20.20
- Inside size
- Across flats 55 · Height 45 mm
- Size range
- Across flats 30–300 · Height 20–400 mm
- Manufacturing
- Ø 55.5 × 45.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.019 m² · about 20 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350F-fluteSBS 18 pt
- Good for

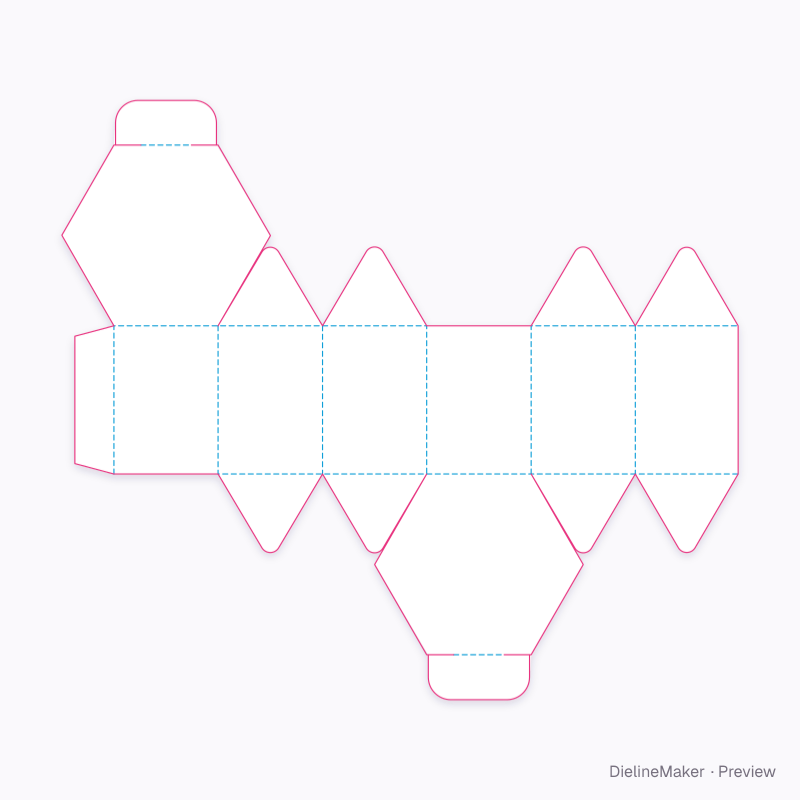

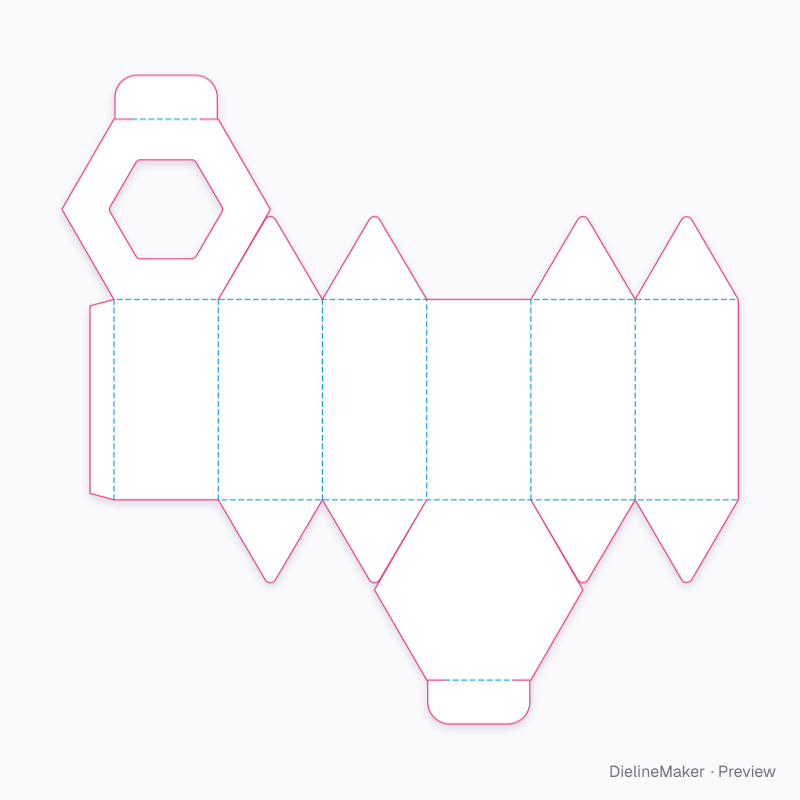

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA C10.40.20.20 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back | 32 × 45.5 | (ICD + T)·tan 30° × H + T |
| Back left | 32 × 45.5 | (ICD + T)·tan 30° × H + T |
| Front left | 32 × 45.5 | (ICD + T)·tan 30° × H + T |
| Front | 32 × 45.5 | (ICD + T)·tan 30° × H + T |
| Front right | 32 × 45.5 | (ICD + T)·tan 30° × H + T |
| Back right | 31.5 × 45.5 | (ICD + T)·tan 30° − T × H + T |
| Glue flap | 12 × 45.5 | – × H + T |
| Top lid | 32 × 55.5 | side (ICD + T)·tan 30° × – |
| Tuck ×2 | 31 × 13.8 | – |
| Bottom lid | 32 × 55.5 | – × L + T |
| Top dust flap ×3 | 32 × 23.9 | – |
| Bottom dust flap ×3 | 32 × 23.9 | – |
| Top dust flap | 31.5 × 23.9 | – |
| Bottom dust flap | 31.5 × 23.9 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Tuck depthmm
- Slit lockon / off
- Hexagonal lid windowon / off
