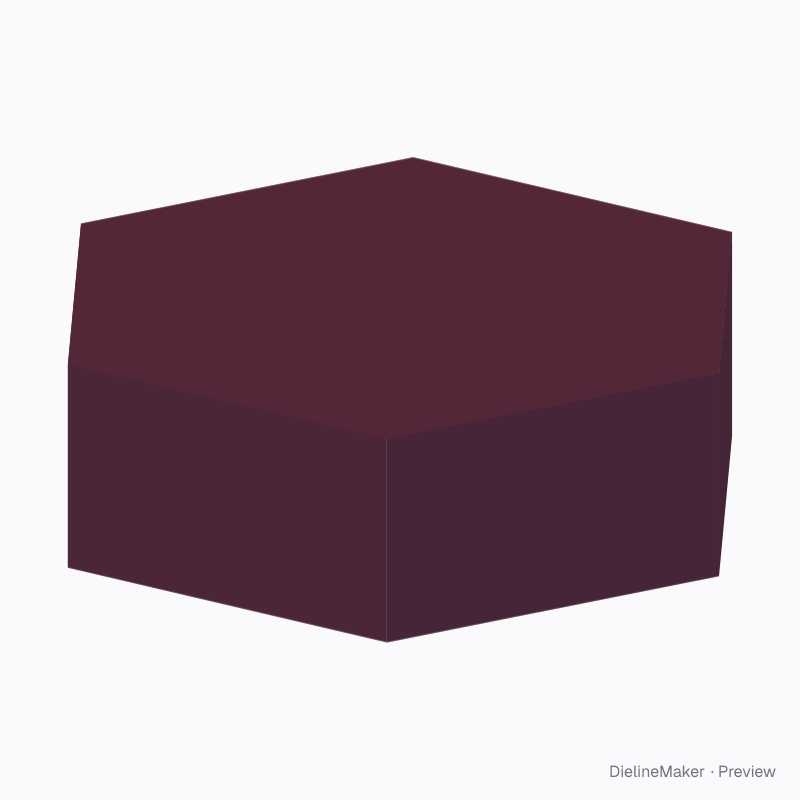

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA C10.40.20.20Shapes
Chocolate hexagon dieline
Low hexagon for pralines. A ready-sized preset of the hexagon box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 120 × 40 mm
OutsideØ 121 × 41 mm
Flat blank451.7 × 325.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA C10.40.20.20
- Inside size
- Across flats 120 · Height 40 mm
- Size range
- Across flats 30–300 · Height 20–400 mm
- Manufacturing
- Ø 120.5 × 40.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.062 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Black-core board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350F-fluteSBS 18 pt
- Good for
The flat dieline

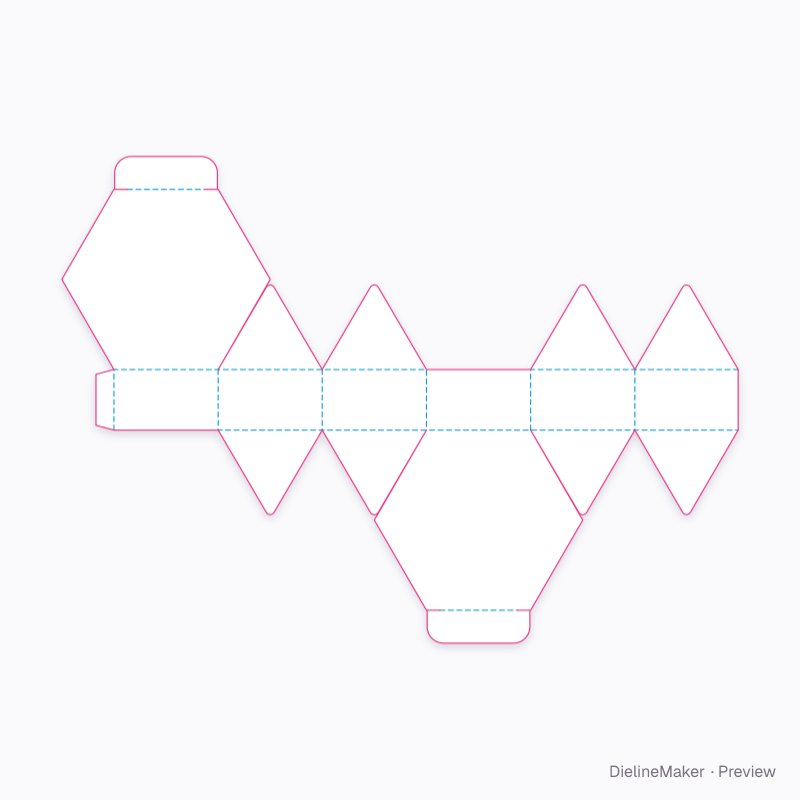

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA C10.40.20.20 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for Black-core board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back | 69.6 × 40.5 | (ICD + T)·tan 30° × H + T |
| Back left | 69.6 × 40.5 | (ICD + T)·tan 30° × H + T |
| Front left | 69.6 × 40.5 | (ICD + T)·tan 30° × H + T |
| Front | 69.6 × 40.5 | (ICD + T)·tan 30° × H + T |
| Front right | 69.6 × 40.5 | (ICD + T)·tan 30° × H + T |
| Back right | 69.1 × 40.5 | (ICD + T)·tan 30° − T × H + T |
| Glue flap | 12 × 40.5 | – × H + T |
| Top lid | 69.6 × 120.5 | side (ICD + T)·tan 30° × – |
| Tuck ×2 | 68.6 × 22 | – |
| Bottom lid | 69.6 × 120.5 | – × L + T |
| Top dust flap ×3 | 69.6 × 56.4 | – |
| Bottom dust flap ×3 | 69.6 × 56.4 | – |
| Top dust flap | 69.1 × 56.3 | – |
| Bottom dust flap | 69.1 × 56.3 | – |
