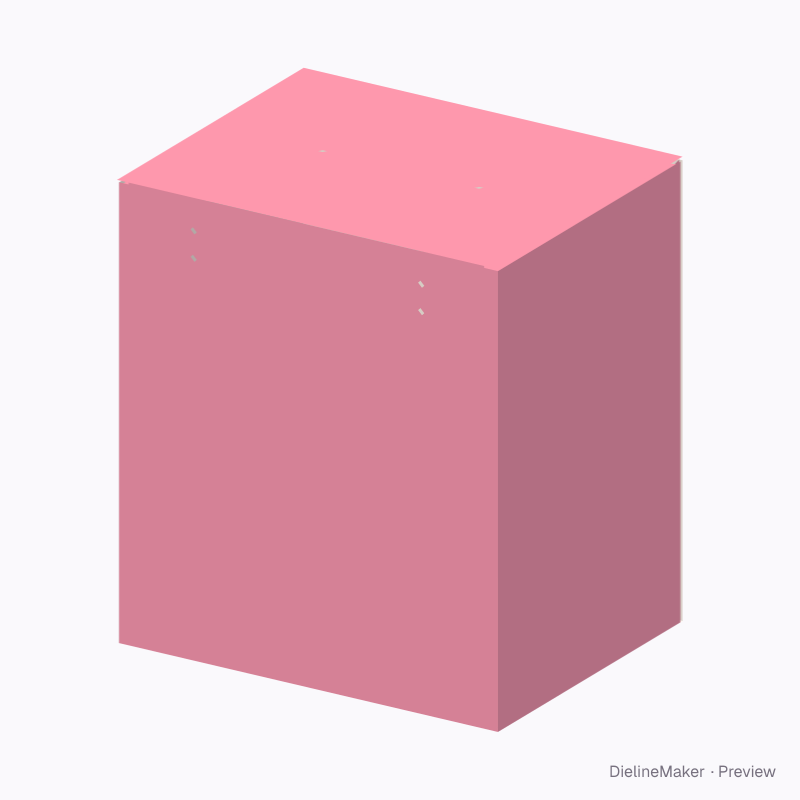

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCarriers
Tall hook-and-ribbon gift carton dieline
A pre-glued automatic base supports a back-hinged roof with a real front hook and two ribbon tie positions. A separate inner roof sheet reinforces paired carrying-cord holes. Cord and ribbons are supplied by you; tie the front closure and engage the hook before carrying. A ready-sized preset of the hook-and-ribbon carrying carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 140 × 200 mm
Outside183.2 × 143.2 × 203.2 mm
Flat blank664.8 × 487.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Inside length 180 · Inside width 140 · Inside height 200 mm
- Size range
- Inside length 100–500 · Inside width 60–300 · Inside height 80–350 mm
- Manufacturing
- 181.6 × 141.6 × 201.6 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Hook-and-ribbon automatic-base carton, Separate glue-in roof reinforcement
- Board area
- 0.245 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- FBB 400Kraft 350F-fluteE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontHook-and-ribbon automatic-base carton | 181.6 × 201.6 | L + T × H + T |
| Left sideHook-and-ribbon automatic-base carton | 141.6 × 201.6 | W + T × H + T |
| BackHook-and-ribbon automatic-base carton | 181.6 × 201.6 | L + T × H + T |
| Right sideHook-and-ribbon automatic-base carton | 140 × 201.6 | W × H + T |
| Glue flapHook-and-ribbon automatic-base carton | 20 × 201.6 | – × H + T |
| Crash-lock flap (back)Hook-and-ribbon automatic-base carton | 181.6 × 85.8 | L + T × – |
| Glued web ×2Hook-and-ribbon automatic-base carton | 100.1 × 49.6 | – |
| Bottom side flapHook-and-ribbon automatic-base carton | 141.6 × 70 | W + T × – |
| Crash-lock flap (front)Hook-and-ribbon automatic-base carton | 181.6 × 85.8 | L + T × – |
| Bottom side flapHook-and-ribbon automatic-base carton | 140 × 70 | W × – |
| Roof with separate carry-cord holesHook-and-ribbon automatic-base carton | 181.6 × 143.2 | L + T × W + 2T |
| Outside front hook and ribbon flapHook-and-ribbon automatic-base carton | 170.4 × 40 | – |
| Hook neck through front slotHook-and-ribbon automatic-base carton | 24 × 4.8 | – |
| Shouldered hook return behind front wallHook-and-ribbon automatic-base carton | 24 × 12 | – |
| Top dust flapHook-and-ribbon automatic-base carton | 141.6 × 46.3 | W + T × – |
| Top dust flapHook-and-ribbon automatic-base carton | 140 × 46.3 | W × – |
1 more panels are listed in the editor’s structure step.
