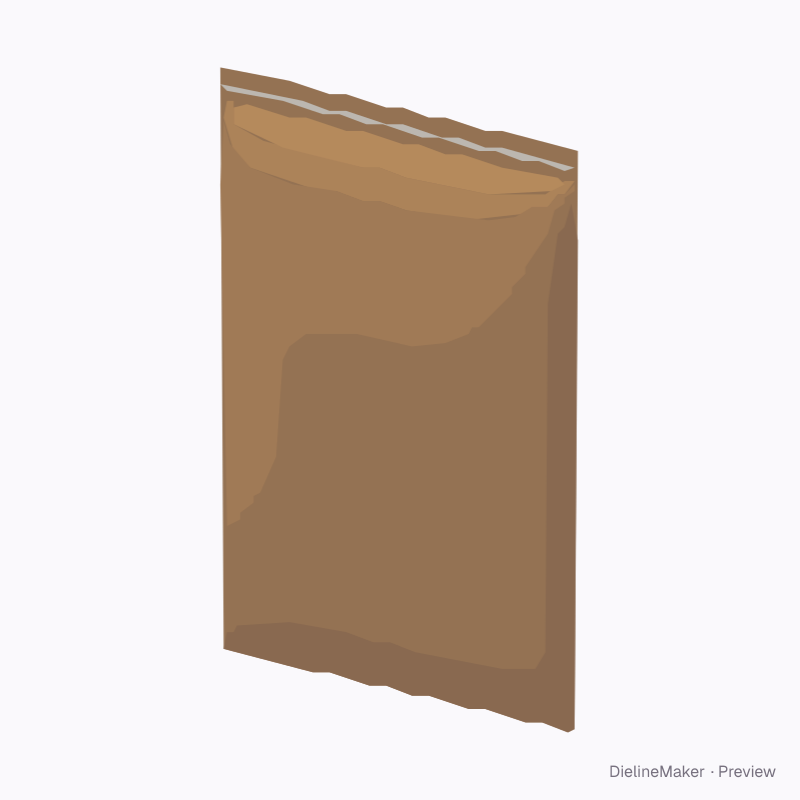

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SACK-01Labels
25 kg powder sack dieline
A filled 10–50 kg powder sack in kraft paper, white paper, woven polypropylene or film, with a sewn mouth, pasted valve or welded seams. Print both faces. A ready-sized preset of the industrial powder sack (paper / woven pp) — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside500 × 120 × 750 mm
Outside500 × 120 × 750 mm
Flat blank470 × 680 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SACK-01
- Inside size
- Face width 500 · Filled thickness 120 · Face height 750 mm
- Size range
- Face width 200–700 · Filled thickness 40–250 · Face height 250–1000 mm
- Manufacturing
- 500 × 120 × 750 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Front face, Back face
- Board area
- 0.639 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Material4 options
- Closure3 options
The industrial powder sack (paper / woven pp) family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 25 kg powder sack yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
