Parametric structureCards & tags

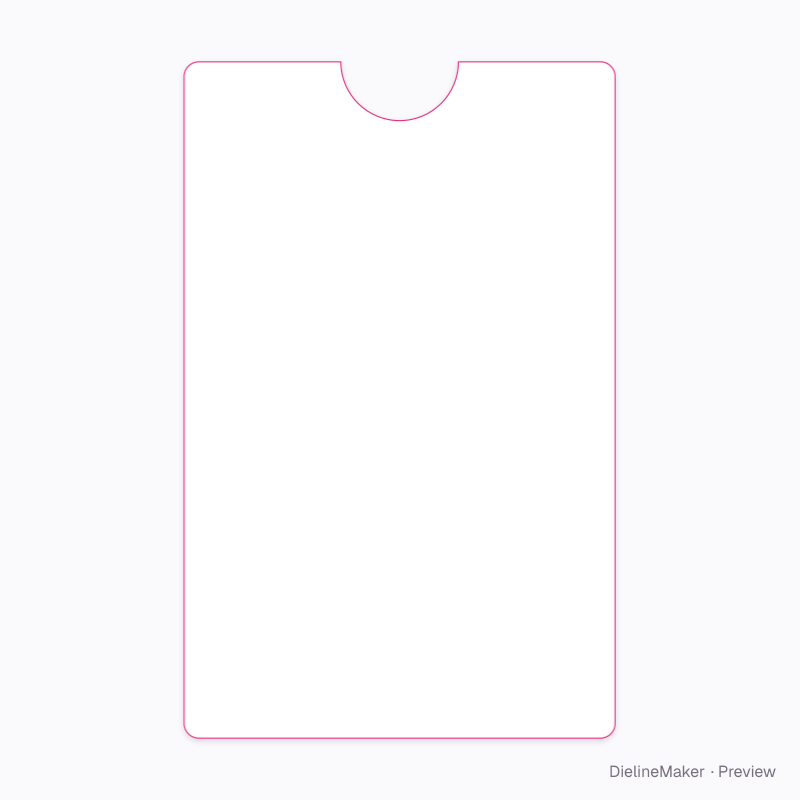

Insert card dieline
A flat card that drops into a box or mailer, with a thumb cut so it lifts out easily. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside100 × 140 mm
Outside100 × 140 mm
Flat blank100 × 140 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 100 · Height 140 mm
- Size range
- Width 40–400 · Height 40–400 mm
- Manufacturing
- 100 × 140 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.014 m² · about 36 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400SBS 300Kraft 350Black 350GD2 350Paper 170PET 0.3SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Corner radiusmm
- Thumb cut3 options
- Thumb cut radiusmm
