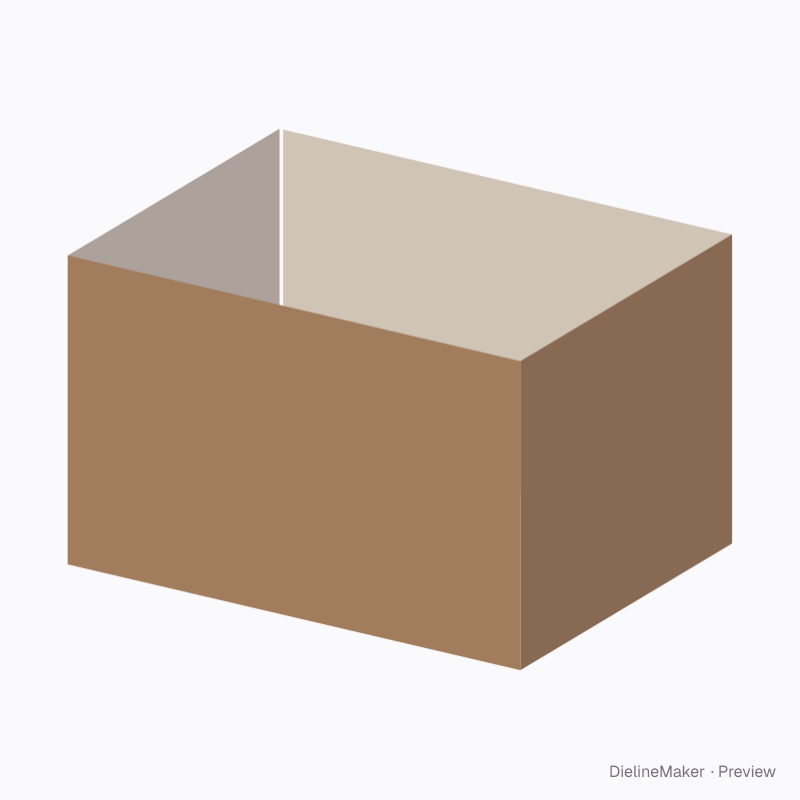

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0904Shipping

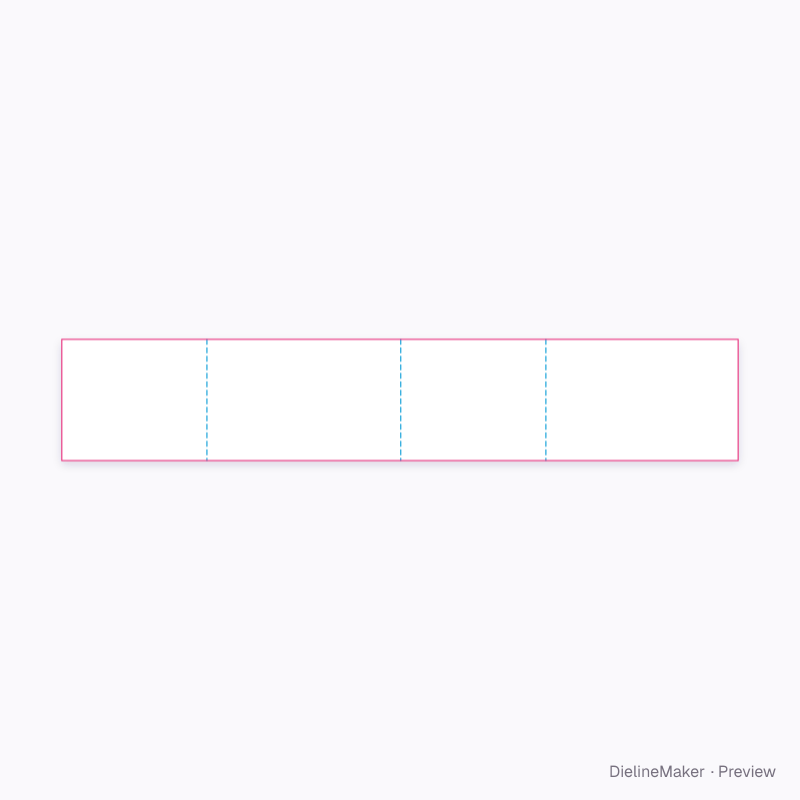

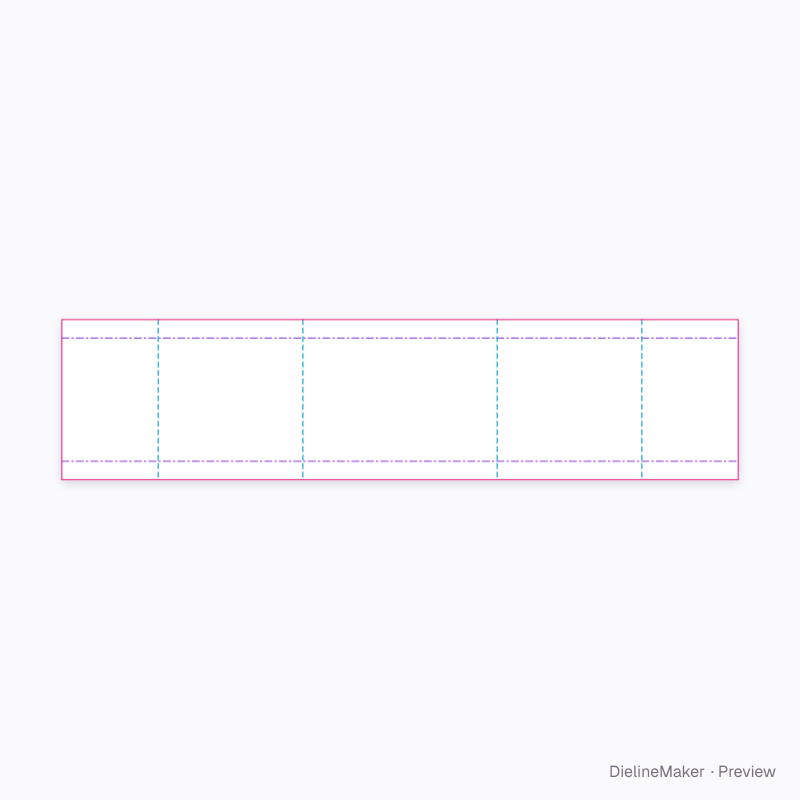

Folded case liner dieline
A creased corrugated strip that lines the walls, or the floor, walls and top, of a case: doubles the wall strength and protects the contents. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Case inside reference400 × 300 × 250 mm
Flat blank1388.8 × 249 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0904
- Case inside reference
- Case inside length 400 · Case inside width 300 · Case inside height 250 mm
- Size range
- Case inside length 60–1500 · Case inside width 50–1200 · Case inside height 40–1200 mm
- Parts
- One blank
- Board area
- 0.346 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB doubleF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Liner10 options
