US letter landscape open magazine dieline
279.4 × 215.9 mm finished format with editable dimensions and artwork. A ready-sized preset of the open magazine — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside279.4 × 215.9 mm
Outside279.4 × 215.9 mm
Flat blank558.8 × 215.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Page width 279.4 · Page height 215.9 mm
- Size range
- Page width 75–450 · Page height 100–650 mm
- Manufacturing
- 279.4 × 215.9 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Outer sheet / cover, Inner sheet 2, Inner sheet 3, Inner sheet 4
- Board area
- 0.483 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for

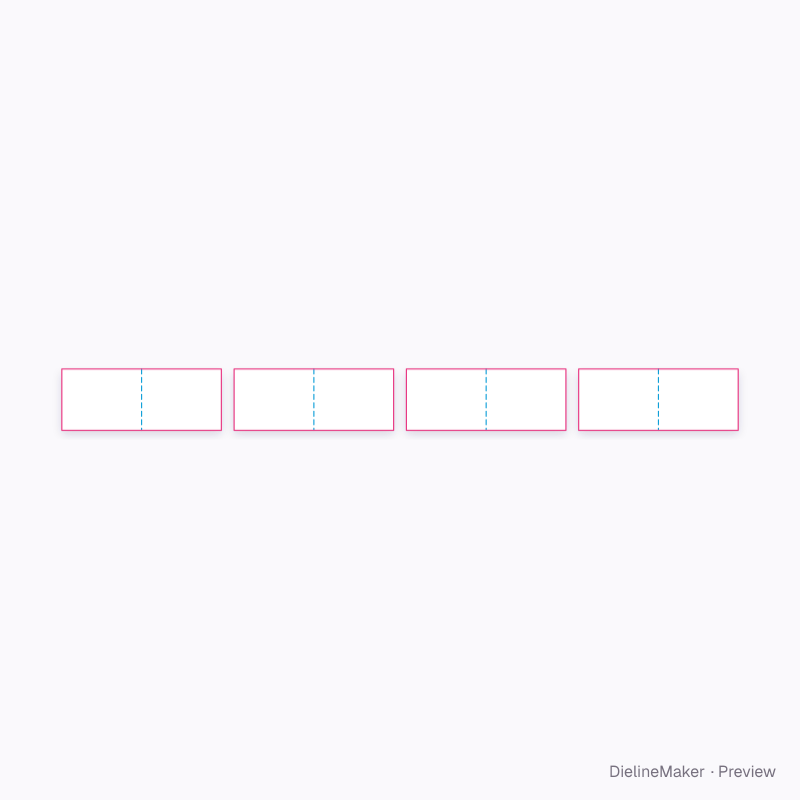

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Right page / frontOuter sheet / cover | 279.4 × 215.9 | L × H |
| Left page / backOuter sheet / cover | 279.4 × 215.9 | L × H |
| Right page / frontInner sheet 2 | 279.4 × 215.9 | L × H |
| Left page / backInner sheet 2 | 279.4 × 215.9 | L × H |
| Right page / frontInner sheet 3 | 279.4 × 215.9 | L × H |
| Left page / backInner sheet 3 | 279.4 × 215.9 | L × H |
| Right page / frontInner sheet 4 | 279.4 × 215.9 | L × H |
| Left page / backInner sheet 4 | 279.4 × 215.9 | L × H |
