Preset

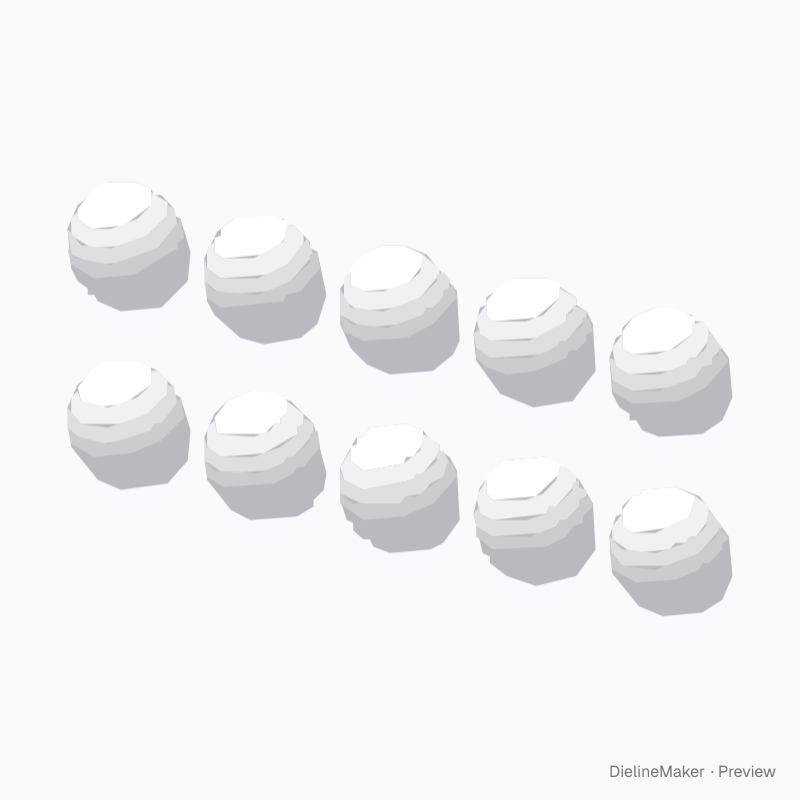

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-MED-BLISTER-01Labels
Medication blister strip dieline
A sealed blister strip of formed pockets for tablets or capsules with a printed push-through lidding foil and decorated front. Rows, columns, pocket shape and tear perforations are adjustable. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside95 × 50 mm
Outside95 × 50 mm
Flat blank95 × 50 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-MED-BLISTER-01
- Inside size
- Strip width 95 · Strip height 50 mm
- Size range
- Strip width 30–200 · Strip height 25–150 mm
- Manufacturing
- 95 × 50 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Front face (between pockets), Lidding foil (push-through side)
- Board area
- 0.009 m² · about 126 up on a 720 × 1020 mm sheet
- Default board
- Matte label stock · 0.08 mm caliper
- Board options
- Label matteLabel glossMet PET/PE
- Good for

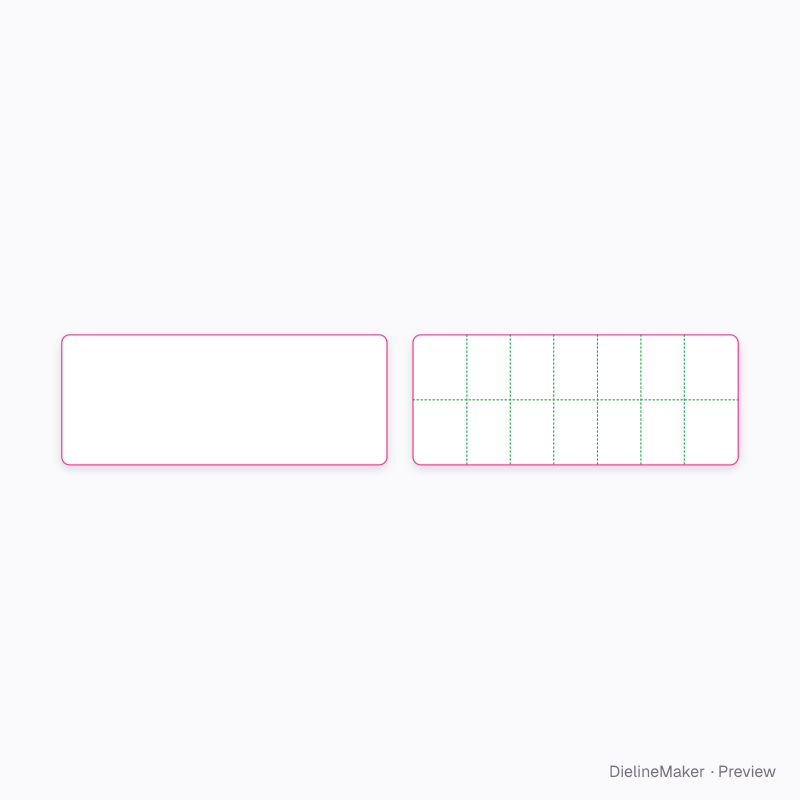

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Perforation
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Rowscount
- Pockets per rowcount
- Pocket shape3 options
- Pocket widthmm
- Pocket lengthmm
- Tear perforationson / off
- Corner radiusmm
- Tablet colour5 options

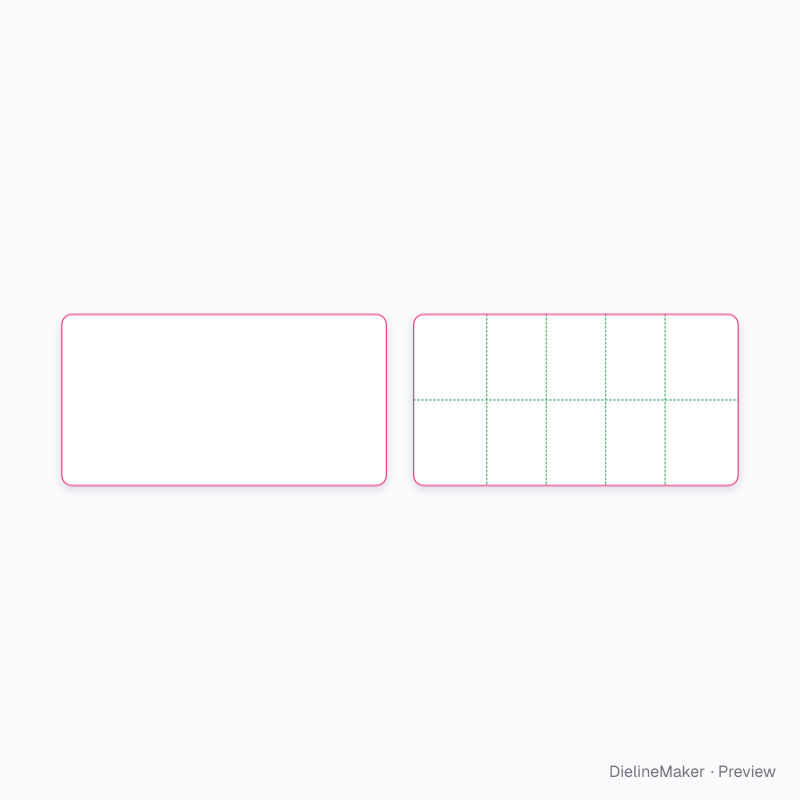

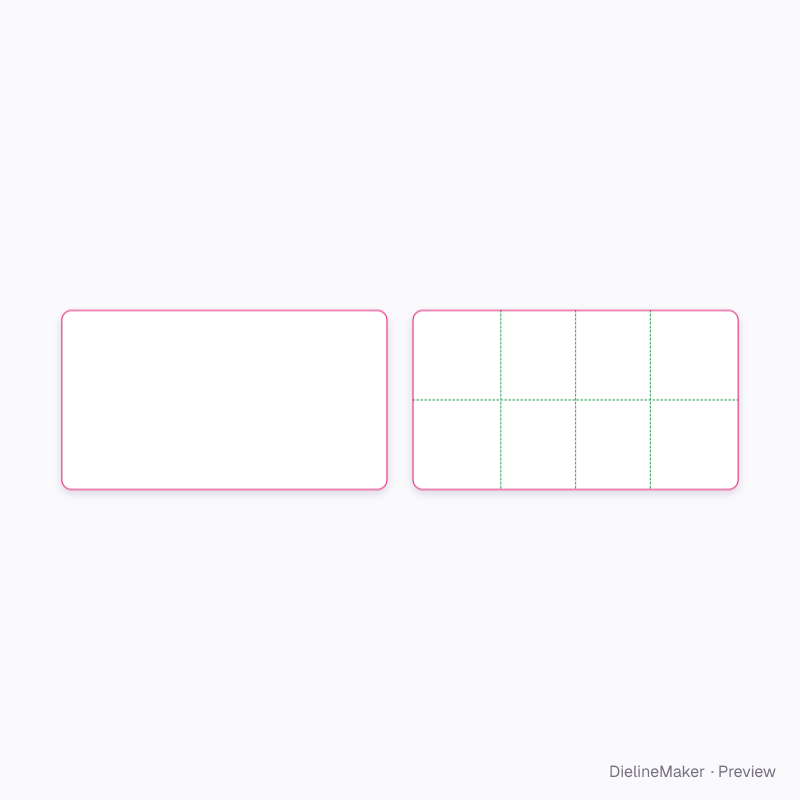

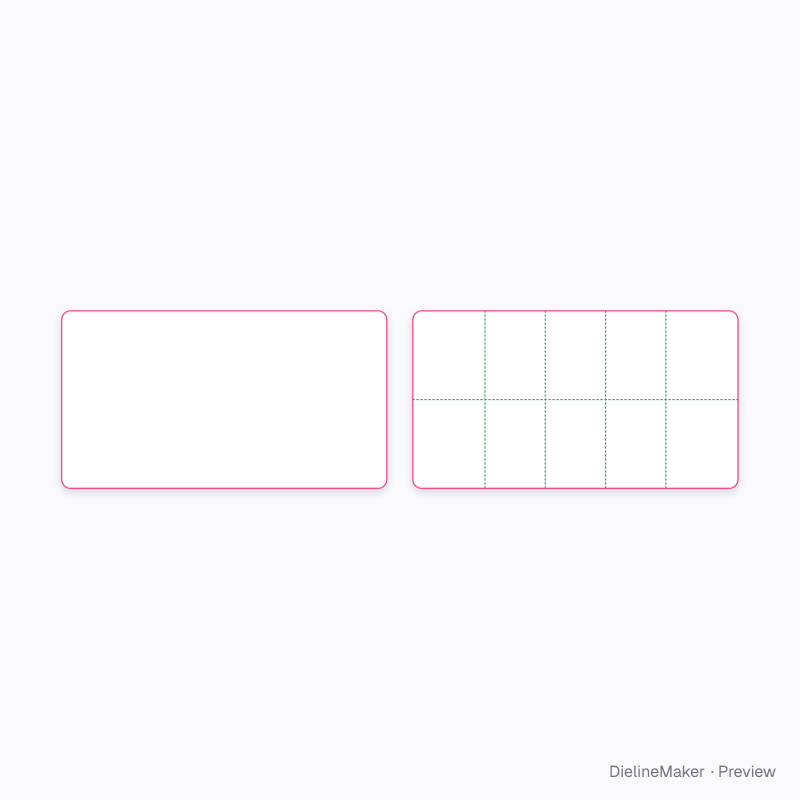

Ready-sized medication blister strip presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset
Preset

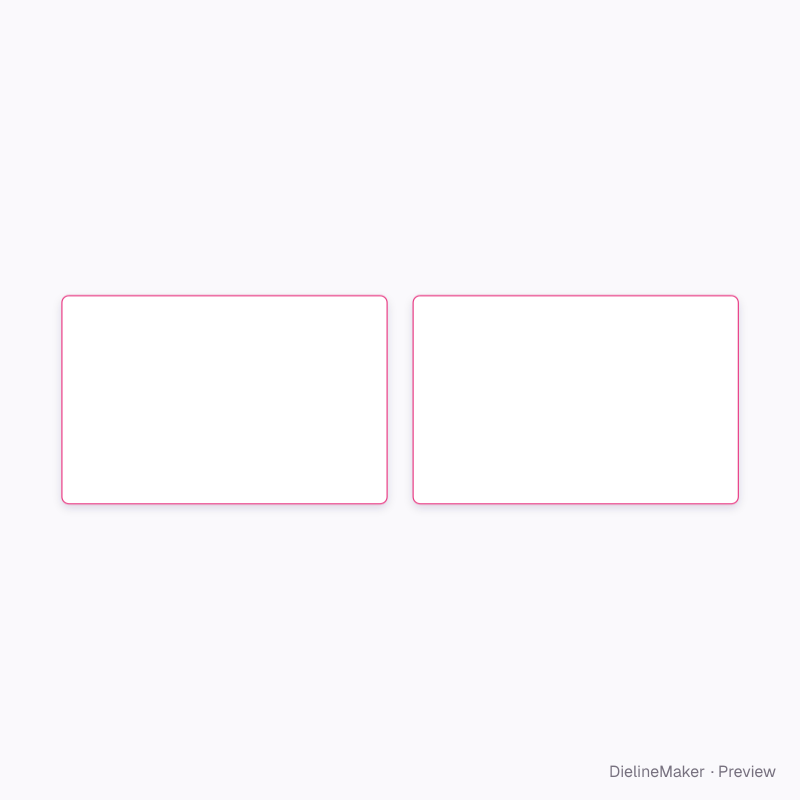

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this medication blister strip yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
