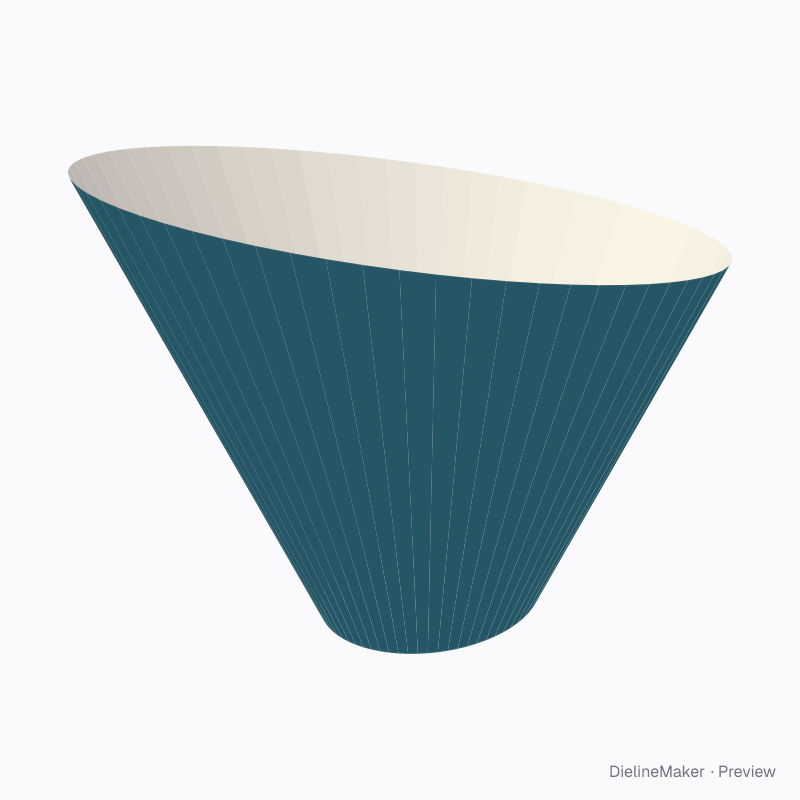

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Slanted shade blank dieline
A cone section cut by two independently angled planes. The radial sector follows the original cone-plane intersections; virtual facets approximate the rolled surface. A ready-sized preset of the mitered paper cone — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 180 mm
Outside90 × 180 mm
Flat blank336.7 × 558.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Tip cut from apex 90 · Axis span 180 mm
- Size range
- Tip cut from apex 0–500 · Axis span 20–700 mm
- Manufacturing
- 90 × 180 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.124 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 350Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Cone apex angle°
- Top miter angle°
- Bottom miter angle°
- Glue flap sizemm
The mitered paper cone family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this slanted shade blank yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
