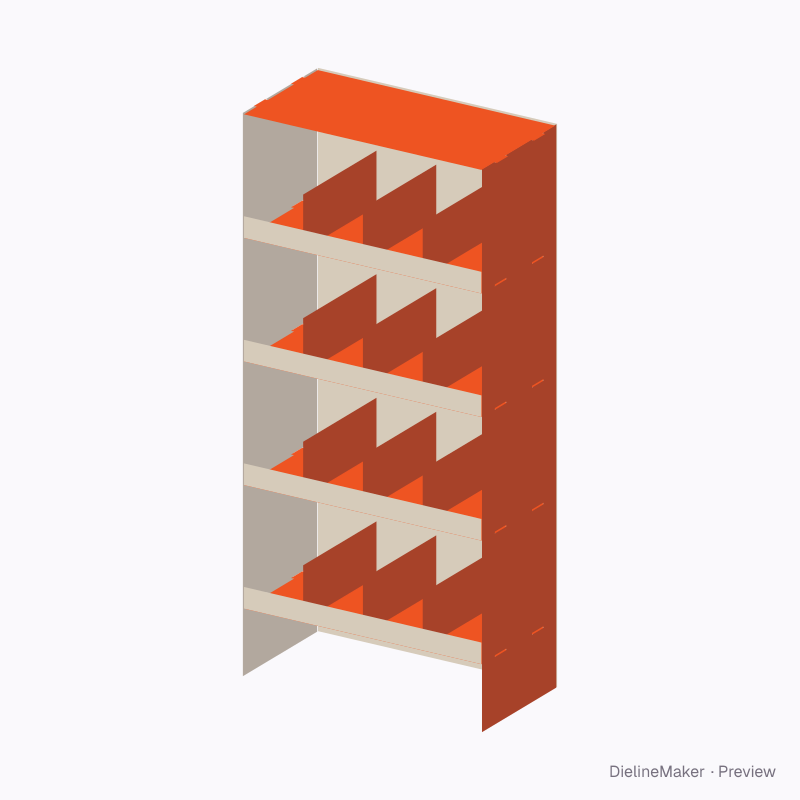

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SHELF-COMPARTMENTS-01Display
Multi-level compartment display dieline
A corrugated shelf display built from sides, a back and lugged shelves, with options for a sloping shell, cupboard doors, scalloped sides, a central partition, wedge lugs and product locator decks. A ready-sized preset of the modular shelf display — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside600 × 300 × 1300 mm
Outside606.4 × 306.4 × 1306.4 mm
Flat blank603.2 × 1300 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SHELF-COMPARTMENTS-01
- Inside size
- Width 600 · Depth 300 · Height 1300 mm
- Size range
- Width 250–1200 · Depth 150–600 · Height 400–2000 mm
- Manufacturing
- 603.2 × 303.2 × 1303.2 mm score to score · inside vs outside sizes
- Parts
- 20 parts — Left side, Right side, Back panel, Shelf, Shelf, Shelf, Shelf, Top, Compartment divider, Compartment divider, Compartment divider, Compartment divider, Compartment divider, Compartment divider, Compartment divider, Compartment divider, Compartment divider, Compartment divider, Compartment divider, Compartment divider
- Board area
- 3.039 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SHELF-COMPARTMENTS-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Side panelLeft side | 300 × 1300 | W × H |
| Side panelRight side | 300 × 1300 | W × H |
| BackBack panel | 603.2 × 1300 | L + T × H |
| ShelfShelf | 613.4 × 298 | – |
| Shelf lipShelf | 599 × 50 | – |
| ShelfShelf | 613.4 × 298 | – |
| Shelf lipShelf | 599 × 50 | – |
| ShelfShelf | 613.4 × 298 | – |
| Shelf lipShelf | 599 × 50 | – |
| ShelfShelf | 613.4 × 298 | – |
| Shelf lipShelf | 599 × 50 | – |
| TopTop | 613.4 × 298 | – |
| Compartment dividerCompartment divider | 296 × 128.3 | – |
| Compartment dividerCompartment divider | 296 × 128.3 | – |
| Compartment dividerCompartment divider | 296 × 128.3 | – |
| Compartment dividerCompartment divider | 296 × 128.3 | – |
8 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 14 options; the template and 3D preview follow each change.
- Shelvescount
- Base bay heightmm
- Shelf lipmm
- Front slope°
- Double-wall sideson / off
- Lower cupboard doorson / off
- Side front edge2 options
- Central partitionon / off
- Shelf lugs2 options
- Locator holes per rowcount
- Locator rowscount
- Compartment dividers per shelfcount
- Framed frontmm
- Locator diametermm
