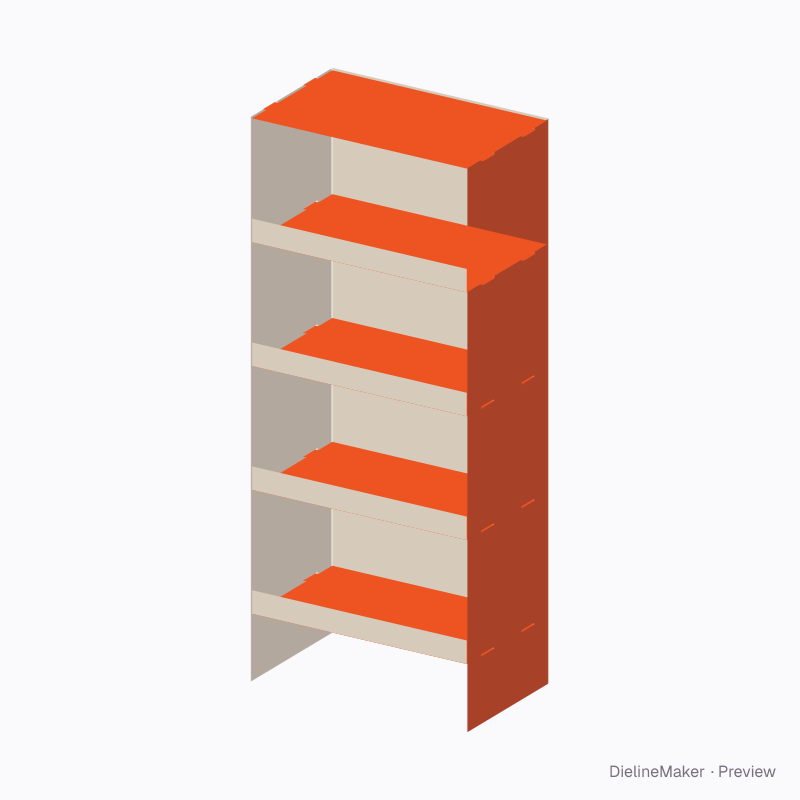

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SHELF-DISPLAY-KIT-01Display
Four-shelf display dieline
A corrugated shelf display built from sides, a back and lugged shelves, with options for a sloping shell, cupboard doors, scalloped sides, a central partition, wedge lugs and product locator decks. A ready-sized preset of the modular shelf display — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside500 × 300 × 1200 mm
Outside506.4 × 306.4 × 1206.4 mm
Flat blank503.2 × 1200 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SHELF-DISPLAY-KIT-01
- Inside size
- Width 500 · Depth 300 · Height 1200 mm
- Size range
- Width 250–1200 · Depth 150–600 · Height 400–2000 mm
- Manufacturing
- 503.2 × 303.2 × 1203.2 mm score to score · inside vs outside sizes
- Parts
- 8 parts — Left side, Right side, Back panel, Shelf, Shelf, Shelf, Shelf, Top
- Board area
- 2.174 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SHELF-DISPLAY-KIT-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Side panelLeft side | 300 × 1200 | W × H |
| Side panelRight side | 300 × 1200 | W × H |
| BackBack panel | 503.2 × 1200 | L + T × H |
| ShelfShelf | 513.4 × 298 | – |
| Shelf lipShelf | 499 × 50 | – |
| ShelfShelf | 513.4 × 298 | – |
| Shelf lipShelf | 499 × 50 | – |
| ShelfShelf | 513.4 × 298 | – |
| Shelf lipShelf | 499 × 50 | – |
| ShelfShelf | 513.4 × 298 | – |
| Shelf lipShelf | 499 × 50 | – |
| TopTop | 513.4 × 298 | – |
