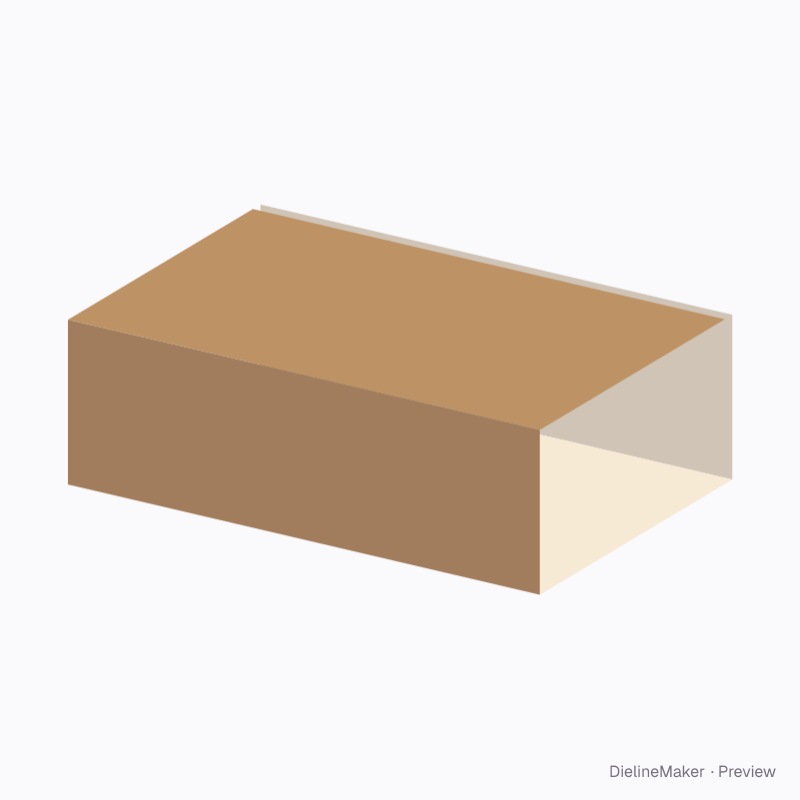

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-BUFFER-LINER-01Shipping
Four-panel wrap liner dieline
A scored corrugated strip that folds round a product as a U, a flanged U channel or an open four-sided liner. A ready-sized preset of the multi-crease buffer liner — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside250 × 160 × 80 mm
Outside256.4 × 166.4 × 86.4 mm
Flat blank250 × 480 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-BUFFER-LINER-01
- Inside size
- Length 250 · Inside width 160 · Leg height 80 mm
- Size range
- Length 50–1200 · Inside width 20–600 · Leg height 15–400 mm
- Manufacturing
- 253.2 × 163.2 × 83.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.120 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KEB doubleF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-BUFFER-LINER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Liner base | 250 × 163.2 | L × W + T |
| Liner leg ×2 | 250 × 80 | L × H |
| Liner top | 250 × 156.8 | L × W − T |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Profile3 options
- Angled end flapson / off
The multi-crease buffer liner family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this four-panel wrap liner yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
