Preview image

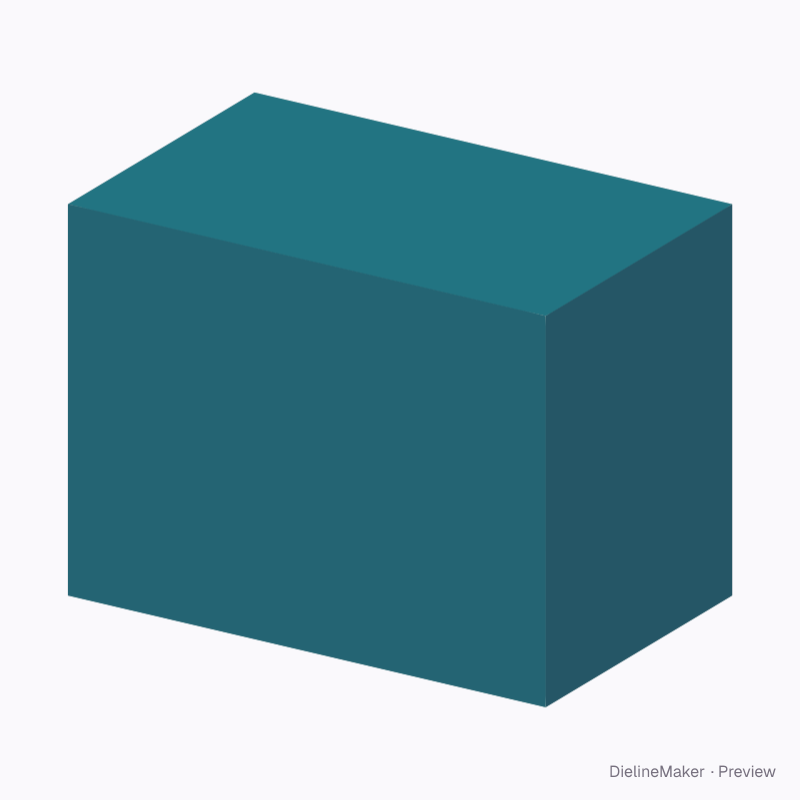

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShipping
Large paper display block dieline
Six separate face sheets with one hand-glue tab per joining edge, for making a large paper box from smaller printer sheets. The closed preview assembles all six faces. Validate stock and joining strength for your intended use. A ready-sized preset of the six-sheet joined paper box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 250 × 300 mm
Outside400 × 250 × 300 mm
Flat blank410 × 310 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Box length 400 · Box width 250 · Height 300 mm
- Size range
- Box length 30–800 · Box width 30–800 · Height 30–800 mm
- Manufacturing
- 400 × 250 × 300 mm score to score · inside vs outside sizes
- Parts
- 6 parts — Face sheet 1, Face sheet 2, Face sheet 3, Face sheet 4, Face sheet 5, Face sheet 6
- Board area
- 0.619 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- Paper 170SBS 300Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Face 1Face sheet 1 | 250 × 400 | W × L |
| Glue to face 2Face sheet 1 | 250 × 10 | W × – |
| Glue to face 3Face sheet 1 | 10 × 400 | – × L |
| Glue to face 4Face sheet 1 | 10 × 400 | – × L |
| Glue to face 5Face sheet 1 | 250 × 10 | W × – |
| Face 2Face sheet 2 | 300 × 250 | H × W |
| Glue to face 3Face sheet 2 | 300 × 10 | H × – |
| Glue to face 4Face sheet 2 | 300 × 10 | H × – |
| Glue to face 6Face sheet 2 | 10 × 250 | – × W |
| Face 3Face sheet 3 | 400 × 300 | L × H |
| Glue to face 5Face sheet 3 | 10 × 300 | – × H |
| Glue to face 6Face sheet 3 | 400 × 10 | L × – |
| Face 4Face sheet 4 | 300 × 400 | H × L |
| Glue to face 5Face sheet 4 | 300 × 10 | H × – |
| Glue to face 6Face sheet 4 | 10 × 400 | – × L |
| Face 5Face sheet 5 | 300 × 250 | – |
2 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Joining tab depthmm
- Edge joint2 options
The six-sheet joined paper box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this large paper display block yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
