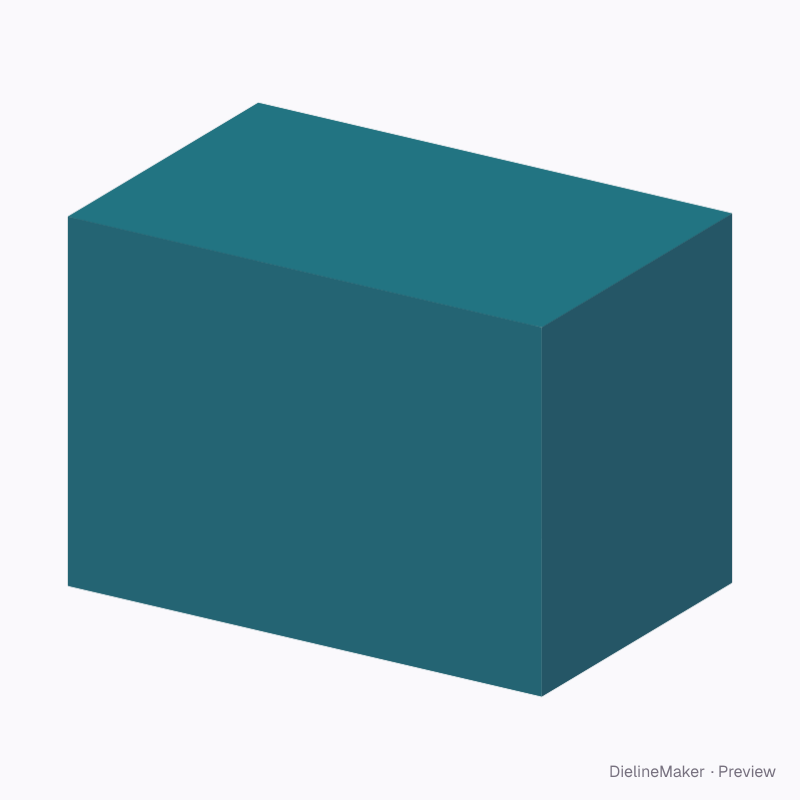

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShipping
Six-sheet rectangular box dieline
Six separate face sheets with one hand-glue tab per joining edge, for making a large paper box from smaller printer sheets. The closed preview assembles all six faces. Validate stock and joining strength for your intended use. A ready-sized preset of the six-sheet joined paper box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside280 × 180 × 200 mm
Outside280 × 180 × 200 mm
Flat blank290 × 210 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Box length 280 · Box width 180 · Height 200 mm
- Size range
- Box length 30–800 · Box width 30–800 · Height 30–800 mm
- Manufacturing
- 280 × 180 × 200 mm score to score · inside vs outside sizes
- Parts
- 6 parts — Face sheet 1, Face sheet 2, Face sheet 3, Face sheet 4, Face sheet 5, Face sheet 6
- Board area
- 0.305 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300Kraft 350SBS 18 pt
- Good for

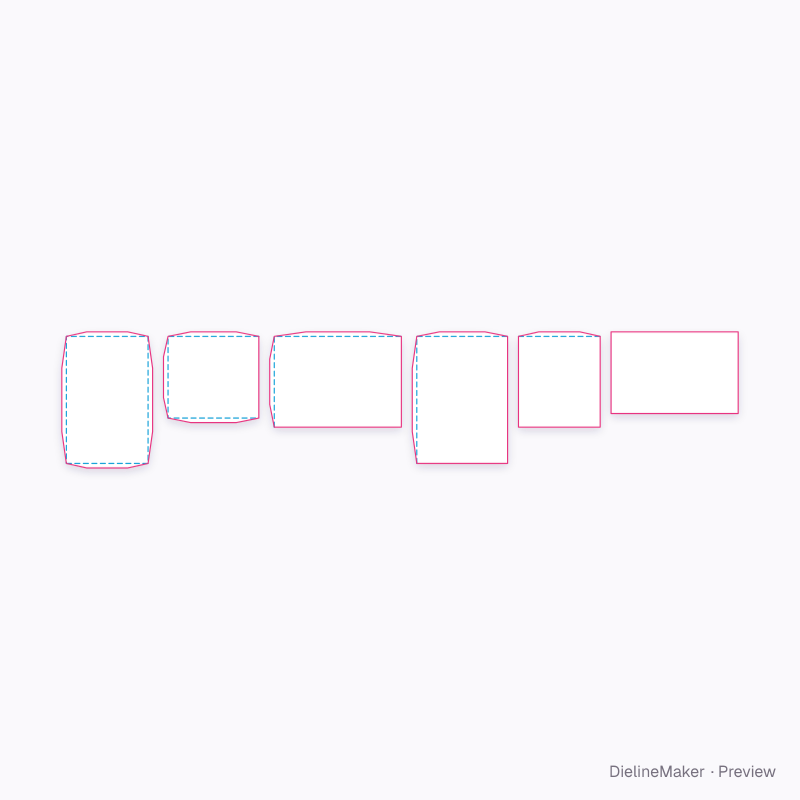

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Face 1Face sheet 1 | 180 × 280 | – |
| Glue to face 2Face sheet 1 | 180 × 10 | – |
| Glue to face 3Face sheet 1 | 10 × 280 | – |
| Glue to face 4Face sheet 1 | 10 × 280 | – |
| Glue to face 5Face sheet 1 | 180 × 10 | – |
| Face 2Face sheet 2 | 200 × 180 | H × W |
| Glue to face 3Face sheet 2 | 200 × 10 | H × – |
| Glue to face 4Face sheet 2 | 200 × 10 | H × – |
| Glue to face 6Face sheet 2 | 10 × 180 | – × W |
| Face 3Face sheet 3 | 280 × 200 | L × H |
| Glue to face 5Face sheet 3 | 10 × 200 | – × H |
| Glue to face 6Face sheet 3 | 280 × 10 | L × – |
| Face 4Face sheet 4 | 200 × 280 | H × L |
| Glue to face 5Face sheet 4 | 200 × 10 | H × – |
| Glue to face 6Face sheet 4 | 10 × 280 | – × L |
| Face 5Face sheet 5 | 180 × 200 | W × H |
2 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Joining tab depthmm
- Edge joint2 options
The six-sheet joined paper box family
The same structure with sizes, boards and options set for a use.
