A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementDisplay

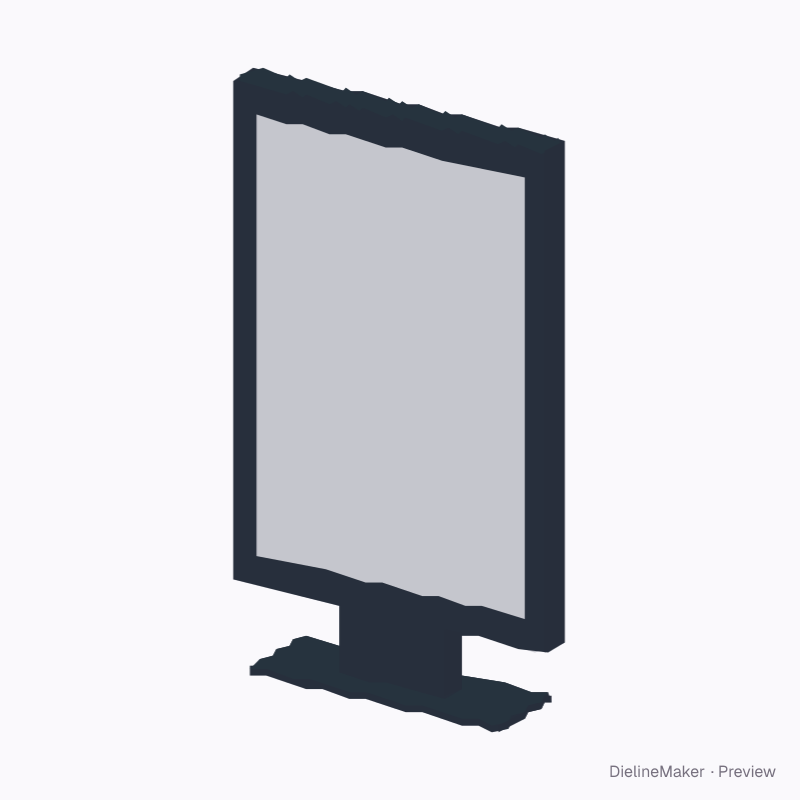

Double-sided Citylight MUPI graphic template
An enclosed portrait MUPI case on a central pedestal and ground base, with glazing, side-hinged doors and independent front/reverse poster sheets. Exports give graphic placements and frame-covered margins. Housing, lighting, foundation and fabrication require the manufacturer’s drawings. A ready-sized preset of the freestanding mupi lightbox — adjust the object dimensions and decoration area to preview your artwork at size.
Object size1185 × 1750 mm
Artwork area1185 × 1750 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Poster / graphic width 1185 · Poster / graphic height 1750 mm
- Size range
- Poster / graphic width 500–1500 · Poster / graphic height 700–2400 mm
- Parts
- 2 parts — front poster sheet / graphic, back poster sheet / graphic
- Artwork area
- 4.147 m²
- Good for

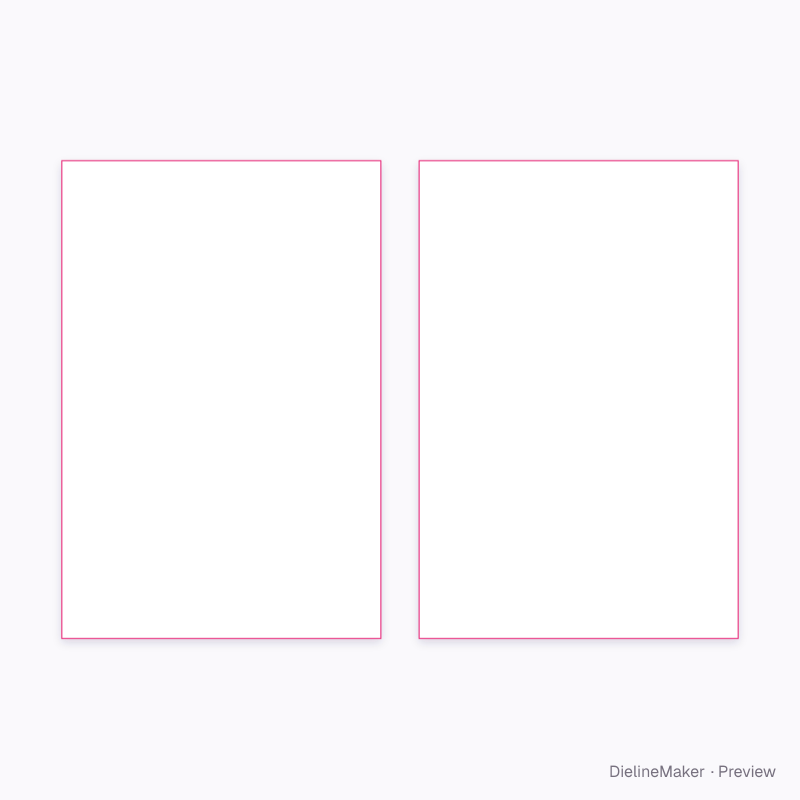

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.

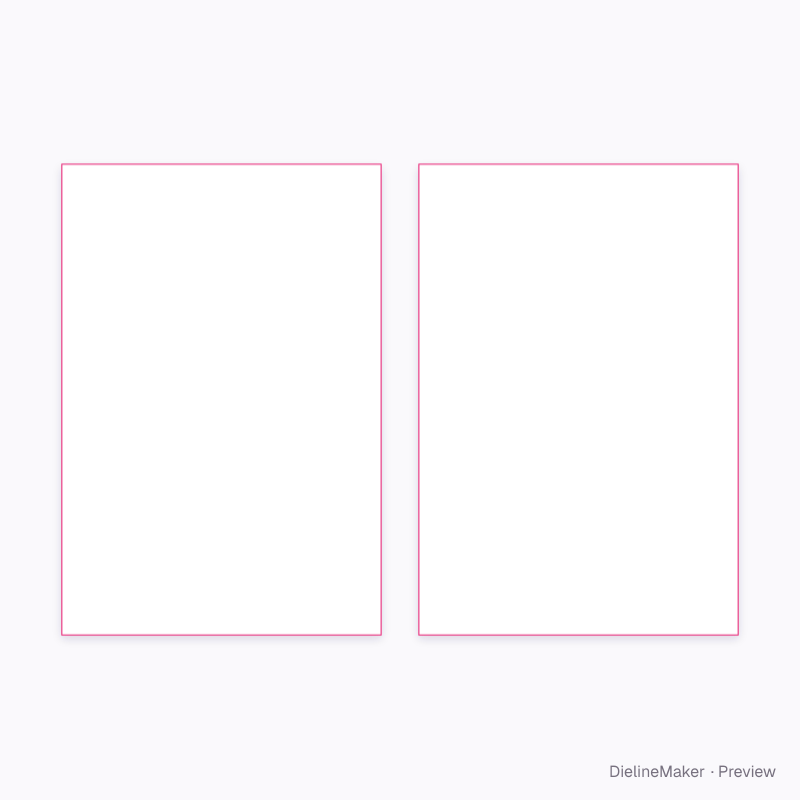

- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 7 options; the template and 3D preview follow each change.
- Independent reverse posteron / off
- Frame covers each sidemm
- Frame covers top / bottommm
- Copy inset inside openingmm
- Hardware colour5 options
- Illuminated previewon / off
- Front glazing-door angle°
The freestanding mupi lightbox family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this double-sided citylight mupi yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
