A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementDisplay

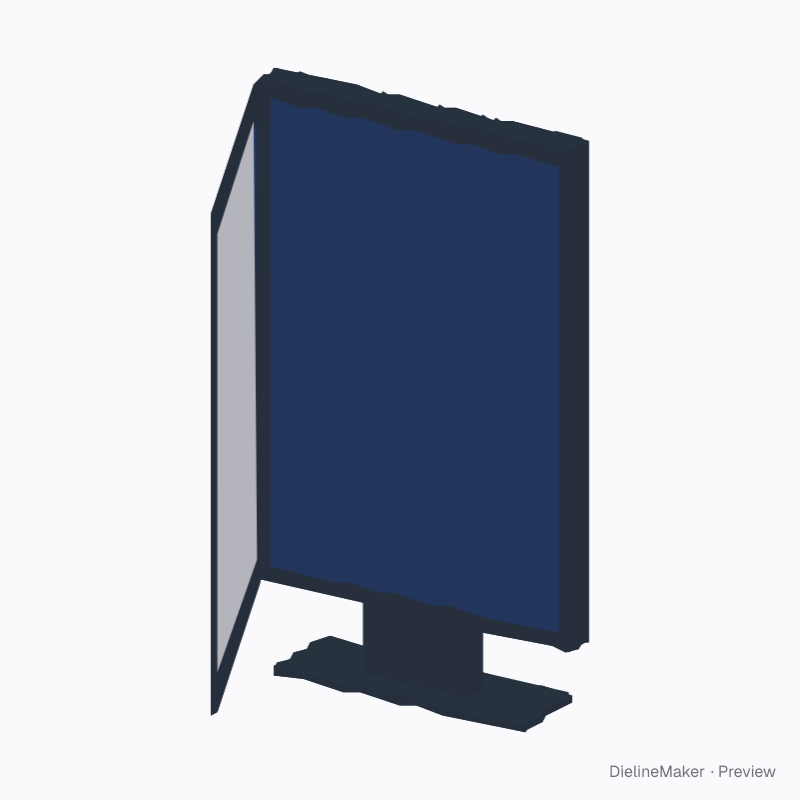

MUPI with opened glazing door graphic template
An enclosed portrait MUPI case on a central pedestal and ground base, with glazing, side-hinged doors and independent front/reverse poster sheets. Exports give graphic placements and frame-covered margins. Housing, lighting, foundation and fabrication require the manufacturer’s drawings. A ready-sized preset of the freestanding mupi lightbox — adjust the object dimensions and decoration area to preview your artwork at size.
Object size1185 × 1750 mm
Artwork area1185 × 1750 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Poster / graphic width 1185 · Poster / graphic height 1750 mm
- Size range
- Poster / graphic width 500–1500 · Poster / graphic height 700–2400 mm
- Parts
- 2 parts — front poster sheet / graphic, back poster sheet / graphic
- Artwork area
- 4.147 m²
- Good for

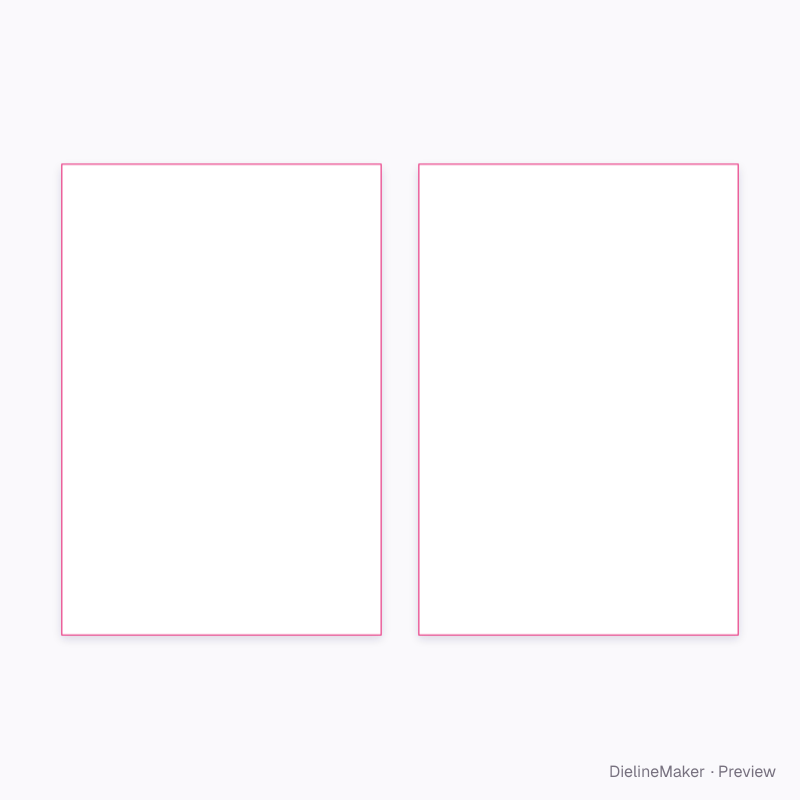

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 7 options; the template and 3D preview follow each change.
- Independent reverse posteron / off
- Frame covers each sidemm
- Frame covers top / bottommm
- Copy inset inside openingmm
- Hardware colour5 options
- Illuminated previewon / off
- Front glazing-door angle°
The freestanding mupi lightbox family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this mupi with opened glazing door yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
