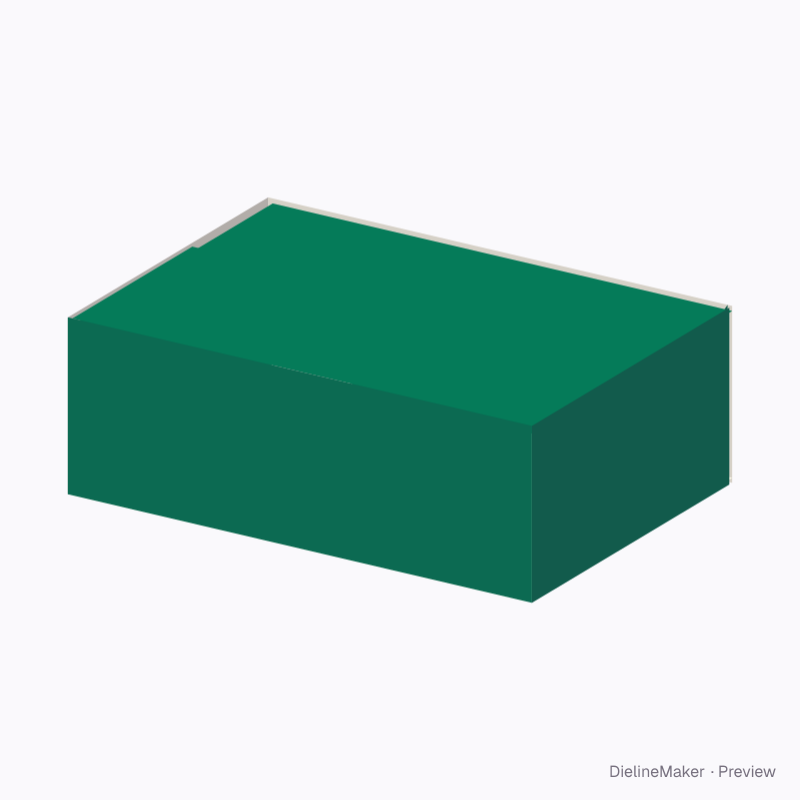

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0202Shipping
Shallow product carton — Overlap slotted box dieline
Editable 320 × 220 × 100 mm starting point using overlap slotted box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the overlap slotted box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside320 × 220 × 100 mm
Outside326.4 × 226.4 × 119.2 mm
Flat blank1121.6 × 380 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0202
- Inside size
- Length 320 · Width 220 · Height 100 mm
- Size range
- Length 80–1200 · Width 60–1000 · Height 40–1200 mm
- Manufacturing
- 323.2 × 223.2 × 112.8 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.412 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0202 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 323.2 × 112.8 | L + T × H + 4T |
| Left side | 223.2 × 112.8 | W + T × H + 4T |
| Back | 323.2 × 112.8 | L + T × H + 4T |
| Right side | 220 × 112.8 | W × H + 4T |
| Glue flap | 32 × 112.8 | – |
| Bottom outer flap | 320 × 133.6 | L × – |
| Bottom inner flap ×2 | 216.8 × 133.6 | W − T × – |
| Bottom outer flap | 316.8 × 133.6 | L − T × – |
| Top outer flap | 320 × 133.6 | L × – |
| Top inner flap ×2 | 216.8 × 133.6 | W − T × – |
| Top outer flap | 316.8 × 133.6 | L − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Flap overlapmm
- Hand holeson / off
